Precautions

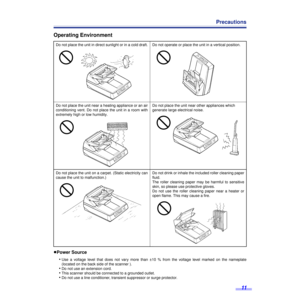

Operating Environment
³³ ³ ³
Power Source
•
Use a voltage level that does not vary more than ±10 % from the voltage level marked on the nameplate
(located on the back side of the scanner ).
•Do not use an extension cord.
•This scanner should be connected to a grounded outlet.
•Do not use a line conditioner, transient suppressor or surge protector. Do not place the unit in direct sunlight or in a cold draft. Do not operate or place the unit in a vertical position.
Do not place the unit near...

12
Precautions
ºº º ºCD-ROM

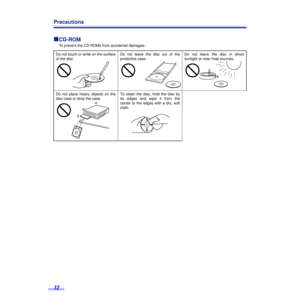

To prevent the CD-ROMs from accidental damages:
Do not touch or write on the surface
of the disc.Do not leave the disc out of the
protective case.Do not leave the disc in direct
sunlight or near heat sources.
Do not place heavy objects on the
disc case or drop the case.To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.

13

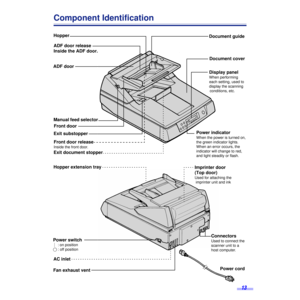

Component Identification

Hopper
ADF door release
Inside the ADF door.
ADF door
Manual feed selector
Front door
Exit substopperDocument guide
Display panel
When performing
each setting, used to
display the scanning
conditions, etc.
Power indicator
When the power is turned on,
the green indicator lights.
When an error occurs, the
indicator will change to red,
and light steadily or flash.
Front door release
Inside the front door.
Exit document stopperDocument cover
AC inlet
Fan exhaust...

Component Identification
14
Component Identification

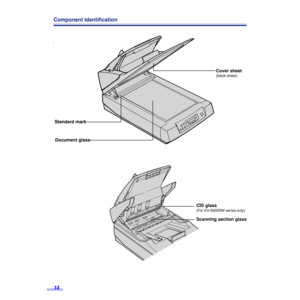

Standard mark
Document glass
Cover sheet
(black sheet)
CIS glass
(For KV-S6055W series only)
Scanning section glass

15
Display Panel Instructions
The required settings must be selected prior to scanning.
Information and conditions are shown on the LCD (Liquid Crystal Display).

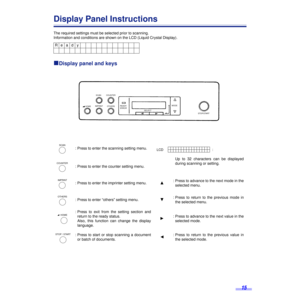

ºº º ºDisplay panel and keys
Ready
: Press to enter the scanning setting menu.
Up to 32 characters can be displayed
during scanning or setting.
: Press to enter the counter setting menu.
: Press to enter the imprinter setting menu.3: Press to advance to the next mode in the
selected menu.
: Press to enter “others” setting menu.4: Press to return...

16
Display Panel Instructions

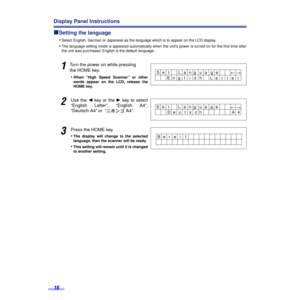

ºº º ºSetting the language
•Select English, German or Japanese as the language which is to appear on the LCD display.
•The language setting mode is appeared automatically when the unit’s power is turned on for the first time after
the unit was purchased. English is the default language.
1Turn the power on while pressing
the HOME key.
•
When “High Speed Scanner” or other
words appear on the LCD, release the
HOME key.
2Use the 2 key or the 1 key to select
“English Letter”,...

17
Display Panel Instructions
ºº º ºSetting the scanner
The following parameters can be customized using the scanner’s various setting modes. If the application
software provides these features, it will be supported by the scanner.
Scan menu
No.ItemLCDContentPage
01 Front side brightness F. BrightnessSelection for density when scanning the front
side of a document.
22 02
Front side image emphasisF. EmphasisSelection for emphasis when scanning the
front side of a document.
03 Front side contrast F....

18
Display Panel Instructions
Scan menu
No.ItemLCDContentPage
16 Feed speed Feed SpeedSelection for feed speed when a document is
being scanned.
25
17 Setting the “Detect Skew” Detect Skew Selects whether skew is detected or not
detected.
18 Scanning method Scan MethodSelection of documents to be scanned.
This includes documents placed in the ADF
and documents placed on the flatbed glass
(document glass).
26 19Save scanning settings
(Select memory)Save Setting Selects the memory where the conditions are...

19
Display Panel Instructions
Counter menu
Imprinter menu
Depending on the setting on the “Counter setting menu”, the page number of the scanned document will be
printed. The imprint unit (KV-SS010) is required. If a host computer is connected, there may be settings required
on the host computer as well.
No.ItemLCDContentPage
01Select the counter
displayed on the
LCD.Disp. CounterSelection to choose to display the cleared counter
(scan counter) after scanning one time or to display the
user set counter...

20
Display Panel Instructions
Others menu
No.ItemLCD ContentPage
01 Checking the version VersionDisplays the firmware version of the mechanical
control, pre-imprinter or post-imprinter.
If an optional imprinter is not installed, the imprinter
version will not be displayed.
30 02 Setting the buzzer BuzzerSelects whether the buzzer is turned on or off.
If selection is in the “ON” position:
When pressing a key, one short beep will be heard.
When there is an error, 5 short beep will be heard.
When scanning...
