Panasonic High Speed Scanner Kvs6050w Operating Instructions

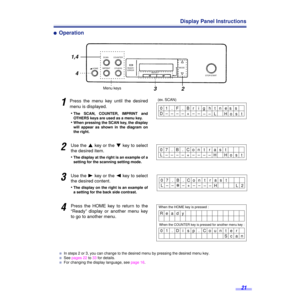

21
Display Panel Instructions
´Operation
1Press the menu key until the desired
menu is displayed.
•
The SCAN, COUNTER, IMPRINT and
OTHERS keys are used as a menu key.
•When pressing the SCAN key, the display
will appear as shown in the diagram on
the right.
2Use the 3 key or the 4 key to select
the desired item.
•
The display at the right is an example of a
setting for the scanning setting mode.
3Use the 1 key or the 2 key to select
the desired content.
•
The display on the right is an example of
a...

22
Display Panel Instructions

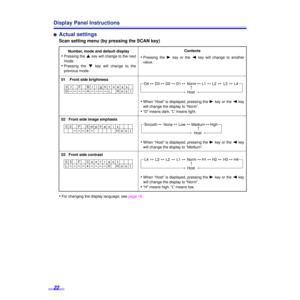

´Actual settings
Scan setting menu (by pressing the SCAN key)
•
For changing the display language, see page 16. Number, mode and default display
•Pressing the 3 key will change to the next
mode.
•Pressing the 4 key will change to the
previous mode.Contents
•Pressing the 1 key or the 2 key will change to another
value.
01    Front side brightness
•When “Host” is displayed, pressing the 1 key or the 2 key
will change the display to “Norm”.
•“D” means dark. “L” means light.
02...

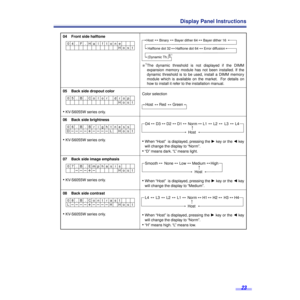

23
Display Panel Instructions
04    Front side halftone
¤
1The dynamic threshold is not displayed if the DIMM
expansion memory module has not been installed. If the
dynamic threshold is to be used, install a DIMM memory
module which is available on the market.  For details on
how to install it refer to the installation manual.
05    Back side dropout color
•KV-S6055W series only.Color selection
06    Back side brightness
•KV-S6055W series only.•When “Host”  is displayed, pressing the 1 key or the 2 key...

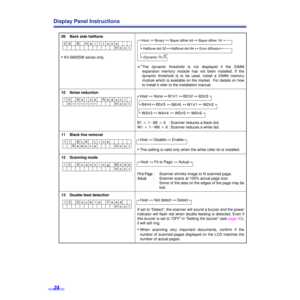

24
Display Panel Instructions
09    Back side halftone
•KV-S6055W series only.
¤
1The dynamic threshold is not displayed if the DIMM
expansion memory module has not been installed. If the
dynamic threshold is to be used, install a DIMM memory
module which is available on the market.  For details on how
to install it refer to the installation manual.
10    Noise reduction
B1
a 1TB6 a 6   : Scanner reduces a black dot.
W1
a 1TW6 a 6 : Scanner reduces a white dot.
11    Black line removal
•This setting...

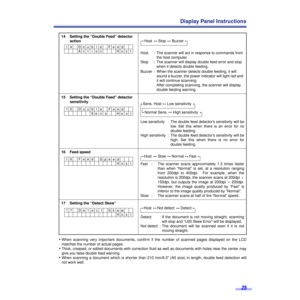

25
Display Panel Instructions
•When scanning very important documents, confirm if the number of scanned pages displayed on the LCD
matches the number of actual pages.
•Thick, creased, or edited documents with correction fluid as well as documents with holes near the center may
give you false double feed warning.
•When scanning a document which is shorter than 210 mm/8.3 (A5 size) in length, double feed detection will
not work well. 14    Setting the “Double Feed” detector
action
Host : The scanner will...


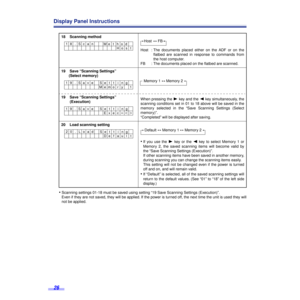

26  Display Panel Instructions
•
Scanning settings 01-18 must be saved using setting “19 Save Scanning Settings (Execution)”.
Even if they are not saved, they will be applied. If the power is turned off, the next time the unit is used they will
not be applied.  18    Scanning method
  Host : The documents placed either on the ADF or on the
flatbed are scanned in response to commands from
the host computer.
FB : The documents placed on the flatbed are scanned.
  19    Save “Scanning Settings”
(Select...


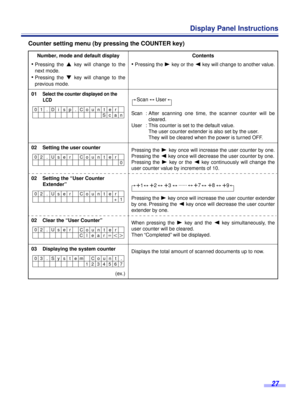

27
Display Panel Instructions
Counter setting menu (by pressing the COUNTER key)
Number, mode and default display
•
Pressing the
3

 key will change to the
next mode.
•
Pressing the
4

 key will change to the
previous mode.
Contents
•
Pressing the
1

 key or the
2

 key will change to another value.
01
Select the counter displayed on the
LCD

Scan :After scanning one time, the scanner counter will be
cleared.
User : This counter is set to the default value.
The user...


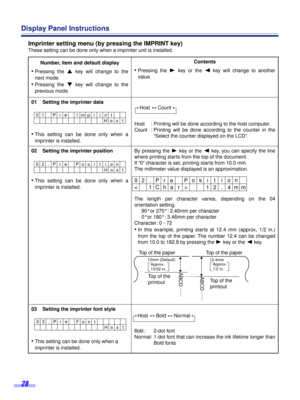

28
Display Panel Instructions
Imprinter setting menu (by pressing the IMPRINT key)
These setting can be done only when a imprinter unit is installed.
.
Number, item and default display
•
Pressing the
3

 key will change to the
next mode.
•
Pressing the
4

 key will change to the
previous mode.
Contents
•
Pressing the
1

 key or the
2

 key will change to another
value.
01    Setting the imprinter data
•
This setting can be done only when a
imprinter is installed.Host :...

29
Display Panel Instructions

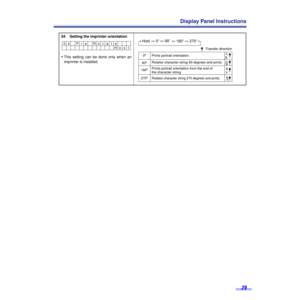

04    Setting the imprinter orientation
•This setting can be done only when an
imprinter is installed.
04 . P r e R
	Ho s t otate
Host 0o90o180o270o
A
B
A
B
AB
AB
:Transfer direction
Prints portrait orientation.
Rotates character string 90 degrees and prints.
Prints portrait orientation from the end of
the character string.
Rotates character string 270 degrees and prints.
0x
90x
180x
270x


30
Display Panel Instructions
“Others”setting menu (by pressing the OTHERS key)
Number, mode and default display
•Pressing the 3 key will change to the
next mode.
•Pressing the 4 key will change to the
previous mode.Contents
•Pressing the 1 key or the 2 key will change to another value.
01    Checking the VersionMX.XX : Displays the mechanical control firmware version.
FX.XX : Displays the imprinter firmware version.
If an imprinter unit is not installed, the firmware version
will not be displayed.
02...
