Panasonic High Speed Scanner Kvs6050w Operating Instructions

31
Display Panel Instructions
06    Checking the “Roller Cleaning
Warning”0% : This is displayed when “Clean Roller Warning ²²%”
displayed is cleared.
100% : This is displayed when the roller needs to be cleaned.
06    Clearing the “Roller Cleaning
Warning”When pressing the 1 key and the 2 key simultaneously,
“Clean Roller Warning” will be cleared. Then “Completed” will be
displayed.
07    Checking the roller modules
replacement warning0% : This is displayed when “Replace Roll. Warning ²²%”...

32

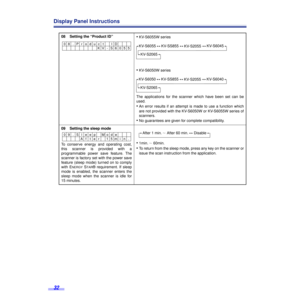

Display Panel Instructions
08    Setting the “Product ID”•KV-S6055W series
•KV-S6050W series
The applications for the scanner which have been set can be
used.
•An error results if an attempt is made to use a function which
are not provided with the KV-S6050W or KV-S6055W series of
scanners.
•No guarantees are given for complete compatibility.
09    Setting the sleep mode
To conserve energy and operating cost,
this scanner is provided with a
programmable power save feature. The
scanner is factory set...

33

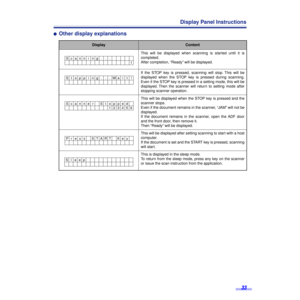

Display Panel Instructions
´Other display explanations
DisplayContent
This will be displayed when scanning is started until it is
completed.
After completion, “Ready” will be displayed.
If the STOP key is pressed, scanning will stop. This will be
displayed when the STOP key is pressed during scanning.
Even if the STOP key is pressed in a setting mode, this will be
displayed. Then the scanner will return to setting mode after
stopping scanner operation.
This will be displayed when the STOP key is...

34

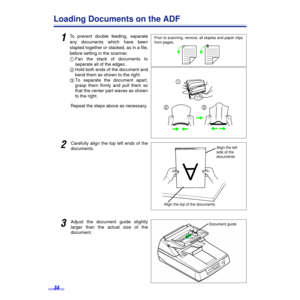

Loading Documents on the ADF
1To prevent double feeding, separate
any documents which have been
stapled together or stacked, as in a file,
before setting in the scanner.
1Fan the stack of documents to
separate all of the edges.
2Hold both ends of the document and
bend them as shown to the right.
3To separate the document apart,
grasp them firmly and pull them so
that the center part waves as shown
to the right.
Repeat the steps above as necessary.
2Carefully align the top left ends of the
documents....

35

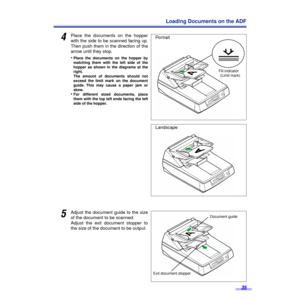

Loading Documents on the ADF
4Place the documents on the hopper
with the side to be scanned facing up.
Then push them in the direction of the
arrow until they stop.
•
Place the documents on the hopper by
matching them with the left side of the
hopper as shown in the diagrams at the
right.
The amount of documents should not
exceed the limit mark on the document
guide. This may cause a paper jam or
skew.
•For different sized documents, place
them with the top left ends facing the left
side of the...


36

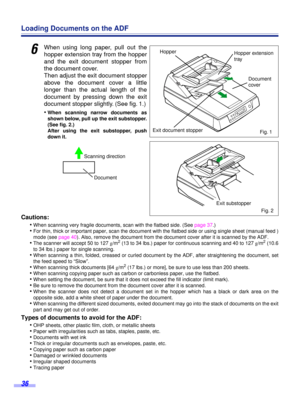

Loading Documents on the ADF
6

When using long paper, pull out the
hopper extension tray from the hopper
and the exit document stopper from
the document cover.
Then adjust the exit document stopper
above the document cover a little
longer than the actual length of the
document by pressing down the exit
document stopper slightly. (See fig. 1.)
•
When scanning narrow documents as
shown below, pull up the exit substopper.
(See fig. 2.)
After using the exit substopper, push
down it.
Cautions:
•...

37

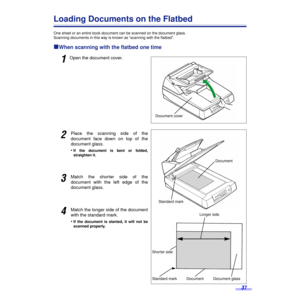

Loading Documents on the Flatbed
One sheet or an entire book document can be scanned on the document glass.
Scanning documents in this way is known as “scanning with the flatbed”.
ºº º ºWhen scanning with the flatbed one time
1Open the document cover.
2Place the scanning side of the
document face down on top of the
document glass.
•
If the document is bent or folded,
straighten it.
3Match the shorter side of the
document with the left edge of the
document glass.
4Match the longer side of the document...

38

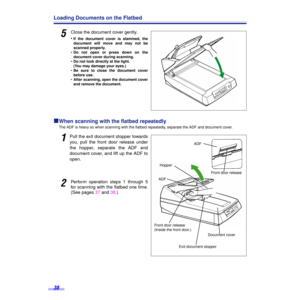

Loading Documents on the Flatbed
5Close the document cover gently.
•
If the document cover is slammed, the
document will move and may not be
scanned properly.
•Do not open or press down on the
document cover during scanning.
•Do not look directly at the light.
(You may damage your eyes.)
•Be sure to close the document cover
before use.
•After scanning, open the document cover
and remove the document.
ºº º ºWhen scanning with the flatbed repeatedly
The ADF is heavy so when scanning with the flatbed...

39

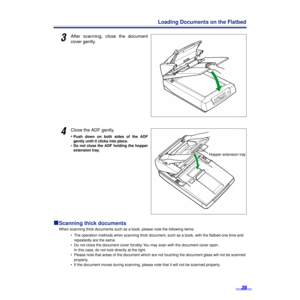

Loading Documents on the Flatbed
3After scanning, close the document
cover gently.
4Close the ADF gently.
•
Push down on both sides of the ADF
gently until it clicks into place.
•Do not close the ADF holding the hopper
extension tray.
ºº º ºScanning thick documents
When scanning thick documents such as a book, please note the following items:
• The operation methods when scanning thick document, such as a book, with the flatbed one time and
repeatedly are the same.
• Do not close the document cover...

40

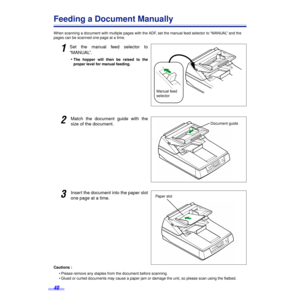

Feeding a Document Manually
When scanning a document with multiple pages with the ADF, set the manual feed selector to “MANUAL” and the
pages can be scanned one page at a time.
1Set the manual feed selector to
“MANUAL”.
•
The hopper will then be raised to the
proper level for manual feeding.
2Match the document guide with the
size of the document.
3Insert the document into the paper slot
one page at a time.
Cautions :
• Please remove any staples from the document before scanning.
• Glued or curled...
