Panasonic IR Light Ag Yrl30g Operating Instructions

Model  AG- G
IR Light
Before operating this product, please read the instructions carefully and save this manual for future
reference.
VQT0L26

– 2 (E) –
indicates safety information.
$DO NOT REMOVE COVER BY UNSCREWING.
To reduce the risk of electric shock, do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
$Do not use power supplies or voltages other than those indicated as
this may result in fire or electrical shock.
WARNING:
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, KEEP THIS
EQUIPMENT AWAY FROM ALL LIQUIDS–USE AND STORE ONLY
IN LOCATIONS WHICH ARE NOT EXPOSED TO THE RISK OF
DRIPPING OR...

– 3 (E) –
ENGLISH
indicates safety information.
WARNING:
Do not look straight at the IR
light since it emits an infrared
beam of light when it is lighted.
You may damage your eyes if
you look straight at the light.
Precautions for use$The IR (infrared) light is used as a
photographic aid for shooting in the dark and
at night.  Do not use it for any other purpose.
$When the IR light is mounted on the camera-
recorder and the camera-recorder is to be
carried, do not hold the camera-recorder by
the IR...

– 4 (E) –
Installing the batteryPush the battery straight in, and slide the
battery down until it clicks into place.
$To remove the battery, hold down the button
while at the same time sliding the battery up
until it can be taken out.Maintenance$Before proceeding with maintenance,
remove the battery.
$Do not use benzine or paint thinners for
maintenance purposes since they may
deform the IR light or cause its paint to peel
off.
$Wipe the IR light with a soft, clean cloth.  To
remove stubborn dirt, dip a...

– 5 (E) –
ENGLISH

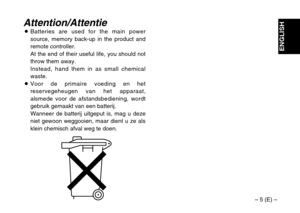

Attention/AttentieOBatteries are used for the main power
source, memory back-up in the product and
remote controller.
At the end of their useful life, you should not
throw them away.
Instead, hand them in as small chemical
waste.
OVoor de primaire voeding en het
reservegeheugen van het apparaat,
alsmede voor de afstandsbediening, wordt
gebruik gemaakt van een batterij.
Wanneer de batterij uitgeput is, mag u deze
niet gewoon weggooien, maar dient u ze als
klein chemisch afval weg te doen.

– 6 (E) –
2
1 12
1 1

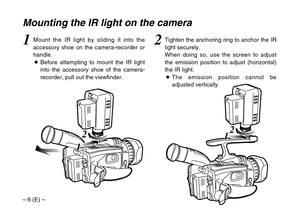

Mounting the IR light on the camera
2Tighten the anchoring ring to anchor the IR
light securely.
When doing so, use the screen to adjust
the emission position to adjust (horizontal)
the IR light.
OThe emission position cannot be
adjusted vertically.1Mount the IR light by sliding it into the
accessory shoe on the camera-recorder or
handle.
OBefore attempting to mount the IR light
into the accessory shoe of the camera-
recorder, pull out the viewfinder.

– 7 (E) –
ENGLISH

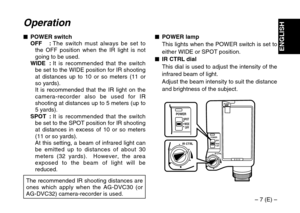

Operation
$POWER switch
OFF :The switch must always be set to
the OFF position when the IR light is not
going to be used.
WIDE :It is recommended that the switch
be set to the WIDE position for IR shooting
at distances up to 10 or so meters (11 or
so yards).
It is recommended that the IR light on the
camera-recorder also be used for IR
shooting at distances up to 5 meters (up to
5 yards).
SPOT :It is recommended that the switch
be set to the SPOT position for IR shooting
at distances in...

– 8 (E) –Power supply:
DC 7.2 V
Power consumption:
3 W (maximum)

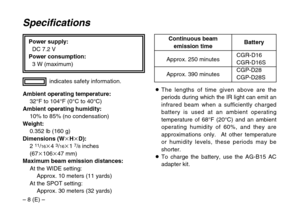

Specifications
Ambient operating temperature:
32°F to 104°F (0°C to 40°C)
Ambient operating humidity:
10% to 85% (no condensation)
Weight:
0.352 lb (160 g)
Dimensions (WkHkD):
2
11/16k4 3/16k1 7/8inches
(67k106k47 mm)
Maximum beam emission distances:
At the WIDE setting:
Approx. 10 meters (11 yards)
At the SPOT setting:
Approx. 30 meters (32 yards)indicates safety information.
CGR-D16CGR-D16S
CGP-D28
CGP-D28S Approx. 250 minutes
Approx....

– 9 (E) –
ENGLISH

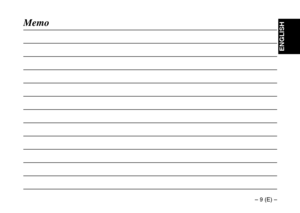

Memo

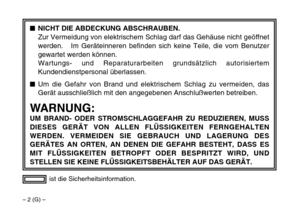

– 2 (G) –
ist die Sicherheitsinformation.
$NICHT DIE ABDECKUNG ABSCHRAUBEN.
Zur Vermeidung von elektrischem Schlag darf das Gehäuse nicht geöffnet
werden.   Im Geräteinneren befinden sich keine Teile, die vom Benutzer
gewartet werden können.
Wartungs- und Reparaturarbeiten grundsätzlich autorisiertem
Kundendienstpersonal überlassen.
$Um die Gefahr von Brand und elektrischem Schlag zu vermeiden, das
Gerät ausschließlich mit den angegebenen Anschlußwerten betreiben.
WARNUNG:
UM BRAND- ODER...
