Panasonic Kx-Td816e, Kx-td1232e User Manual

5-40DECT Portable Station Features
5.2DECT Portable Station Features
nDo Not Disturb (DND)
You can prevent other parties from disturbing
you.  The extension will not receive calls and
the call may be transferred to a backup exten-
sion.
Setting
•Off-hook.
•Dial 710(or press the FWD/DND button).
•Dial 1.
•Dial the extension number,0,or .
-extension number:transferring destination
- 0 :to theoperator
- :no backup extension
— A confirmation tone is audible.
•On-hook.
Cancelling
•Off-hook.
•Dial 710(or press...

DECT Portable Station Features5-41
5.2DECT Portable Station Features
nEmergency Call
You can make an emergency call without dial
restrictions.  You can store up to ten emergency
numbers by System Programming.  999 and
112 are already stored.  For System
Programming,please consult with your dealer.
•Off-hook.
•Press the CObutton.
•Dial the desired emergency number.
nExternal Feature Access
Allows you to access special features (e.g. Call
Waiting) offered by a PBX,Centrex or Central
Office.
During a...

5-42DECT Portable Station Features
5.2DECT Portable Station Features
nNight Service
The system operation for making and receiving
calls can be different for Day and Night modes.
You can switch the Day and Night mode auto-
matically or manually.
Switching modes using the feature number
•Off-hook.
•Dial 78.
•Dial 0,1or 2.
- 0:for Auto mode
- 1:for Manual Day mode
- 2:for Manual Night mode
— A confirmation tone is audible.
•On-hook.
Note
You cannot confirm the current mode with your
PS.
nNotebook Function...

DECT Portable Station Features5-43
5.2DECT Portable Station Features
External
– To access all external pagers
•Off-hook.
•Dial 620.
— A confirmation tone is audible (optional).
•Announce.
– To access a particular pager only
•Off-hook.
•Dial 62.
•Dial the external pager numberas follows.
– 1–2:if connected to a KX-TD816
– 1–4:if connected to a KX-TD1232
— A confirmation tone is audible (optional).
•Announce.
Group
– To access all groups simultaneously
•Off-hook.
•Dial 6300.
— A confirmation tone is...

5-44DECT Portable Station Features
5.2DECT Portable Station Features
nRedial,Last Number
You can redial the last number dialled.
•Off-hook.
•Dial #.
nRedial,Saved Number
The desired outside number can be stored and
then redialled.
Storing
During a conversation or while hearing a busy
tone
•Press the Auto/OKbutton.
•Press the Savebutton.
Dialling
•Off-hook.
•Press the Savebutton.
nStation Feature Clear
You can reset all of the station features you pro-
grammed to their default settings.
•Off-hook.
•Dial...

DECT Portable Station Features5-45
5.2DECT Portable Station Features
†:Available when the Digital Super Hybrid System is connected to a Digital
Proprietary Telephone capable Panasonic Voice Processing System (one
that supports digital proprietary telephone integration; e.g. KX-TVP100).
nTrunk (CO Line) Answer From Any
Station (TAFAS)
You can answer any page sent to an external
pager.
•Dial 42+ the external pager numberas fol-
lows.
– 1–2 :if connected to a KX-TD816
– 1–4:if connected to a KX-TD1232...

5-46DECT Portable Station Features
5.3 PS Programming

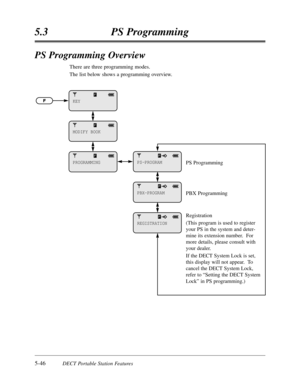

PS Programming Overview
There are three programming modes.
The list below shows a programming overview.
KEY
MODIFY BOOK
PROGRAMMINGPS Programming
PBX Programming
Registration
(This program is used to register
your PS in the system and deter-
mine its extension number.  For
more details, please consult with
your dealer.
If the DECT System Lock is set,
this display will not appear.  To
cancel the DECT System Lock,
refer to “Setting the DECT System
Lock”...

DECT Portable Station Features5-47
5.3PS Programming

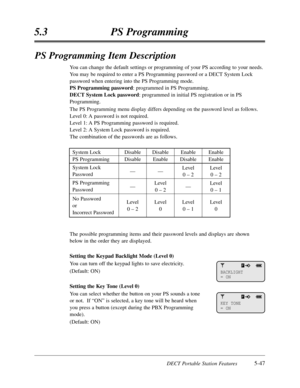

PS Programming Item Description
You can change the default settings or programming of your PS according to your needs.
You may be required to enter a PS Programming password or a DECT System Lock
password when entering into the PS Programming mode.
PS Programming password:programmed in PS Programming.
DECT System Lock password:programmed in initial PS registration or in PS
Programming.
The PS Programming menu display differs depending on the password...

5-48DECT Portable Station Features
5.3PS Programming

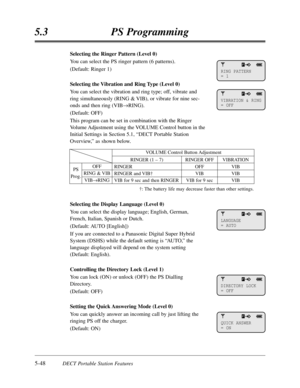

Selecting the Ringer Pattern (Level 0)
You can select the PS ringer pattern (6 patterns).
(Default:Ringer 1)
Selecting the Vibration and Ring Type (Level 0)
You can select the vibration and ring type; off,vibrate and
ring simultaneously (RING & VIB),or vibrate for nine sec-
onds and then ring (VIB
®RING).
(Default:OFF)
This program can be set in combination with the Ringer
Volume Adjustment using the VOLUME Control button in the
Initial Settings in...

DECT Portable Station Features5-49
5.3PS Programming

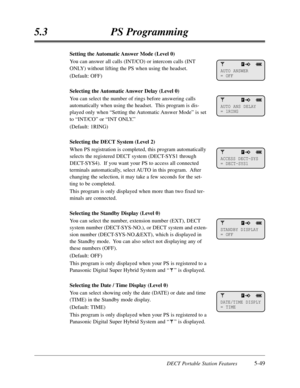

Setting the Automatic Answer Mode (Level 0)
You can answer all calls (INT/CO) or intercom calls (INT
ONLY) without lifting the PS when using the headset.
(Default:OFF)
Selecting the Automatic Answer Delay (Level 0)
You can select the number of rings before answering calls
automatically when using the headset.  This program is dis-
played only when “Setting the Automatic Answer Mode”is set
to “INT/CO”or “INT ONLY.”
(Default:1RING)
Selecting the DECT...
