Panasonic Lcd Tv Dvd Recorder Combination Tc 22lr30 Operating Instructions

11

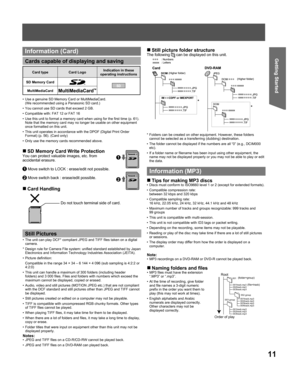

Getting Started
•  Use a genuine SD Memory Card or MultiMediaCard.
(We recommended using a Panasonic SD card.)
•  You cannot use SD cards that exceed 2 GB.
•  Compatible with: FAT 12 or FAT 16
•  Use this unit to format a memory card when using for the first time (p. 61).
Note that the memory card may no longer be usable on other equipment
once formatted on this unit.
•  This unit operates in accordance with the DPOF (Digital Print Order
Format) (p. 56). (Card only)
•  Only use the memory cards...

12

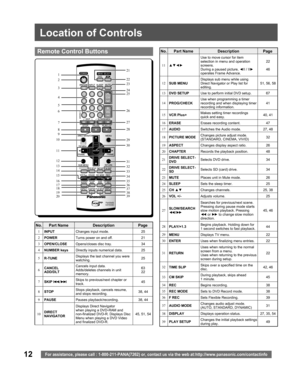

Location of Controls
For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
  Remote Control Buttons
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2021
22
23
24
25
26
27
28
29
31
33
34
35
36
37
38
39
5
No. Part Name Description Page
1
INPUTChanges input mode. 25
2
POWERTurns power on and off. 21
3
OPEN/CLOSEOpens/closes disc tray. 34
4
NUMBER keysDirectly inputs numerical data. 25
5
R-TUNEDisplays the last channel you were
watching.25...

13
Getting Started

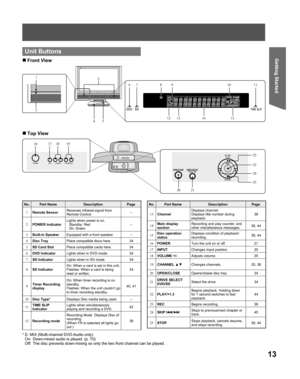

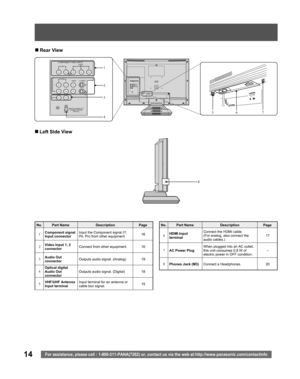

  Unit Buttons

14For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

15
Getting Started

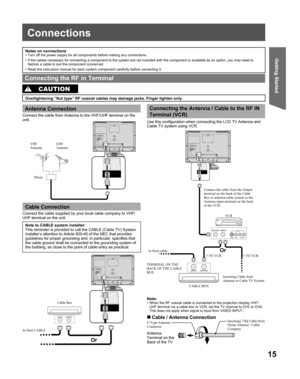

Connections
Notes on connections•  Turn off the power supply for all components before making any connections.
•  If the cables necessary for connecting a component to the system are not included with the component or available as an option, you may need to
fashion a cable to suit the component concerned.
•  Read the instruction manual for each system component carefully before connecting it.
Connect the cable from Antenna to the VHF/UHF terminal on the
unit.
Cable Connection...

16For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

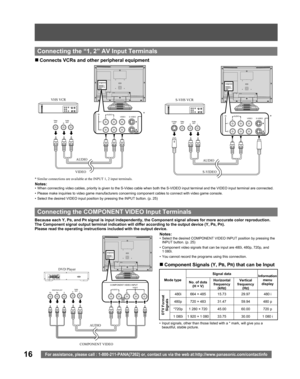

VIDEO S VIDEO INAUDIO
RLVIDEO S VIDEO INAUDIO
RL
Notes:•  When connecting video cables, priority is given to the S-Video cable when both the S-VIDEO input terminal and the VIDEO input terminal are connected.
•  Please make inquiries to video game manufacturers concerning component cables to connect with video game console.
•  Select the desired VIDEO input position by pressing the INPUT...

17
Getting Started
!
6).
0%
44

-5

Ferrite core (small size)
(not supplied)

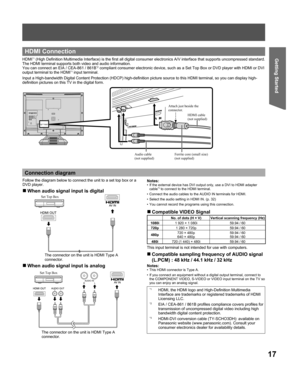

  HDMI Connection
HDMI*1 (High Definition Multimedia Interface) is the first all digital consumer electronics A/V interface that supports uncompressed standard.
The HDMI terminal supports both video and audio information.
You can connect an EIA / CEA-861 / 861B
*2 compliant consumer electronic device, such as a Set Top Box or DVD player with HDMI or DVI
output terminal to the HDMI*1 input terminal.
Input a High-bandwidth...

18For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

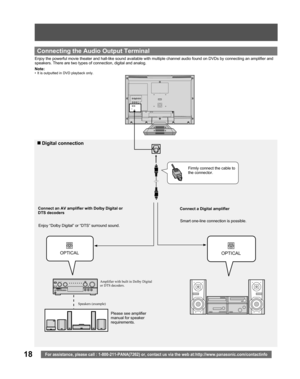

Enjoy the powerful movie theater and hall-like sound available with multiple channel audio found on DVDs by connecting an amplifier and
speakers. There are two types of connection, digital and analog.
Connect an AV amplifier with Dolby Digital or
DTS decoders

19
Getting Started

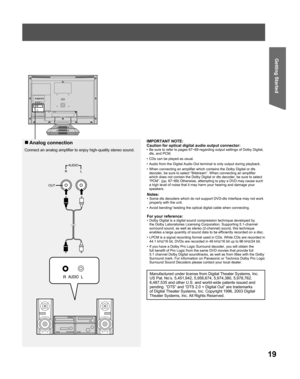

Connect an analog amplifier to enjoy high-quality stereo sound.

20For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
M3 plug

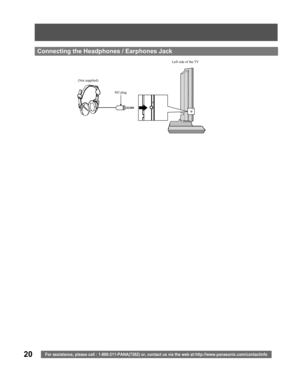

  Connecting the Headphones / Earphones Jack
Left side of the TV
(Not supplied)
