Panasonic Lcd Tv Dvd Recorder Combination Tc 22lr30 Operating Instructions

61
Disc / Card Operation

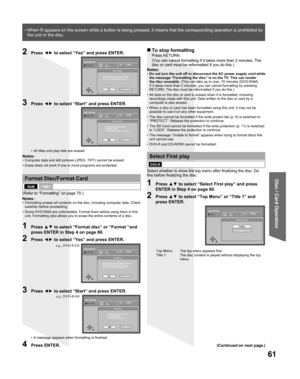

3 Press ◄► to select “Start” and press ENTER.
•  All titles and play lists are erased.
Notes:•  Computer data and still pictures (JPEG, TIFF) cannot be erased.
•  Erase does not work if one or more programs are protected.

Format Disc/Format Card
(Refer to “Formatting” on page 70.).
Notes:
•  Formatting erases all contents on the disc, including computer data. Check
carefully before proceeding.
•  Some DVD-RAM are unformatted. Format them before using them in this
unit....

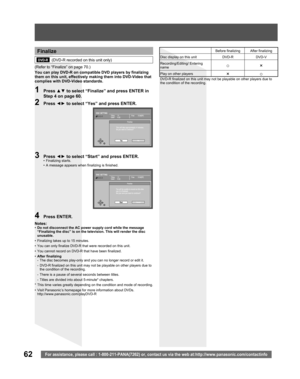

62For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
(Refer to “Finalize” on page 70.)

Finalize
You can play DVD-R on compatible DVD players by finalizing
them on this unit, effectively making them into DVD-Video that
complies with DVD-Video standards.
1 Press ▲▼ to select “Finalize” and press ENTER in
Step 4 on page 60.
2 Press ◄► to select “Yes” and press ENTER.
Before finalizing After finalizing
Disc display on this unit DVD-R...

63
Disc / Card Operation

64For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

65
Disc / Card Operation

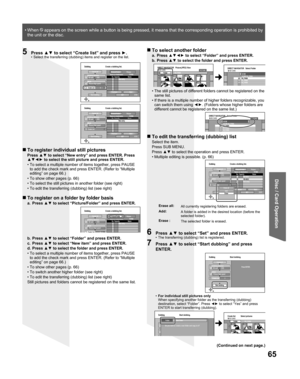

5 Press ▲▼ to select “Create list” and press ►.•  Select the transferring (dubbing) items and register on the list.
3Create List               0 Cancel all
Start dubbing
SET01/01 Dubbing direction
  SD card         DVD
1
Mode
   Picture High speed2
 Picture/Folder  Picture
Space on destination  797MB
 No. Capacity  Name
Previous Next
Create a dubbing list.
Dubbing
New entry
3Create List Cancel all
Start dubbing
SET01/01 Dubbing direction
  SD card         DVD
1...

66For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

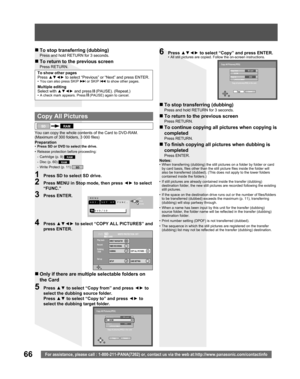

You can copy the whole contents of the Card to DVD-RAM.
(Maximum of 300 folders, 3 000 files)
  Copy All Pictures
DVDSD
Play back
Record
Dubbing
/ Edit
Set up
WRITE PROTECTION  OFF
SD CARD
DIRECT NAVIGATOR
TIMER RECORDING
DUBBING
SETUPCOPY ALL PICTURES
CARD SETTING
 MENU
 ADJ. SET UP FUNC.

   DVD/SD                     OK
                     PAGE
                   RETURN
1  Press...

67
Disc / Card Operation

68For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

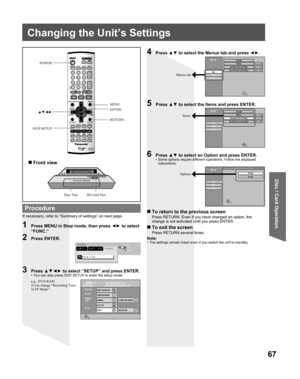

See page 67 for details on menu operation.
The settings remain intact even if you switch the unit to standby.

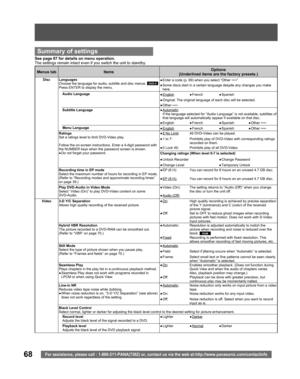

Summary of settings
Menus tab ItemsOptions
(Underlined items are the factory presets.)
Disc Languages
Choose the language for audio, subtitle and disc menus. DVD-VPress ENTER to display the menu.● Enter a code (p. 69) when you select “Other
****”
● Some discs start in a certain...

69
Disc / Card Operation
• When    appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by
the unit or the disc.

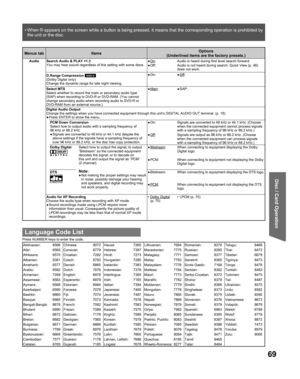

Menus tab ItemsOptions
(Underlined items are the factory presets.)
Audio Search Audio & PLAY ×1.3
You may hear sound regardless of this setting with some discs.● On: Audio is heard during first level search forward.
● Off: Audio is not heard during search. Quick View (p. 46)
does not work.
D.Range Compression
DVD-V(Dolby Digital...

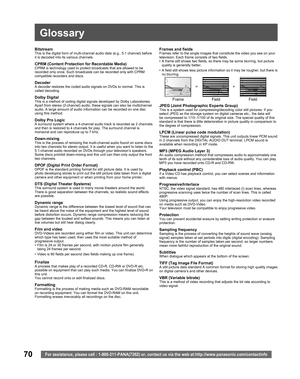

70For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
BitstreamThis is the digital form of multi-channel audio data (e.g., 5.1 channel) before
it is decoded into its various channels.
CPRM (Content Protection for Recordable Media)CPRM is technology used to protect broadcasts that are allowed to be
recorded only once. Such broadcasts can be recorded only with CPRM
compatible recorders and discs.
DecoderA decoder restores the coded audio...
