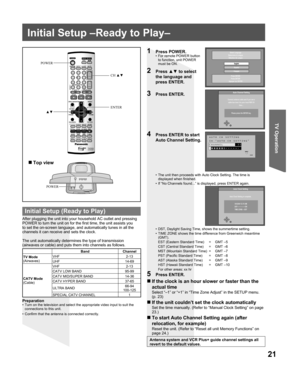

Page 21
21 TV Operation

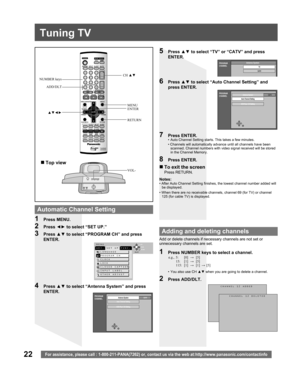

Page 22
22For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

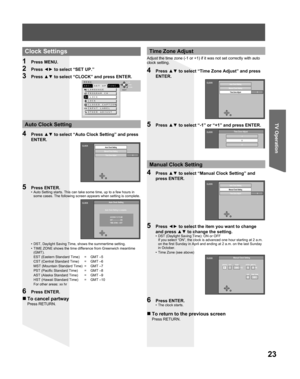

Page 23
23
TV Operation
Clock Settings
1 Press MENU.
2 Press ◄► to select “SET UP.”
3 Press ▲▼ to select “CLOCK” and press ENTER.
MENU
ADJ. SET UP FUNC.
LANGUAGE
PROGRAM CH
CLOCK
LOCK
CLOSED CAPTION
INPUT LABEL
OTHER ADJUST OK
PAGE
RETURN
SELECT
4 Press ▲▼ to select “Auto Clock Setting” and press
ENTER.
• DST, Daylight Saving Time, shows the summertime setting.
• TIME ZONE shows the time difference from Greenwich meantime...

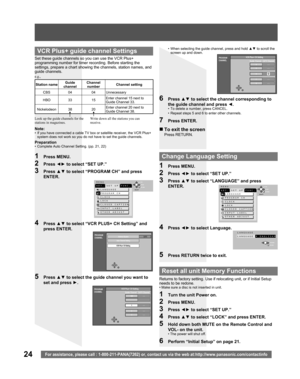

Page 24
24For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo Reset all unit Memory Func tions Returns to factory setting. Use if relocating unit, or if Initial Setup needs to be redone. • Make sure a disc is not inserted in unit. 1 Turn the unit Power on. 2 Press MENU. 3 Press ◄► to select “SET UP.” 4 Press ▲▼ to select “LOCK” and press ENTER. 5 Hold down both MUTE on the Remote Control and VOL- on the unit. • The power will shut off. 6...

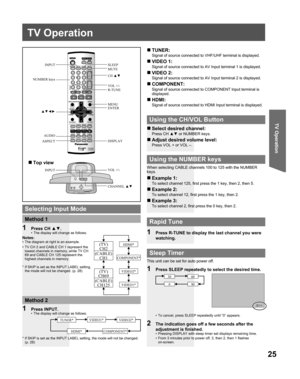

Page 25
25 TV Operation

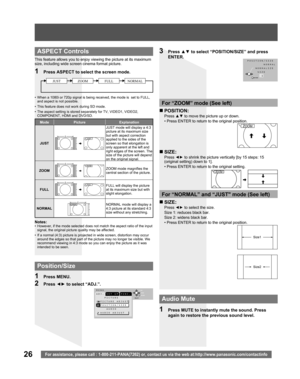

Page 26
26For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo ASPECT Controls NORMALFULLZOOMJUST This feature allows you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture. 1 Press ASPECT to select the screen mode. Notes:• However, if the mode selected does not match the aspect ratio of the input signal, the original picture quality may be affected. • If a normal (4:3) picture is projected in wide...
Page 27

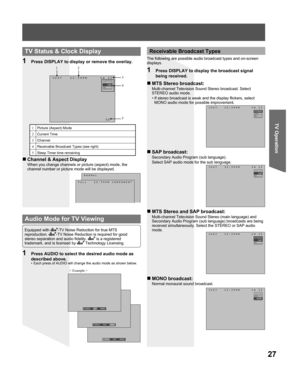

27
TV Operation
STEREO
SAP MONO
1 Press DISPLAY to display or remove the overlay.
TV Status & Clock Display
JUST 12:34PM CH 12
30STEREO
SAP
MONO
12
3
4
5
1
Picture (Aspect) Mode
2
Current Time
3
Channel
4
Receivable Broadcast Types (see right)
5
Sleep Timer time remaining

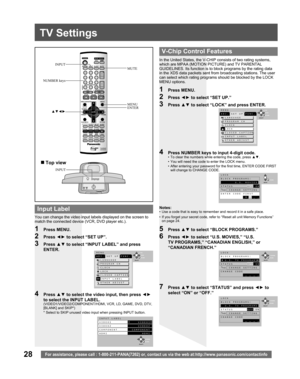

Page 28
28For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

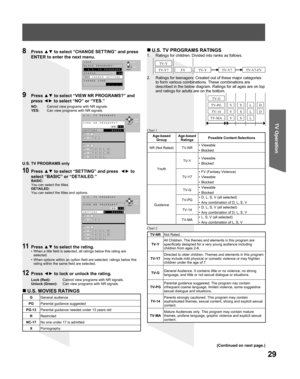

Page 29
29
TV Operation
8 Press ▲▼ to select “CHANGE SETTING” and press
ENTER to enter the next menu.
LOCK
BLOCK PROGRAMS:
U.S. TV PROGRAMS
STATUS OFF ON
CHANGE SETTING
CHANGE CODE
_ _ _ _ OK
RETURN
SELECT
9 Press ▲▼ to select “VIEW NR PROGRAMS?” and
press ◄► to select “NO” or “YES.”
NO: Cannot view programs with NR signals.
YES: Can view programs with NR signals.
10 Press ▲▼ to select “SETTING” and press ◄► to...
Page 30

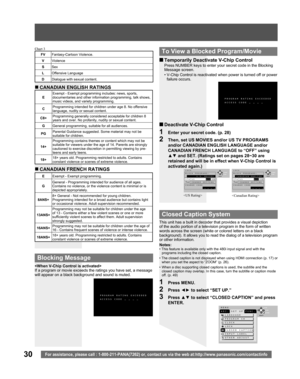

30For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo EExempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. CProgramming intended for children under age 8. No offensive language, nudity or sexual content. C8+Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content. GGeneral...
