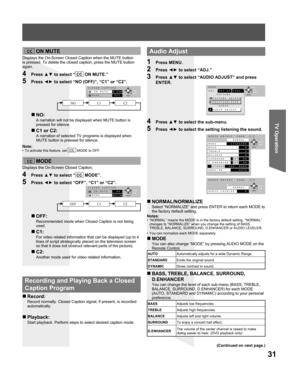

Page 31
31
TV Operation
C2C1NO
CLOSED CAPTION
ON MUTE NO
MODE OFF
CHANGE
RETURN
SELECT
4 Press ▲▼ to select “CC ON MUTE.”
5 Press ◄► to select “NO (OFF)”, “C1” or “C2”.
4 Press ▲▼ to select “CC MODE”.
5 Press ◄► to select “OFF”, “C1” or “C2”. CLOSED CAPTION
ON MUTE NO
MODE OFF
CHANGE
RETURN
SELECT
C2C1OFF

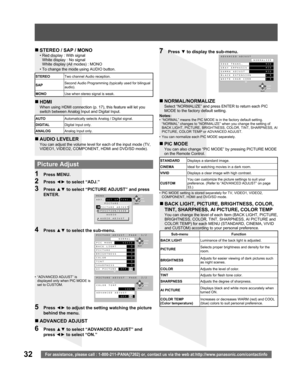

Page 32
32For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

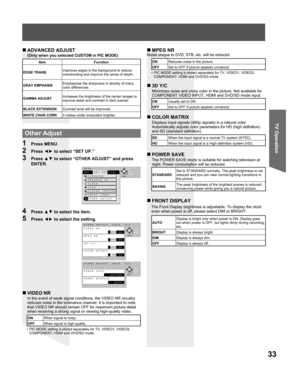

Page 33
33 TV Operation

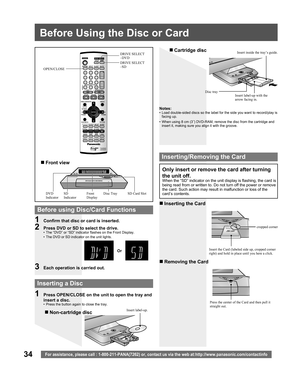

Page 34
34For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

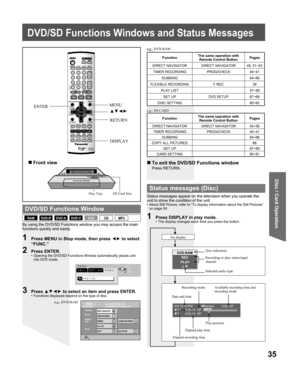

Page 35
35 Disc / Card Operation

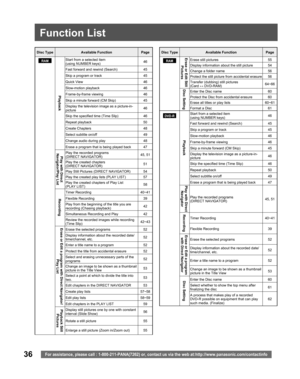

Page 36
36For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo Disc Type Available Function Page RAM Playback Start from a selected item (using NUMBER keys)46 Fast forward and rewind (Search) 45 Skip a program or track 45 Quick View 46 Slow-motion playback 46 Frame-by-frame viewing 46 Skip a minute forward (CM Skip) 45 Display the television image as a picture-in- picture46 Skip the specified time (Time Slip) 46 Repeat playback 50 Create Chapters...

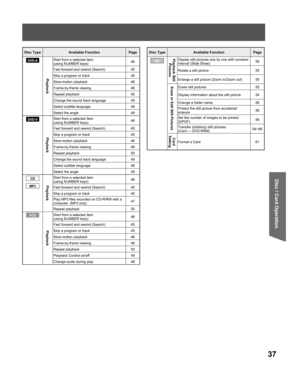

Page 37
37 Disc / Card Operation Disc Type Available Function Page DVD-A Playback Start from a selected item (using NUMBER keys)46 Fast forward and rewind (Search) 45 Skip a program or track 45 Slow-motion playback 46 Frame-by-frame viewing 46 Repeat playback 50 Change the sound track language 49 Select subtitle language 49 Select the angle 49 DVD-V Playback Start from a selected item (using NUMBER keys)46 Fast forward and rewind (Search) 45 Skip a program or track 45 Slow-motion playback 46 Frame-by-frame...

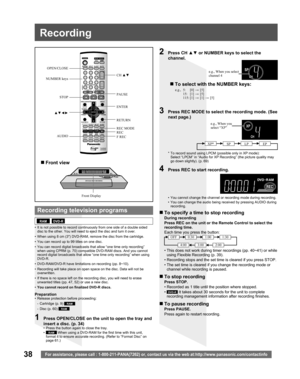

Page 38
38For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

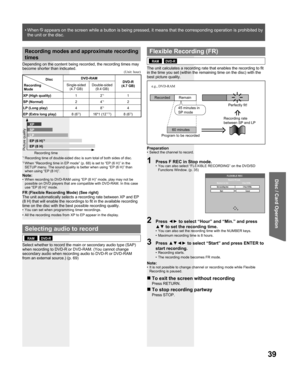

Page 39
39 Disc / Card Operation Recording modes and approximate recording times Depending on the content being recorded, the recording times may become shorter than indicated. Note: • When recording to DVD-RAM using “EP (8 H)” mode, play may not be possible on DVD players that are compatible with DVD-RAM. In this case use “EP (6 H)” mode. FR (Flexible Recording Mode) (See right) The unit automatically selects a recording rate between XP and EP (8 H) that will enable the recordings to fit in the available...

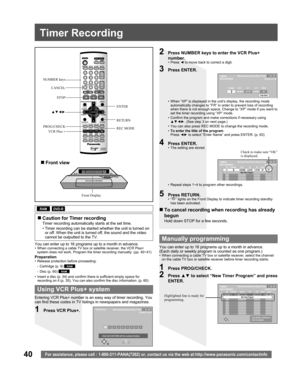

Page 40
40For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
