Panasonic Memory Card Camera Recorder AG-HPX255P AG-HPX255EN Operating Instructions

111

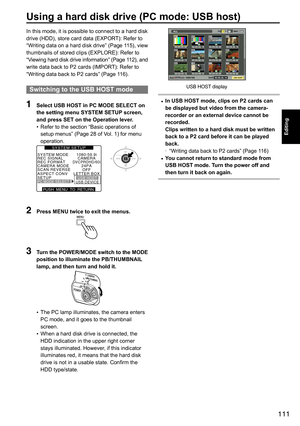

Editing
Using a hard disk drive (PC mode: USB host)
In	this	mode,	it	is	possible	to	connect	to	a	hard	disk
drive	(HDD),	store	card	data	(EXPORT):	Refer	to
“Writing	data	on	a	hard	 disk	drive”	 (Page	 115),	view
thumbnails	of	stored	clips	(EXPLORE):	Refer	to
“Viewing 	hard 	disk 	drive 	information” 	(Page 	112), 	and
write	data	back	to	P2	cards	(IMPORT):	Refer	to
“Writing	data	back	to	P2	cards”	(Page	116).
Switching to the USB HOST mode
1  Select USB HOST in PC MODE SELECT on
the setting menu...

112

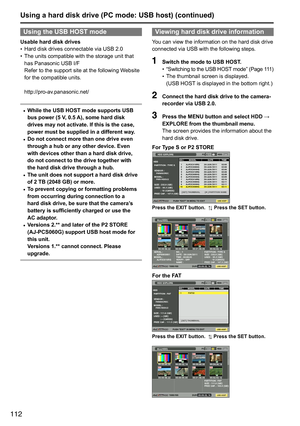

Using a hard disk drive (PC mode: USB host) (continued)
Using the USB HOST mode
Usable hard disk drives
•	Hard	disk	drives	connectable	via	USB	2.0
•	 The	units	compatible	with	the	storage	unit	that
has	Panasonic	USB	I/F
Refer	to	the	support	site	at	the	following	Website
for	the	compatible	units.
http://pro-av.panasonic.net/
• While the USB HOST mode supports USB
bus power (5 V, 0.5
A), some hard disk
drives may not activate. If this is the case,
power must be supplied in a different way.
•  Do...

113
Editing

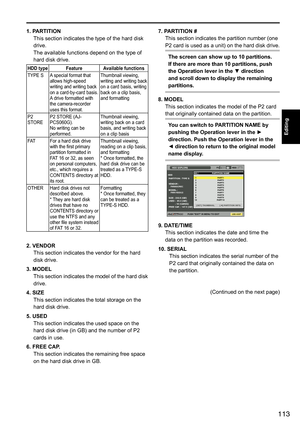

1. PARTITIONThis	section	indicates	the	type	of	the	hard	disk
drive.
The	available	functions	depend	on	the	type	of
hard	disk	drive.
HDD type FeatureAvailable functions
TYPE	S A	special	format	that
allows	high-speed
writing	and	writing	back
on	a	card-by-card	basis.
A 	drive	formatted	with
the	camera-recorder
uses	this	format. Thumbnail	viewing,
writing
	and 	writing 	back
on	a	card	basis,	writing
back	on	a	clip	basis,
and	formatting
P2
STORE P2	STORE	(AJ-
PCS060G).
No	writing	can...

114

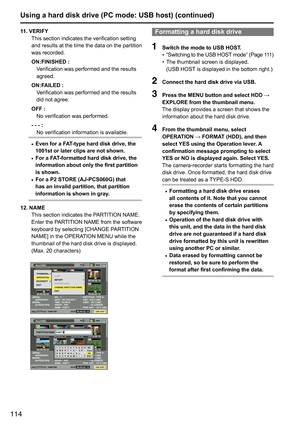

Using a hard disk drive (PC mode: USB host) (continued)
11. VERIFYThis	section	indicates	the	verification	setting
and	results 	at 	the	 time	 the	data	 on	the	 partition
was	recorded.
ON:FINISHED : Verification	was	performed	and	the	results
agreed.
ON:FAILED : Verification	was	performed	and	the	results
did	not	agree.
OFF : No	verification	was	performed.
- - - : No	verification	information	is	available.
• Even for a FAT-type hard disk drive, the
1001st or later clips are not shown.
•  For a...

115

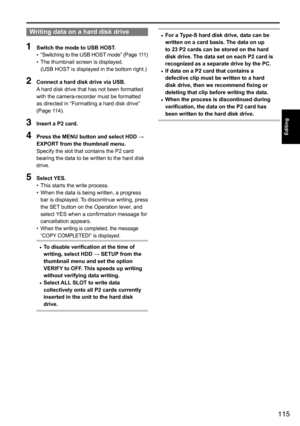

Editing
Writing data on a hard disk drive
1 Switch the mode to USB HOST.
•	“Switching
	to 	the 	USB 	HOST 	mode” 	(Page 	111)
•	 The	thumbnail	screen	is	displayed.
(USB	HOST
	is	displayed	in	the	bottom	right.)
2 Connect a hard disk drive via USB.
A	hard	disk	drive	that	has	not	been	formatted
with	the	camera-recorder	must	be	formatted
as	directed	in	“Formatting	a	hard	disk	drive”
(Page	114).
3  Insert a P2 card.
4 Press the MENU button and select HDD →
EXPORT from the thumbnail menu.
Specify	the...

116

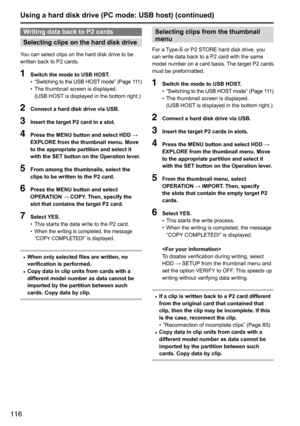

Using a hard disk drive (PC mode: USB host) (continued)
Writing data back to P2 cards
Selecting clips on the hard disk drive
You	can	select	clips	on	the	hard	disk	drive	to	be
written	back	to	P2	cards.
1 Switch the mode to USB HOST.
•	“Switching
	to 	the 	USB 	HOST 	mode” 	(Page 	111)
•	 The	thumbnail	screen	is	displayed.
(USB	HOST
	is	displayed	in	the	bottom	right.)
2 Connect a hard disk drive via USB.
3 Insert the target P2 card in a slot.
4 Press the MENU button and select HDD →
EXPLORE from the...

117

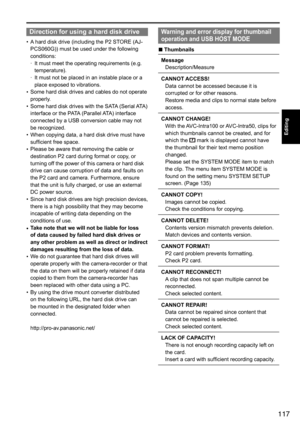

Editing
Direction for using a hard disk drive
•	A
	hard	disk	drive	(including	the	P2	STORE	(AJ-
PCS060G))	must	be	used	under	the	following
conditions:

· It	must	meet	the	operating	requirements	(e.g.
temperature).

· It	must	not	be	placed	in	an	instable	place	or	a
place	exposed	to	vibrations.
•	 Some	hard	disk	drives	and	cables	do	not	operate
properly.
•	 Some	hard	disk	drives	with	the	SATA
	(Serial	ATA)
interface	or	the	PATA 	(Parallel	ATA)	interface
connected	by	a	USB	conversion	cable	may...

118

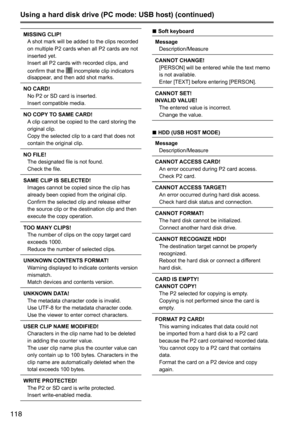

Using a hard disk drive (PC mode: USB host) (continued)
MISSING CLIP!A	shot	mark	will	be	added	to	the	clips	recorded
on	multiple	P2	cards	when	all	P2	cards	are	not
inserted	yet.
Insert	all	P2	cards	with	recorded	clips,	and
confirm	that	the
	incomplete	clip	indicators
disappear,	and	then	add	shot	marks.
NO CARD! No	P2	or	SD	card	is	inserted.
Insert	compatible	media.
NO COPY TO SAME CARD! A	clip	cannot	be	copied	to	the	card	storing	the
original	clip.
Copy	the	selected	clip	to	a	card	that	does	not...

119
Editing

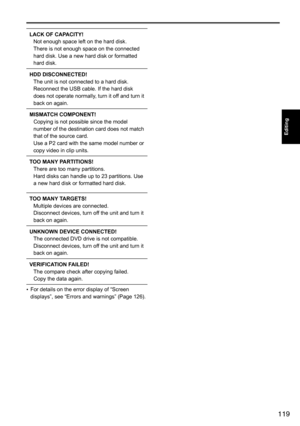

LACK OF CAPACITY!Not	enough	space	left	on	the	hard	disk.
There	is	not	enough	space	on	the	connected
hard	disk.	Use	a	new	hard	disk	or	formatted
hard	disk.
HDD DISCONNECTED! The	unit	is	not	connected	to	a	hard	disk.
Reconnect	the	USB	cable.	If	the	hard	disk
does	not	operate	normally,	turn	it	off	and	turn	it
back	on	again.
MISMATCH COMPONENT! Copying	is	not	possible	since	the	model
number	of	the	destination	card	does	not	match
that	of	the	source	card.
Use	a	P2	card	with	the	same	model...

120

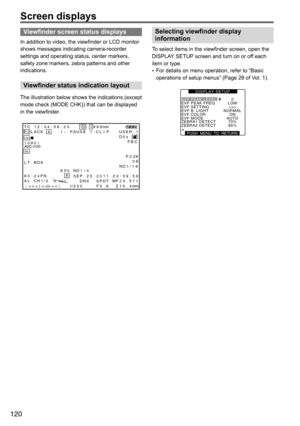

Screen displays
Viewfinder screen status displays
In	addition	to	video,	the	viewfinder	or	LCD	monitor
shows	messages	indicating	camera-recorder
settings	and	operating	status,	center	markers,
safety	zone	markers,	zebra	patterns	and	other
indications.
Viewfinder status indication layout
The	illustration 	below 	shows 	the 	indications 	(except
mode	check	(MODE	CHK))	that	can	be	displayed
in	the	viewfinder.
T C 12 :3 4 :5 6 :2 3 11
1
2
999minP 2LA C K I- PA\f SE -C L IP \fSER -11394
6\b
F B C
