Panasonic Memory Card Camera Recorder AG-HPX255P AG-HPX255EN Operating Instructions

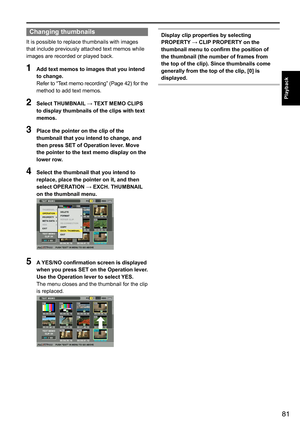

81
Playback
Display clip properties by selecting
PROPERTY → CLIP PROPERTY on the
thumbnail menu to confirm the position of
the thumbnail (the number of frames from
the top of the clip). Since thumbnails come
generally from the top of the clip, [0] is
displayed.Changing thumbnails
It	is	possible	to	replace	thumbnails	with	images
that	include	previously	attached	text	memos	while
images	are	recorded	or	played	back.
1 Add text memos to images that you intend
to change.
Refer 	to 	“Text 	memo...

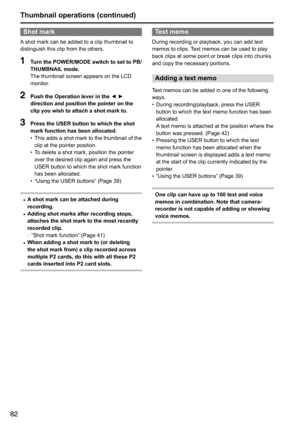

82
Shot mark
A	shot	mark	can	be	added	to	a	clip	thumbnail	to
distinguish	this	clip	from	the	others.
1  Turn the POWER/MODE switch to set to PB/
THUMBNAIL mode.
The	thumbnail	screen	appears	on	the	LCD
monitor.
2 Push the Operation lever in the ◄ ►
direction and position the pointer on the
clip you wish to attach a shot mark to.
3 Press the USER button to which the shot
mark function has been allocated.
•	This	adds	a	shot	mark	to	the	thumbnail	of	the
clip	at	the	pointer	position.
•	 To	delete	a...

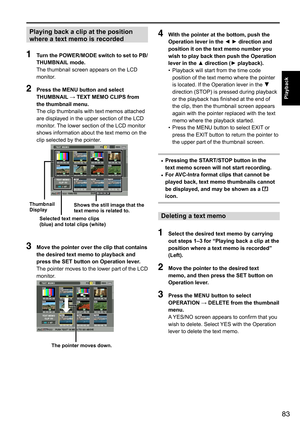

83
Playback
4 With the pointer at the bottom, push the
Operation lever in the ◄ ► direction and
position it on the text memo number you
wish to play back then push the Operation
lever in the ▲ direction (► playback).
•	Playback	will	start	from	the	time	code
position	of	the	text	memo	where	the	pointer
is	located.	If	the	Operation	lever	in	the

direction	(STOP)	is	pressed	during	playback
or	the	playback	has	finished	at	the	end	of
the	clip,	then	the	thumbnail	screen	appears
again	with	the...

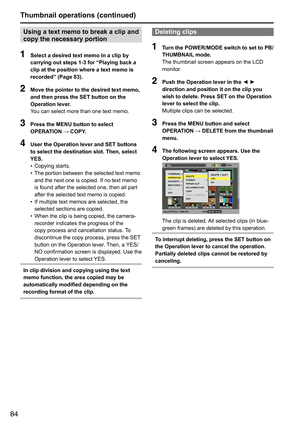

84
Using a text memo to break a clip and
copy the necessary portion
1 Select a desired text memo in a clip by
carrying out steps 1-3 for “Playing back a
clip at the position where a text memo is
recorded” (Page 83).
2 Move the pointer to the desired text memo,
and then press the SET button on the
Operation lever.
You	can	select	more	than	one	text	memo.
3 Press the MENU button to select
OPERATION → COPY.
4 User the Operation lever and SET buttons
to select the destination slot. Then, select
YES....

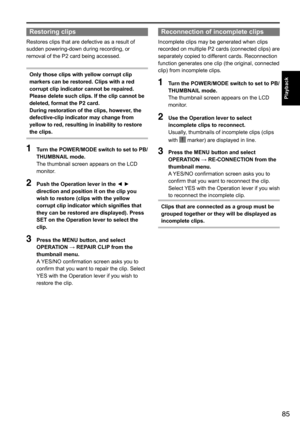

85
Playback
Reconnection of incomplete clips
Incomplete	clips	may	be	generated	when	clips
recorded	on 	multiple 	P2 	cards 	(connected 	clips) 	are
separately	copied	to	different	cards.	Reconnection
function	generates	one	clip	(the	original,	connected
clip)	from	incomplete	clips.
1  Turn the POWER/MODE switch to set to PB/
THUMBNAIL mode.
The	thumbnail	screen	appears	on	the	LCD
monitor.
2 Use the Operation lever to select
incomplete clips to reconnect.
Usually,	thumbnails	of	incomplete	clips	(clips...

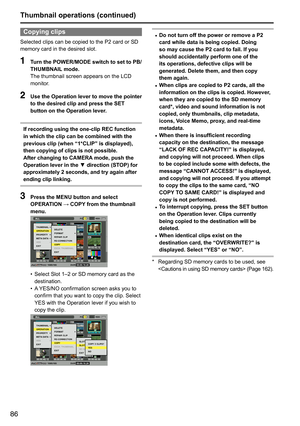

86
Copying clips
Selected	clips	can	be	copied	to	the	P2	card	or	SD
memory	card	in	the	desired	slot.
1 Turn the POWER/MODE switch to set to PB/
THUMBNAIL mode.
The	thumbnail	screen	appears	on	the	LCD
monitor.
2 Use the Operation lever to move the pointer
to the desired clip and press the SET
button on the Operation lever.
If recording using the one-clip REC function
in which the clip can be combined with the
previous clip (when “1 *CLIP” is displayed),
then copying of clips is not possible.
After...

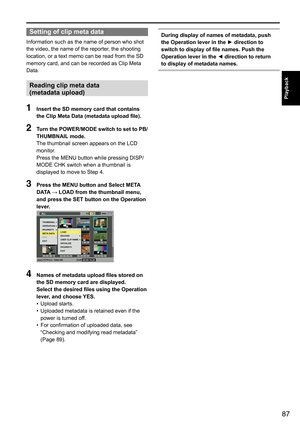

87
Playback
Setting of clip meta data
Information	such	as	the	name	of	person	who	shot
the	video,	the	name	of	the	reporter,	the	shooting
location,	or	a	text	memo	can	be	read	from	the	SD
memory	card,	and	can	be	recorded	as	Clip	Meta
Data.
Reading clip meta data
(metadata upload)
1 Insert the SD memory card that contains
the Clip Meta Data (metadata upload file).
2 Turn the POWER/MODE switch to set to PB/
THUMBNAIL mode.
The	thumbnail	screen	appears	on	the	LCD
monitor.
Press	the	MENU	button	while...

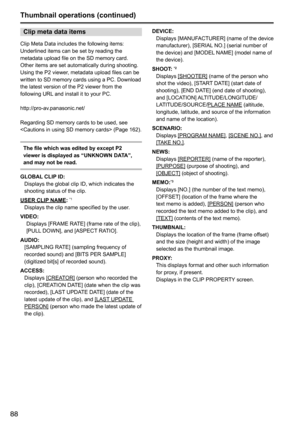

88
Clip meta data items
Clip	Meta	Data	includes	the	following	items:
Underlined	items	can	be	set	by	reading	the
metadata	upload	file	on	the	SD	memory	card.
Other	items	are	set	automatically	during	shooting.
Using	the	P2	viewer,	metadata	upload	files	can	be
written	to	SD	memory	cards	using	a	PC.	Download
the	latest	version	of	the	P2	viewer	from	the
following	URL	and	install	it	to	your	PC.
http://pro-av.panasonic.net/
Regarding	SD	memory	cards	to	be	used,	see
	(Page	162).
The file which was edited...

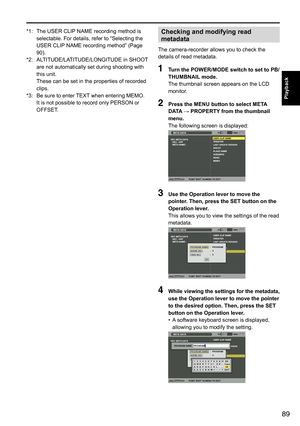

89
Playback
*1:
The	USER	CLIP 	NAME	recording	method	is
selectable.	For	details,	refer	to	“Selecting	the
USER	CLIP 	NAME	recording	method”	(Page
90).
*2:	 	 ALTITUDE/LATITUDE/LONGITUDE	in	SHOOT
are	not	automatically	set	during	shooting	with
this	unit.
	 	 These	can	be	set	in	the	properties	 of	recorded
clips.
*3:
Be	sure	to	enter	 TEXT	when	entering	MEMO.
It	is	not	possible	to	record	only	PERSON	or
OFFSET.Checking and modifying read
metadata
The	camera-recorder	allows	you	to	check	the...

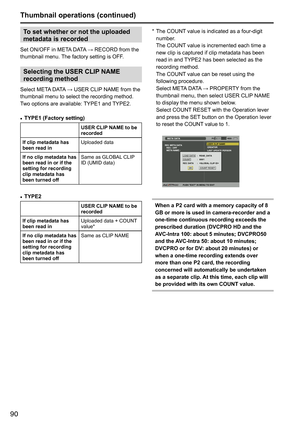

90
*
The	COUNT 	value	is	indicated	as	a	four-digit
number.
The	COUNT 	value	is	incremented	each	time	a
new	clip	is	captured	if	clip	metadata	has	been
read	in	and	 TYPE2	has	been	selected	as	the
recording	method.
The	COUNT 	value	can	be	reset	using	the
following	procedure.
Select	META 	DATA	→	PROPERTY 	from	the
thumbnail	menu,	then	select	USER	CLIP 	NAME
to	display	the	menu	shown	below.
Select	COUNT 	RESET	with	the	Operation	lever
and	press	the	SET 	button	on	the	Operation	lever
to	reset	the...
