Panasonic Memory Card Camera Recorder AG-HPX255P AG-HPX255EN Operating Instructions

121
Displays

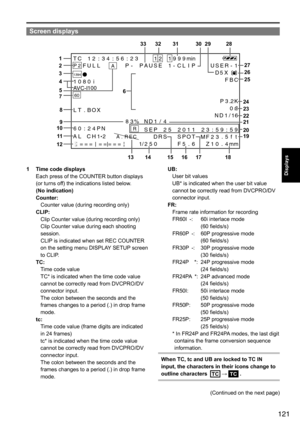

Screen displays
TC 12 :3 4 :5 6 :2 3 11
2 999minP 2FU LL P- PAU \f 1-C L IP
E U\fER -1
1394
6\b
D 5
FB C
1 \b8\b i
AVC-I 1\b\b
P3.2 K
T .B O X \b
dBN
D 1
8 3% ND 1
\f E P 25 2\b 11 2
\f PO T
F 5 .6 3
:5 9 :
4 5
m 9
m
1
Z \b.
6
\b :2 4P N
DR \f
1
2===== === 1/25 \bC
H
C
H
L
L
A CH 2
1
~
AX
1
/ 6
R
5ft
3 .
2
F
M
/
4A .R EC
15
3316
1714
13
283132
1
2
3 4
7
11
12 9
10
8
6
18 21
22 23
24
2627
25
30
5
20
19
29
1
Time code displays
Each	press	of	the	COUNTER	button	displays
(or	turns	off)	the...

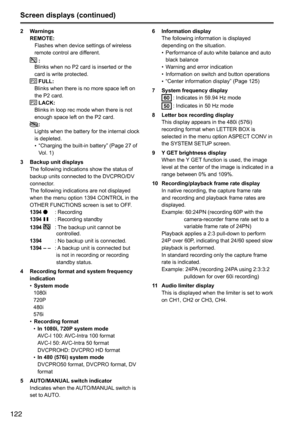

122
2 Warnings
REMOTE:
Flashes	when	device	settings	of	wireless
remote	control	are	different.
P2 :
Blinks	when	no	P2	card	is	inserted	or	the
card	is	write	protected.
P2 FULL:
Blinks	when	there	is	no	more	space	left	on
the	P2	card.
P2 LACK:
Blinks	in	loop	rec	mode	when	there	is	not
enough	space	left	on	the	P2	card.
:
Lights	when	the	battery	for	the	internal	clock
is	depleted.
•	 “Charging	the	built-in	battery”	(Page	27	of
Vol.	1)
3  Backup unit displays
The	following	indications	show	the	status	of...

123
Displays

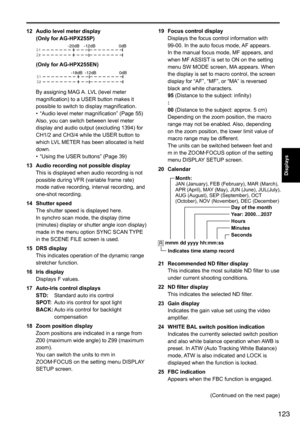

12 Audio level meter display
(Only for AG-HPX255P)
C
H 1-20dB 0dB
C
H 2
-12dB
(Only for AG-HPX255EN)
C
H 1-18dB0dB
C
H 2
-12dB
By	assigning	MAG	A.	LVL	(level	meter
magnification)	to	a	USER	button	makes	it
possible	to	switch	to	display	magnification.
•	 “Audio	level	meter	magnification”	(Page	55)
Also,	you	can	switch	between	level	meter
display	and	audio	output	(excluding	1394)	for
CH1/2	and	CH3/4	while	the	USER	button	to
which	LVL 	METER	has	been	allocated	is	held
down.
•	 “Using	the...

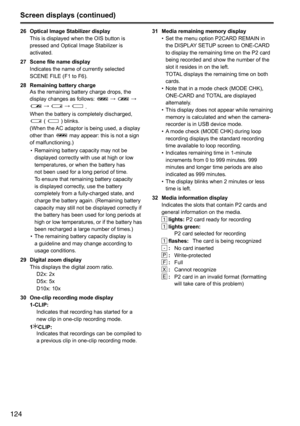

124
26 Optical Image Stabilizer display
This	is	displayed	when	the	OIS	button	is
pressed	and	Optical	Image	Stabilizer	is
activated.
27  Scene file name display
Indicates	the	name	of	currently	selected
SCENE	FILE	(F1	to	F6).
28  Remaining battery charge
As	the	remaining	battery	charge	drops,	the
display	changes	as	follows:
	→		→		→		→		.
When	the	battery	is	completely	discharged,
	(		)	blinks.
(When	the	 AC	adaptor	is	being	used,	a	display
other	than
	may	appear:	this	is	not	a	sign
of...

125
Displays

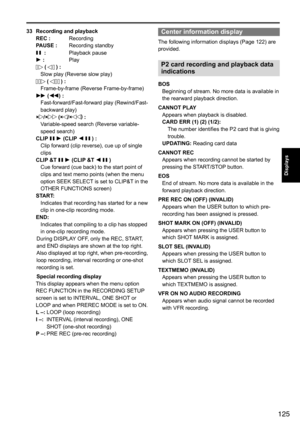

33 Recording and playback
REC :	 Recording
PAUSE :  Recording	standby
  :  Playback	pause
 :  Play
 (  ) :
Slow	play	(Reverse	slow	play)
 (   ) :
Frame-by-frame	(Reverse	Frame-by-frame)
 () :  Fast-forward/Fast-forward 	play 	(Rewind/Fast-
backward	play)
×
/× (×/×)  :
Variable-speed	search	(Reverse	variable-
speed	search)
CLIP   (CLIP   ) :  Clip	forward	(clip	reverse),	cue	up	of	single
clips
CLIP &T   (CLIP &T   )  Cue	forward	(cue	back)	to	the	start	point	of
clips	and	text...

126

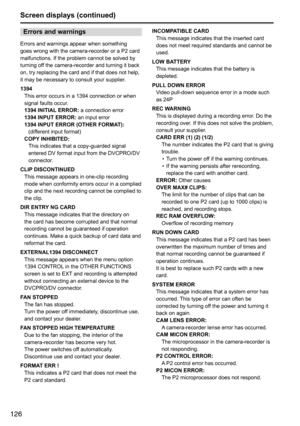

Errors and warnings
Errors	and	warnings	appear	when	something
goes	wrong	with	the	camera-recorder	or	a	P2	card
malfunctions.	If	the	problem	cannot	be	solved	by
turning	off	the	camera-recorder	and	turning	it	back
on,	try	replacing	the	card	and	if	that	does	not	help,
it	may	be	necessary	to	consult	your	supplier.
1394This	error	occurs	in	a	1394	connection	or	when
signal	faults	occur.
1394 INITIAL ERROR: a	connection	error
1394 INPUT ERROR: an	input	error
1394 INPUT ERROR (OTHER FORMAT):...

127
Displays

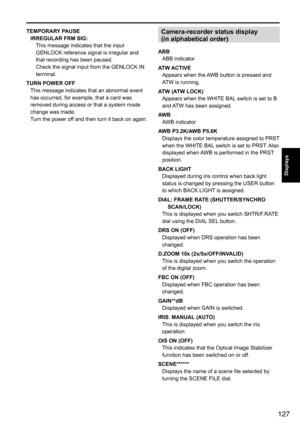

TEMPORARY PAUSEIRREGULAR FRM SIG:  This	message	indicates	that	the	input
GENLOCK	reference	signal	is	irregular	and
that	recording	has	been	paused.
Check	the	signal	input	from	the	GENLOCK	IN
terminal.
TURN POWER OFF This	message	indicates	that	an	abnormal	event
has	occurred,	for	example,	that	a	card	was
removed	during	access	or	that	a	system	mode
change	was	made.
Turn	the	power	off	and	then	turn	it	back	on	again.Camera-recorder status display
(in alphabetical order)
ABB
ABB...

128

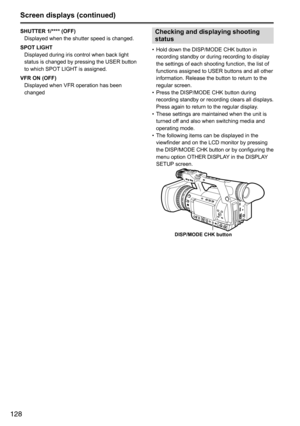

Screen displays (continued)
SHUTTER 1/**** (OFF)Displayed	when	the	shutter	speed	is	changed.
SPOT LIGHT Displayed	during	iris	control	when	back	light
status	is	changed	by	pressing	the	USER	button
to	which	SPOT 	LIGHT	is	assigned.
VFR ON (OFF) Displayed	when	VFR	operation	has	been
changedChecking and displaying shooting
status
•	Hold	down	the	DISP/MODE	CHK	button	in
recording	standby	or	during	recording	to	display
the	settings	of	each	shooting	function,	the	list	of
functions	assigned	to	USER...

129
Displays

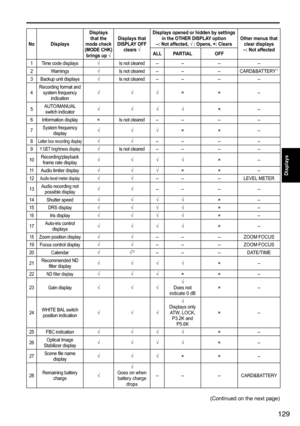

NoDisplays Displays
that the
mode check
(MODE CHK)  brings up √ Displays that
DISPLAY OFF  clears √ Displays opened or hidden by settings
in the OTHER DISPLAY option  –: Not affected, √ : Opens, ×: Clears Other menus that
clear displays  –: Not affected
ALL PARTIAL OFF
1 Time	code 	displays √Is	not 	cleared
– – – –
2Warnings √Is	not 	cleared– – –CARD&BATTERY*1
3Backup 	unit 	displays √Is	not 	cleared– – – –
4Recording
	format 	and
system 	frequency
indication √
√√× × –...

130

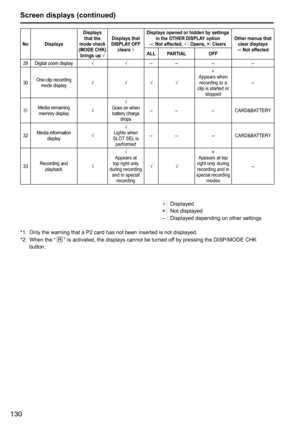

NoDisplays Displays
that the
mode check
(MODE CHK)  brings up √ Displays that
DISPLAY OFF  clears √ Displays opened or hidden by settings
in the OTHER DISPLAY option  –: Not affected, √ : Opens, ×: Clears Other menus that
clear displays  –: Not affected
ALL PARTIAL OFF
29 Digital 	zoom 	display √ √
–– – –
30One-clip
	recording
mode 	display √
√√√
×Appears	when
recording	to	a
clip	is	started	or	 stopped–
31Media 	remaining
memory 	display √√
Goes 	on 	when
battery 	charge
drops– –...
