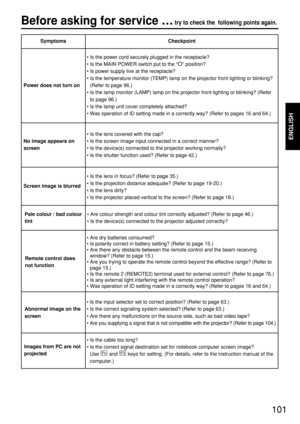

101 Before asking for service …try to check the following points again. ENGLISH SymptomsCheckpoint • Is the power cord securely plugged in the receptacle? • Is the MAIN POWER switch put to the “ O” position? • Is power supply live at the receptacle? • Is the temperature monitor (TEMP) lamp on the projector front lighting or blinking? (Refer to page 96.) • Is the lamp monitor (LAMP) lamp on the projector front lighting or blinking? (Refer to page 96.) • Is the lamp unit cover completely attached? • Was...
Page 102

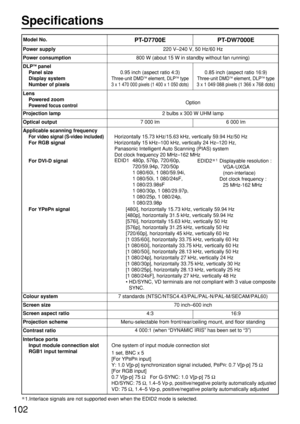

102 Specifications PT-D7700EPT-DW7000E Power supply220 V–240 V, 50 Hz/60 Hz Power consumption800 W (about 15 W in standby without fan running) DLPTMpanel Panel size Display system Number of pixels 0.95 inch (aspect ratio 4:3) Three-unit DMDTMelement, DLPTMtype 3 x 1 470 000 pixels (1 400 x 1 050 dots) Lens Powered zoom Powered focus controlOption Projection lamp2 bulbs x 300 W UHM lamp Optical output7 000 lm Applicable scanning frequency For video signal (S-video included) For RGB signal For DVI-D...
Page 103
![Page 103
103
ENGLISH
Interface ports
RGB2 input terminal
Video input/output terminal
S-video input terminal
Serial input/output terminal
Remote1 input/output terminal
Remote2 terminal
1 set of high-density, D-sub 15p (female)
[For YP
BPRinput]
Y: 1.0 V [p-p] synchronization signal included, P
BPR: 0.7 V[p-p] 75 Ω
[For RGB input]
0.7 V[p-p] 75 ΩFor G-SYNC: 1.0 V[p-p] 75 Ω
HD/SYNC: TTL, high-impedance, positive/negative polarity automatically adjusted
VD: TTL, high-impedance, positive/negative polarity...](http://img.usermanuals.tech/thumb/58/94252/w300_panasonic-pt-dw7000e-manual_d-102.png "Page 103
103
ENGLISH
Interface ports
RGB2 input terminal
Video input/output terminal
S-video input terminal
Serial input/output terminal
Remote1 input/output terminal
Remote2 terminal
1 set of high-density, D-sub 15p (female)
[For YP
BPRinput]
Y: 1.0 V [p-p] synchronization signal included, P
BPR: 0.7 V[p-p] 75 Ω
[For RGB input]
0.7 V[p-p] 75 ΩFor G-SYNC: 1.0 V[p-p] 75 Ω
HD/SYNC: TTL, high-impedance, positive/negative polarity automatically adjusted
VD: TTL, high-impedance, positive/negative polarity...")

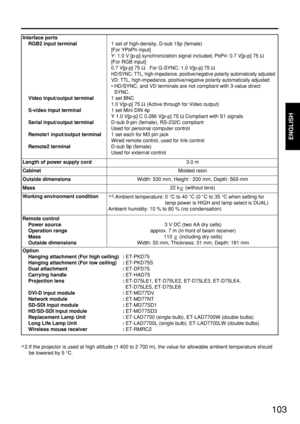

103 ENGLISH Interface ports RGB2 input terminal Video input/output terminal S-video input terminal Serial input/output terminal Remote1 input/output terminal Remote2 terminal 1 set of high-density, D-sub 15p (female) [For YP BPRinput] Y: 1.0 V [p-p] synchronization signal included, P BPR: 0.7 V[p-p] 75 Ω [For RGB input] 0.7 V[p-p] 75 ΩFor G-SYNC: 1.0 V[p-p] 75 Ω HD/SYNC: TTL, high-impedance, positive/negative polarity automatically adjusted VD: TTL, high-impedance, positive/negative polarity...
Page 104

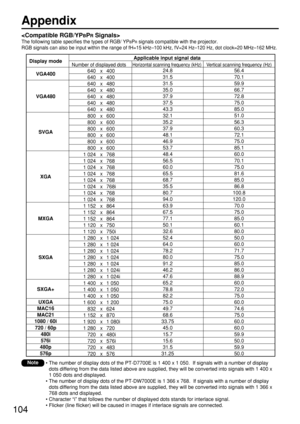

104 Appendix 640 x 400 640 x 400 640 x 480 640 x 480 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 1 024 x 768 1 024 x 768 1 024 x 768 1 024 x 768 1 024 x 768 1 024 x 768i 1 024 x 768 1 024 x 768 1 152 x 864 1 152 x 864 1 152 x 864 1 120 x 750 1 120 x 750i 1 280 x 1 024 1 280 x 1 024 1 280 x 1 024 1 280 x 1 024 1 280 x 1 024 1 280 x 1 024i 1 280 x 1 024i 1 400 x 1 050 1 400 x 1 050 1 400 x 1 050 1 600 x 1 200 832 x 624 1 152 x 870 1 920 x 1 080i 1 280 x 720 720...
Page 105

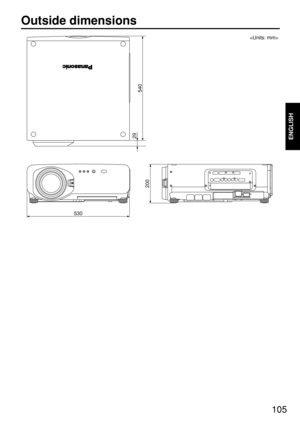

105 Outside dimensions ENGLISH 540 29 200 530
