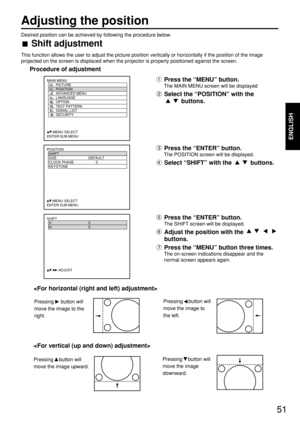

Adjusting the position
ENGLISH
Desired position can be achieved by following the procedure below.
Shift adjustment
This function allows the user to adjust the picture position vertically or horizontally if the position of the image
projected on the screen is displaced when the projector is properly positioned against the screen.
Procedure of adjustment
POSITION
SHIFT
SIZE DEFAULT
CLOCK PHASE 0
KEYSTONE
:MENU SELECT
ENTER:SUB MENU
Press the “MENU” button.
The MAIN MENU screen will...
Page 52

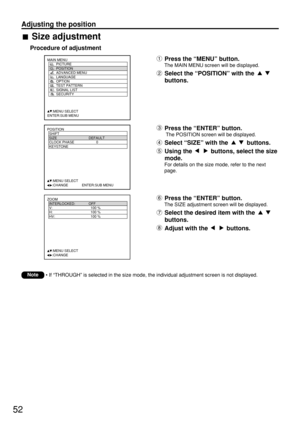

52
Adjusting the position
POSITION
SHIFT
SIZE DEFAULT
CLOCK PHASE 0
KEYSTONE
:MENU SELECT
:CHANGE ENTER:SUB MENU
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select the “POSITION” with the
buttons.
MAIN MENU
POSITION
ADVANCED MENU
LANGUAGE
OPTION
TEST PATTERN
SIGNAL LIST
SECURITY
:MENU SELECT
ENTER:SUB MENU
ZOOM
INTERLOCKED: OFF
V: 100 %
H: 100 %
HV:...
Page 53

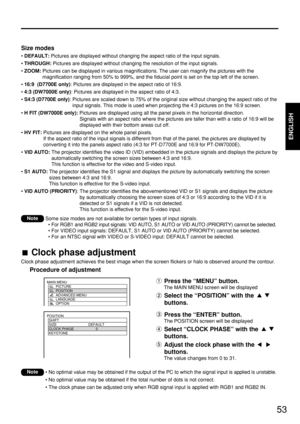

53 ENGLISH Some size modes are not available for certain types of input signals. • For RGB1 and RGB2 input signals: VID AUTO, S1 AUTO or VID AUTO (PRIORITY) cannot be selected. • For VIDEO input signals: DEFAULT, S1 AUTO or VID AUTO (PRIORITY) cannot be selected. • For an NTSC signal with VIDEO or S-VIDEO input: DEFAULT cannot be selected.Note Size modes •DEFAULT:Pictures are displayed without changing the aspect ratio of the input signals. • THROUGH:Pictures are displayed without changing the resolution...
Page 54
54
Adjusting the position
POSITION
SHIFT
SIZE DEFAULT
CLOCK PHASE 0
KEYSTONE
:MENU SELECT
ENTER:SUB MENU
MAIN MENU
POSITION
ADVANCED MENU
LANGUAGE
OPTION
TEST PATTERN
SIGNAL LIST
SECURITY
:MENU SELECT
ENTER:SUB MENU
KEYSTONE
KEYSTONE 63
LINEARITY 63
:ADJUST

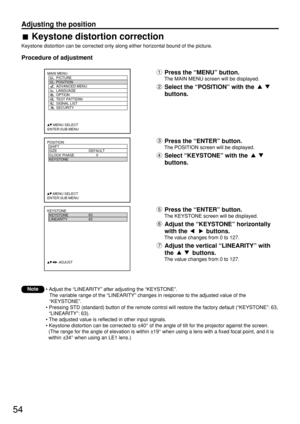

Keystone distortion correction
