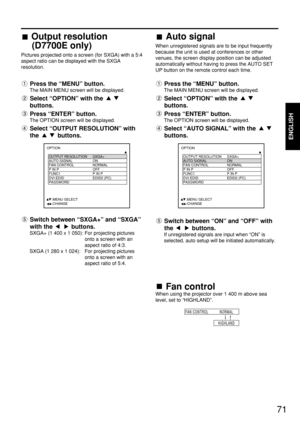

71
ENGLISH
Fan control
When using the projector over 1 400 m above sea
level, set to “HIGHLAND”.
FAN CONTROL NORMAL
HIGHLAND
OPTION
  OUTPUT RESOLUTION SXGA+
  AUTO SIGNAL ON
  FAN CONTROL NORMAL
  P IN P OFF
  FUNC1 P IN P
  DVI EDID EDID2 (PC)
  PASSWORD
     :MENU SELECT
     :CHANGEOPTION
  OUTPUT RESOLUTION SXGA+
  AUTO SIGNAL ON
  FAN CONTROL NORMAL
  P IN P OFF
  FUNC1 P IN P
  DVI EDID EDID2 (PC)
  PASSWORD
     :MENU SELECT
     :CHANGE
Output resolution
(D7700E only)
Pictures...

72

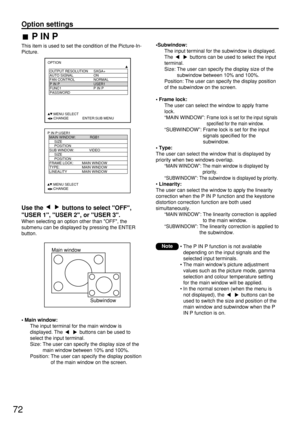

Option settings
P IN P
This item is used to set the condition of the Picture-In-
Picture.
Main window
Subwindow
Use the  buttons to select OFF,
USER 1, USER 2, or USER 3.
When selecting an option other than OFF, the
submenu can be displayed by pressing the ENTER
button.
• Main window:
The input terminal for the main window is
displayed. The  buttons can be used to
select the input terminal.
Size: The user can specify the display size of the
main window between 10% and 100%.
Position: The user can...

ENGLISH
73

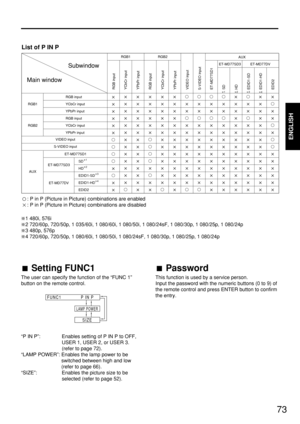

Setting FUNC1
The user can specify the function of the “FUNC 1”
button on the remote control.
“P IN P”:  Enables setting of P IN P to OFF,
USER 1, USER 2, or USER 3.
(refer to page 72).
“LAMP POWER”: Enables the lamp power to be
switched between high and low
(refer to page 66).
“SIZE”:  Enables the picture size to be
selected (refer to page 52).
FUNC1
LAMP POWER
SIZE
P IN P
ET-MD77SD1
AUX
AUXET-MD77SD3
RGB1
Subwindow
Main window
RGB2 RGB1
RGB2ET-MD77DV
ET-MD77SD3
ET-MD77DV
EDID2 VIDEO input...

74

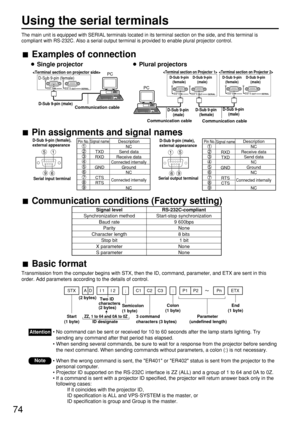

Pin assignments and signal names
The main unit is equipped with SERIAL terminals located in its terminal section on the side, and this terminal is
compliant with RS-232C. Also a serial output terminal is provided to enable plural projector control.
Examples of connection
Single projector Plural projectors
Start
(1 byte)
 ID designate3 command
characters (3 bytes)Parameter
 (undefined length)End
(1 byte)  Two ID
characters
(2 bytes)
Semicolon
(1 byte)Colon
(1 byte)
ZZ, 1 to 64 and 0A to 0Z
STX C1...

75
ENGLISH

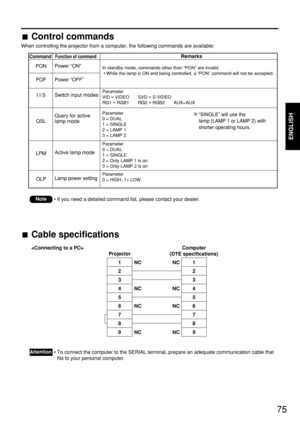

Control commands
When controlling the projector from a computer, the following commands are available:
Cable specifications
• To connect the computer to the SERIAL terminal, prepare an adequate communication cable that
fits to your personal computer.Attention
Power “ON”
Power “OFF”
Switch input modes
Query for active
lamp mode
Active lamp mode
Lamp power setting
In standby mode, commands other than “PON” are invalid.
 • While the lamp is ON and being controlled, a “PON” command will not be...

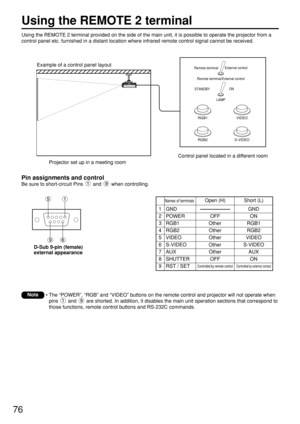

76
Using the REMOTE 2 terminal provided on the side of the main unit, it is possible to operate the projector from a
control panel etc. furnished in a distant location where infrared remote control signal cannot be received.
Pin assignments and control
Be sure to short-circuit Pins  and  when controlling.
D-Sub 9-pin (female)
external appearance
Note
Example of a control panel layout
Projector set up in a meeting roomControl panel located in a different room
STANDBYON
LAMP Remote terminalExternal...

ENGLISH
77

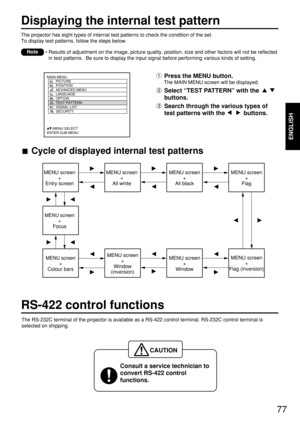

Displaying the internal test pattern
The projector has eight types of internal test patterns to check the condition of the set.
To display test patterns, follow the steps below.
• Results of adjustment on the image, picture quality, position, size and other factors will not be reflected
in test patterns.  Be sure to display the input signal before performing various kinds of setting.
Note
Press the MENU button.
The MAIN MENU screen will be displayed.
Select “TEST PATTERN” with the
buttons....

78

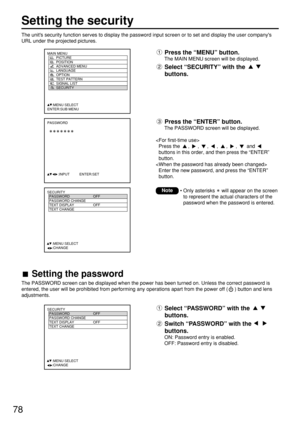

Setting the security
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
     :MENU SELECT
ENTER:SUB MENU
PASSWORD
           :INPUT          ENTER:SET
SECURITY
  PASSWORD OFF
  PASSWORD CHANGE
  TEXT DISPLAY OFF
  TEXT CHANGE




     :MENU SELECT
     :CHANGE
SECURITY
  PASSWORD OFF
  PASSWORD CHANGE
  TEXT DISPLAY OFF
  TEXT CHANGE




     :MENU SELECT...

79
ENGLISH

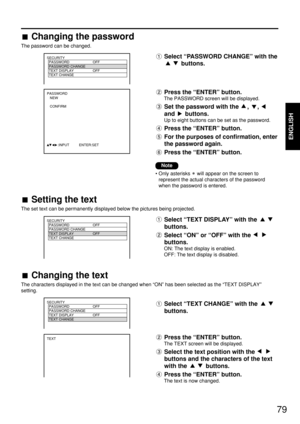

SECURITY
  PASSWORD OFF
  PASSWORD CHANGE
  TEXT DISPLAY OFF
  TEXT CHANGE

SECURITY
  PASSWORD OFF
  PASSWORD CHANGE
  TEXT DISPLAY OFF
  TEXT CHANGE



SECURITY
  PASSWORD OFF
  PASSWORD CHANGE
  TEXT DISPLAY OFF
  TEXT CHANGE

TEXT
PASSWORD
   NEW
   CONFIRM
           :INPUT          ENTER:SET
Select “TEXT DISPLAY” with the
buttons.
Select “ON” or “OFF” with the
buttons.
ON: The text display is enabled.
OFF: The text display is disabled.
Note
• Only asterisks  will appear on...

80

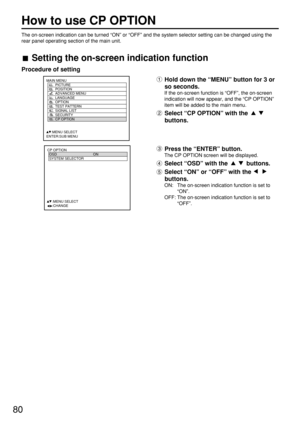

How to use CP OPTION
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
         CP OPTION
     :MENU SELECT
ENTER:SUB MENU
CP OPTION
  OSD ON
  SYSTEM SELECTOR






     :MENU SELECT
     :CHANGE
The on-screen indication can be turned “ON” or “OFF” and the system selector setting can be changed using the
rear panel operating section of the main unit.
Setting the on-screen...
