Operating Instructions
Please read these instructions completely before operating this LCD Projector.
LCD PROJECTOR
Model No.PT-L759VU /
PT-L759XU
This operating instruction book is designed for use with models PT-L759VU and PT-L759XU.
Illustrations in this manual show the PT-L759XU. Features may vary, so please read care-
fully.

2
This instruction manual provides all the necessary operating information\
 that you might require. We hope it will help you
to get the most performance out of your new product, that you will be pl\
eased with your Panasonic LCD Projector.
For your own protection and prolonged operation of your LCD Projector, p\
lease be sure to read the “Important
Safeguards” carefully, before use.
Caution:
This equipment has been tested and found to comply with the limits for a\
 Class B digital device, pursuant...

3
Table of Contents
Getting
Started
Basic
Operation
Useful
Functions
Other
Information
Dear Panasonic Customer ........................................................................................................2
Important Safeguards ...............................................................................................................4
LCD Projector Features ............................................................................................................6
Contents of LCD Projector...

4
CAUTION: Please read all of these instructions before you operate your LCD
Projector.  Save these instructions for future reference.
Important Safeguards
Electrical energy can perform many useful functions. This LCD Projector has been engineered and manufactured to
meet applicable safety standards. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE
HAZARDS. In order not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules
for its installation,...

5

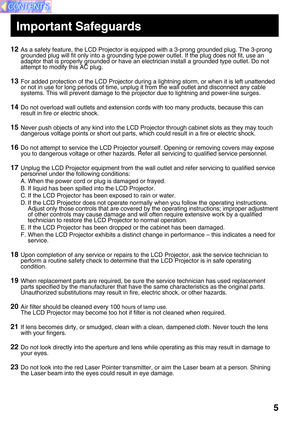

12As a safety feature, the LCD Projector is equipped with a 3-prong grounded plug. The 3-prong
grounded plug will fit only into a grounding type power outlet. If the plug does not fit, use an
adaptor that is properly grounded or have an electrician install a grounded type outlet. Do not
attempt to modify this AC plug.
13For added protection of the LCD Projector during a lightning storm, or when it is left unattended
or not in use for long periods of time, unplug it from the wall outlet and disconnect...

6

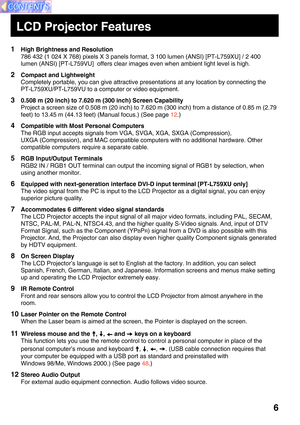

LCD Projector Features
1High Brightness and Resolution
786 432 (1 024 X 768) pixels X 3 panels format, 3 100 lumen (ANSI) [PT-L759XU] / 2 400
lumen (ANSI) [PT-L759VU]  offers clear images even when ambient light level is high.
2Compact and Lightweight
Completely portable, you can give attractive presentations at any location by connecting the
PT-L759XU/PT-L759VU to a computer or video equipment.
30.508 m (20 inch) to 7.620 m (300 inch) Screen Capability
Project a screen size of 0.508 m (20 inch) to...

7
Please confirm that the following items are packed in the LCD Projector box.
They are provided to help you use or set up your LCD Projector.
Contents of LCD Projector Box
13Automatic Universal Power Supply
This unit has an operating voltage range of AC 100 V - 240 V.
14Digital Zoom function
Pressing the D.ZOOM button allows you to magnify the image up to 5 times.
15 Dimensional Noise Reduction [PT-L759XU only]
The video signal noise is reduced, so you can enjoy a beautifully sharp picture.
16Digital...

8

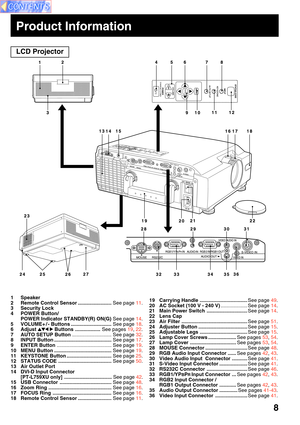

Product Information
LCD Projector
1 Speaker
2 Remote Control Sensor ........................See page 11.
3 Security Lock
4 POWER Button/ POWER Indicator STANDBY(R) ON(G) See page 14.
5 VOLUME+ / - Buttons ............................. See page 18.
6 Adjust
  Buttons .................. See pages 19, 22 .
7 AUTO SETUP Button ............................ See page  32.
8 INPUT Button ......................................... See page 17.
9 ENTER Button ....................................... See page...

9
Product Information
1 POWER Button ...............................................................................................................................See page 14.
2 ENTER Button ................................................................................................................................See page 19.
3 MENU Button ..................................................................................................................................See page 19.
4 Mouse Button...

10

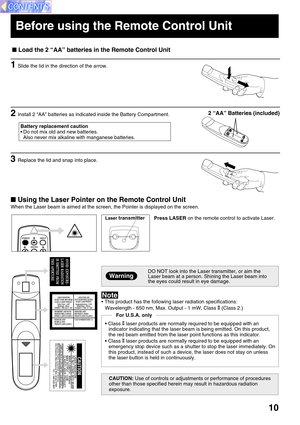

 Using the Laser Pointer on the Remote Control Unit
When the Laser beam is aimed at the screen, the Pointer is displayed on the screen.
Press LASER on the remote control to activate Laser.
DO NOT look into the Laser transmitter, or aim the
Laser beam at a person. Shining the Laser beam into
the eyes could result in eye damage.Warning
CAUTION: Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure. • This product has the...
