Panasonic Projector Pt L759xu Operating Instructions

11
Projector Screen
(approximately 7 m)
(approximately 7 m)
(approximately 7 m)
(approximately 7 m)

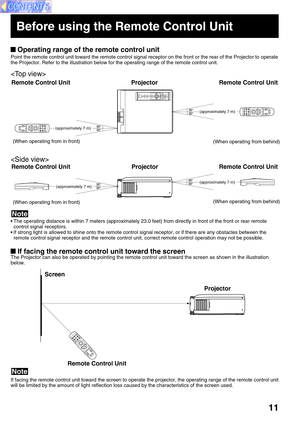

 Operating range of the remote control unit
Point the remote control unit toward the remote control signal receptor on the front or the rear of the Projector to operate
the Projector. Refer to the illustration below for the operating range of the remote control unit.
• The operating distance is within 7 meters (approximately 23.0 feet) from directly in front of the front or rear remote
control signal...

12

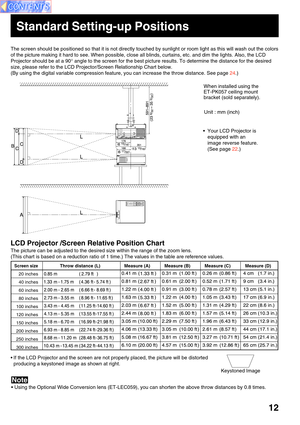

Standard Setting-up Positions
The screen should be positioned so that it is not directly touched by sunlight or room light as this will wash out the colors
of the picture making it hard to see. When possible, close all blinds, curtains, etc. and dim the lights. Also, the LCD
Projector should be at a 90° angle to the screen for the best picture results. To determine the distance for the desired
size, please refer to the LCD Projector/Screen Relationship Chart below.
(By using the digital variable...

13

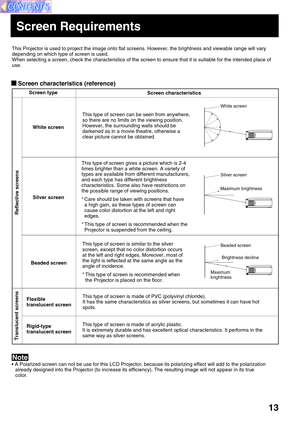

Screen Requirements
This Projector is used to project the image onto flat screens. However, the brightness and viewable range will vary
depending on which type of screen is used.
When selecting a screen, check the characteristics of the screen to ensure that it is suitable for the intended place of
use.
 Screen characteristics (reference)
Screen type
Screen characteristics
White screenThis type of screen can be seen from anywhere,
so there are no limits on the viewing position.
However, the...

14

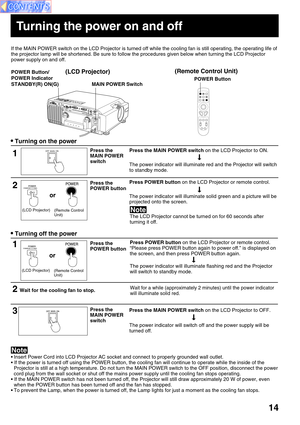

Turning the power on and off
If the MAIN POWER switch on the LCD Projector is turned off while the cooling fan is still operating, the operating life of
the projector lamp will be shortened. Be sure to follow the procedures given below when turning the LCD Projector
power supply on and off.
• Turning on the power
Press the
MAIN POWER
switch
Press the
POWER buttonPress the MAIN POWER switch on the LCD Projector to ON.
The power indicator will illuminate red and the Projector will switch
to standby...

15

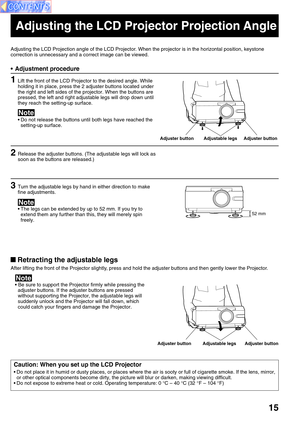

3Turn the adjustable legs by hand in either direction to make
fine adjustments.
•The legs can be extended by up to 52 mm. If you try to
extend them any further than this, they will merely spin
freely.
1Lift the front of the LCD Projector to the desired angle. While
holding it in place, press the 2 adjuster buttons located under
the right and left sides of the projector. When the buttons are
pressed, the left and right adjustable legs will drop down until
they reach the setting-up surface.
•Do not...

16

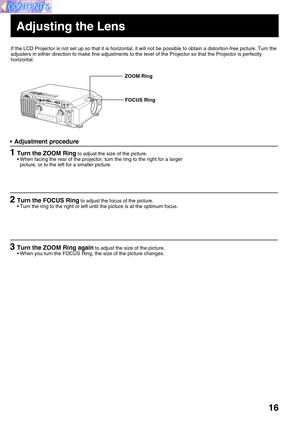

If the LCD Projector is not set up so that it is horizontal, it will not be possible to obtain a distortion-free picture. Turn the
adjusters in either direction to make fine adjustments to the level of the Projector so that the Projector is perfectly
horizontal.
ZOOM Ring
FOCUS Ring
Adjusting the Lens
•Adjustment procedure
1Turn the ZOOM Ring to adjust the size of the picture.
•When facing the rear of the projector, turn the ring to the right for a larger
picture, or to the left for a smaller...

17

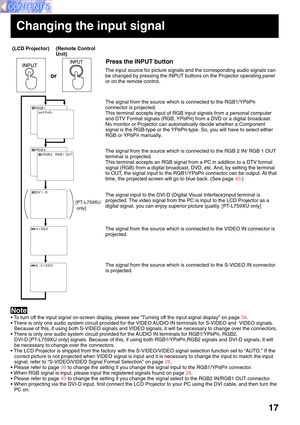

Press the INPUT button
(LCD Projector) (Remote ControlUnit)
The input source for picture signals and the corresponding audio signals\
 can
be changed by pressing the INPUT buttons on the Projector operating pane\
l
or on the remote control.
The signal from the source which is connected to the RGB1/YP
BPR
connector is projected.
This terminal accepts input of RGB input signals from a personal compute\
r
and DTV Format signals (RGB, YP
BPR) from a DVD or a digital broadcast.
No monitor or Projector...

18

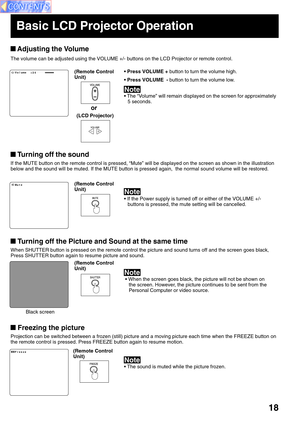

Basic LCD Projector Operation
 Turning off the Picture and Sound at the same time
When SHUTTER button is pressed on the remote control the picture and sound turns off and the screen goes black,
Press SHUTTER button again to resume picture and sound.
• When the screen goes black, the picture will not be shown on
the screen. However, the picture continues to be sent from the
Personal Computer or video source.
Black screen
(Remote Control
Unit)
 Turning off the sound
If the MUTE button on the remote...

19

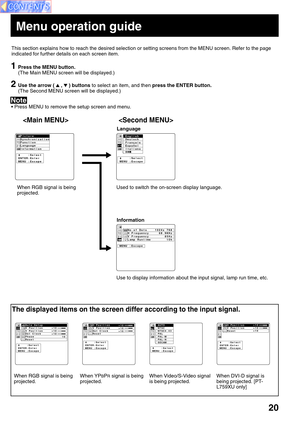

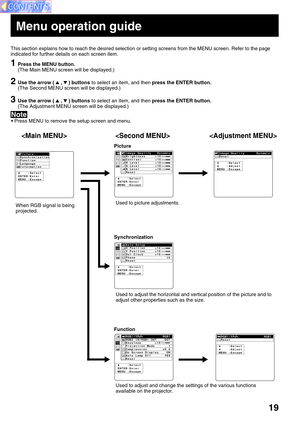

Menu operation guide
1Press the MENU button.
(The Main MENU screen will be displayed.)
2Use the arrow (  ,  ) buttons to select an item, and then press the ENTER button.
(The Second MENU screen will be displayed.)
3Use the arrow (  ,  ) buttons to select an item, and then press the ENTER button.
(The Adjustment MENU screen will be displayed.) This section explains how to reach the desired selection or setting screens from the MENU screen. Refer to the page
indicated for further details on each screen...

20
The displayed items on the screen differ according to the input signal.



s

o h
h
i
l
n s
c
a
o
a i
s
ç
ñ
i l
t
n
a
l g
u
a
p
a n
e
r
s
t E
D
F
E
I
t
e c
p e
a l
c e
s S
E :
:
U
N
E
M
8
z
z
h 6
H
H
0 7
K
5
1
9
8 x
.
  4
8 2
6 0 1


e
y
y
m s
c
c
i t
n
n
t o
e
e
n D
u
u
u
q
q
R f
e
e o
r
r
p .
F
F
m o


a N
H
V
L
e p a c s E : U N E M
Used to switch the on-screen display language.
Use to display information about the input signal, lamp run time, etc. When RGB signal is...
