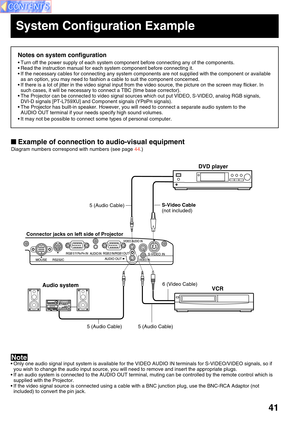

System Configuration Example
Notes on system configuration
• Turn off the power supply of each system component before connecting any\
 of the components.
• Read the instruction manual for each system component before connecting \
it.
• If the necessary cables for connecting any system components are not sup\
plied with the component or availableas an option, you may need to fashion a cable to suit the component conc\
erned.
• If there is a lot of jitter in the video signal input from the video sou\...

42

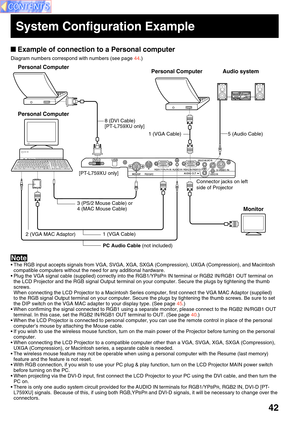

 Example of connection to a Personal computer
Diagram numbers correspond with numbers (see page 44.)
• The RGB input accepts signals from VGA, SVGA, XGA, SXGA (Compression), UXGA (Compression), and Macintosh
compatible computers without the need for any additional hardware.
• Plug the VGA signal cable (supplied) correctly into the RGB1/YP
BPR IN terminal or RGB2 IN/RGB1 OUT terminal on
the LCD Projector and the RGB signal Output terminal on your computer. Secure the plugs by tightening the thumb...

43

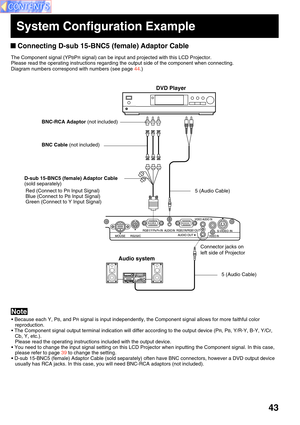

The Component signal (YPBPR signal) can be input and projected with this LCD Projector.
Please read the operating instructions regarding the output side of the component when connecting.
Diagram numbers correspond with numbers (see page 44.)
BNC-RCA Adaptor (not included)
D-sub 15-BNC5 (female) Adaptor Cable
(sold separately)
5 (Audio Cable)
• Because each Y, P
B, and PR signal is input independently, the Component signal allows for more faithful color
reproduction.
• The Component signal output...

44
1
2
3
4
5
6
7
8D-Sub mini
15-pin (male)
D-Sub mini
15-pin (female)
DVI-D 24-pin
(male)
13-pin round
(male)
13-pin round
(male)
M3 stereo mini
pin (male)
RCA pin
(male)
Type BD-Sub mini
15-pin (male)
MAC D-Sub
15-pin (male)
DVI-D 24-pin
(male)
Din 6-pin
(male)
Din 4-pin
(male)
RCA pin
(male) X 2
RCA pin
(male)
Type A VGA Cable
VGA MAC Adaptor
PS/2 Mouse Cable
MAC Mouse Cable
Audio Cable
Video Cable
USB Cable

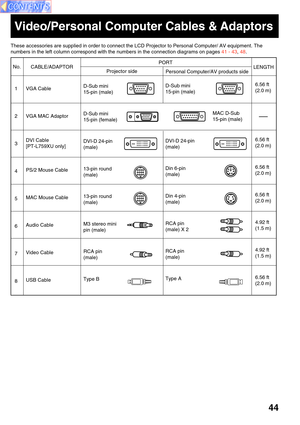

Video/Personal Computer Cables & Adaptors
These accessories are supplied in order to connect...

45

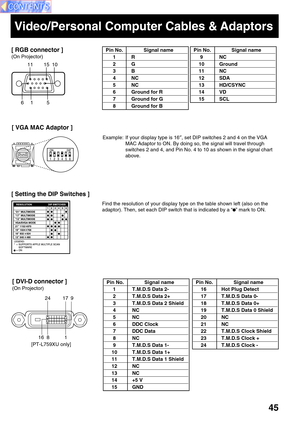

Video/Personal Computer Cables & Adaptors
Pin No. Signal name
1 T.M.D.S Data 2-
2 T.M.D.S Data 2+
3 T.M.D.S Data 2 Shield
4NC
5NC
6 DDC Clock
7 DDC Data
8NC
9 T.M.D.S Data 1-
10 T.M.D.S Data 1+
11 T.M.D.S Data 1 Shield
12 NC
13 NC
14 +5 V
15 GND
81 1617 9 24
[ DVI-D connector ]
(On Projector)
Pin No. Signal name
16 Hot Plug Detect
17 T.M.D.S Data 0-
18 T.M.D.S Data 0+
19 T.M.D.S Data 0 Shield
20 NC
21 NC
22 T.M.D.S Clock Shield
23 T.M.D.S Clock +
24 T.M.D.S Clock - Example: If your display type is...

46

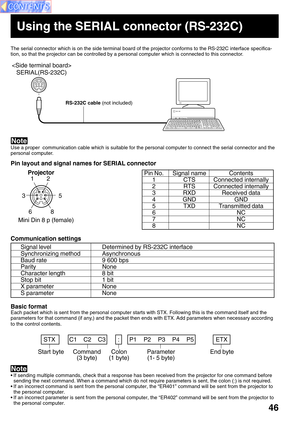

Using the SERIAL connector (RS-232C)
The serial connector which is on the side terminal board of the projector conforms to the RS-232C interface specifica-
tion, so that the projector can be controlled by a personal computer which is connected to this connector.
Use a proper  communication cable which is suitable for the personal computer to connect the serial connector and the
personal computer.
Each packet which is sent from the personal computer starts with STX. Following this is the command itself...

47

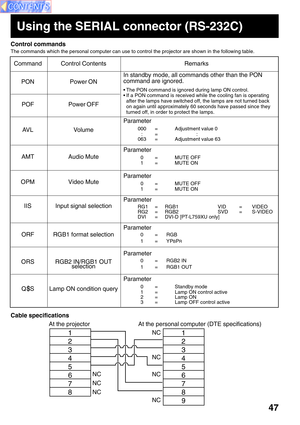

Command Control Contents Remarks
PON Power ON
POF Power OFF
AVL Volume
AMT Audio Mute
OPM Video Mute
IIS Input signal selection
ORF RGB1 format selection
ORS RGB2 IN/RGB1 OUT
selection
QS Lamp ON condition query
Control commands
The commands which the personal computer can use to control the projector are shown in the following table.
Cable specifications
In standby mode, all commands other than the PON
command are ignored.
• The PON command is ignored during lamp ON control.
• If a PON command is...

48

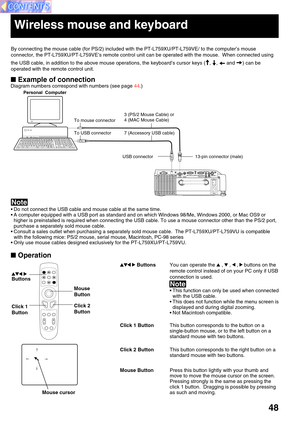

 Example of connection
Personal  Computer
13-pin connector (male) To mouse connector
Wireless mouse and keyboard

 Operation
Mouse cursor
To USB connector 7 (Accessory USB cable)
USB connector
Click 2
Button Mouse
ButtonClick 1
Button

Buttons
By connecting the mouse cable (for PS/2) included with the PT-L759XU/PT-L759VE/ to the computer’s mouse
connector, the PT-L759XU/PT-L759VE’s remote control unit can be operated with the mouse.  When connected using
the USB cable, in addition to the above mouse...

49

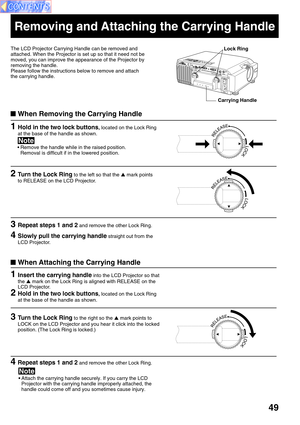

1Insert the carrying handle into the LCD Projector so that
the
 mark on the Lock Ring is aligned with RELEASE on the
LCD Projector.
Removing and Attaching the Carrying Handle
The LCD Projector Carrying Handle can be removed and
attached. When the Projector is set up so that it need not be
moved, you can improve the appearance of the Projector by
removing the handle.
Please follow the instructions below to remove and attach
the carrying handle.
When Removing the Carrying Handle
• Remove the handle...

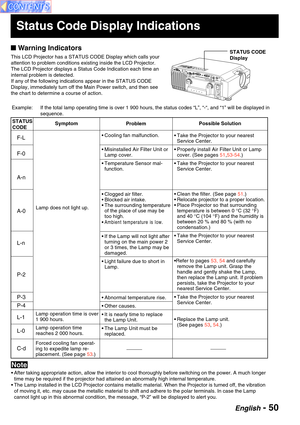

English - 50
• After taking appropriate action, allow the interior to cool thoroughly before switching on the power. A much longer
time may be required if the projector had attained an abnormally high internal temperature.
• The Lamp installed in the LCD Projector contains metallic material. When the Projector is turned off, the vibration
of moving it, etc. may cause the metallic material to shift and adhere to the polar terminals. In case the Lamp
cannot light up in this abnormal condition, the message,...
