Panasonic Projector PT-RQ13K User Manual

Thank you for purchasing this Panasonic product.
 ■The Operating Instructions correspond to the firmware’

s main version 2.00 and higher.
 ■This manual is common to all the models regardless of suffixes of the Model No.
 zfor India
P T- RQ13 K D
 zfor other countries or regions
P T- RQ13 K
 ■
Before operating this product, please read the instructions carefully and save this manual
for future use.
 ■Before using this product, be sure to read “Read this first!” (
x

pages   5   to   13).
TQBJ0930-2...

2 - ENGLISH
Contents
Contents
Read this first!    5
Chapter 1

Preparation
Precautions for use      17
Cautions when transporting

 17
Cautions when installing

 17
Security

 2 0
QUAD PIXEL
 DRIVE

 2 0
DIGIT
AL LINK

 2 1
Art-Net

 2 1
Early W
arning Software

 2 1
Disposal

 2 1
Cautions on use

 2 1
Accessories

 2 3
Optional accessories

 2 4
About your projector

 25
Remote control

 2 5
Projector body

 2 7
Names and functions of the...

ENGLISH - 3
Contents
[PICTURE] menu

 81
[PICTURE MODE]

 81
[CONTRAST]

 81
[BRIGHTNESS]

 8 2
[COLOR]

 8 2
[TINT]

 8 2
[COLOR
TEMPERATURE]

 8 2
[GAMMA]

 8 4
[SYSTEM DA
YLIGHT VIEW]

 85
[SHARPNESS]

 85
[NOISE REDUCTION]

 86
[DYNAMIC CONTRAST]

 86
[SYSTEM SELECT
OR]

 87
sRGB-compliant video

 88
[POSITION] menu

 89
[SHIFT]

 8 9
[ASPECT]

 8 9
[ZOOM]

 9 0
[GEOMETR
Y]

 9 1
[ADV
ANCED MENU] menu

 94
[DIGIT
AL...

4 - ENGLISH
Contents
[NETWORK] menu     161
[DIGIT
AL LINK MODE]

 161
[DIGIT
AL LINK SETUP]

 161
[DIGIT
AL LINK STATUS]

 162
[NETWORK SETUP]

 162
[NETWORK CONTROL]

 163
[NETWORK ST
ATUS]

 163
[DIGIT
AL LINK MENU]

 164
[Art-Net SETUP]

 164
[Art-Net CHANNEL
 SETTING]

 164
[Art-Net ST
ATUS]

 165
Network connection

 165
Connecting to a twisted-pair-cable transmitter


 166
Accessing from the web browser

 167
Chapter 5 Maintenance
Light...

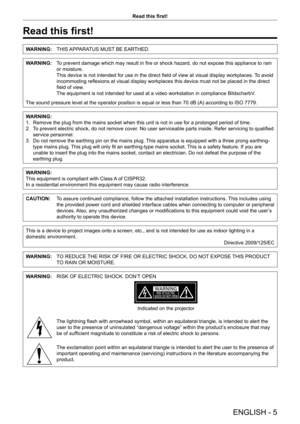

ENGLISH - 5
Read this first!
Read this first!
WARNING:THIS APPARATUS MUST BE EARTHED.
WARNING:To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or moisture.
This device is not intended for use in the direct field of view at visual display workplaces.  To avoid
incommoding reflexions at visual display workplaces this device must not be placed in the direct
field of view.
The equipment is not intended for used at a video workstation in compliance...

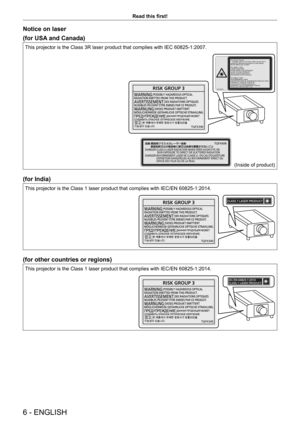

6 - ENGLISH
Read this first!
Notice on laser
(for USA and Canada)
This projector is the Class 3R laser product that complies with IEC 60825-1:2007.
529
529For North America
“Complies with 21 CFR Parts 1040.10 and 140.11
except for deviations pursuant to Laser Notice
No.50 dated june 24.2007”
IEC 60825-1:2007
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
WAVE LENGTH:448-462nm
MAXIMUM OUTPUT:333mW
IEC 60825-1:2007
RAYONNEMENT LASER
EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX...

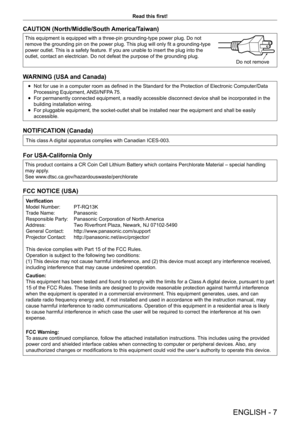

ENGLISH - 7
Read this first!
CAUTION (North/Middle/South America/Taiwan)
This equipment is equipped with a three-pin grounding-type power plug. Do not
remove the grounding pin on the power plug. This plug will only fit a grounding-type
power outlet. This is a safety feature. If you are unable to insert the plug into the
outlet, contact an electrician. Do not defeat the purpose of the grounding plug.
Do not remove
WARNING (USA and Canada)
 fNot for use in a computer room as defined in the Standard for...

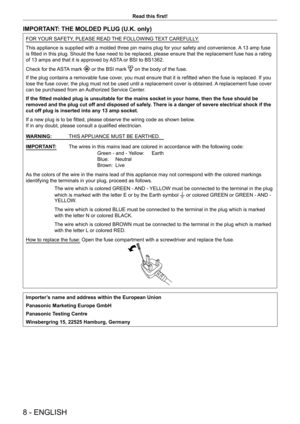

8 - ENGLISH
Read this first!
IMPORTANT: THE MOLDED PLUG (U.K. only)
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a molded three pin mains plug for your safety and convenience. A 13 amp fuse
is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating
of 13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
 or the BSI mark  on the body of the fuse.
If the plug contains a...

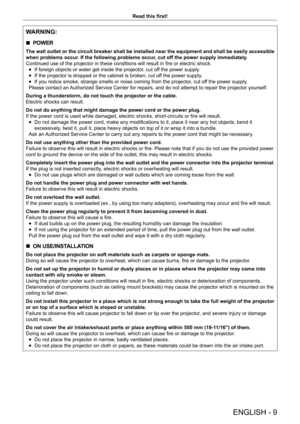

ENGLISH - 9
Read this first!
WARNING:
 rPOWER
The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible
when problems occur. If the following problems occur, cut off the power supply immediately.
Continued use of the projector in these conditions will result in fire or electric shock.
 fIf foreign objects or water get inside the projector

, cut off the power supply.
 fIf the projector is dropped or the cabinet is broken, cut of

f the power supply.
 fIf...

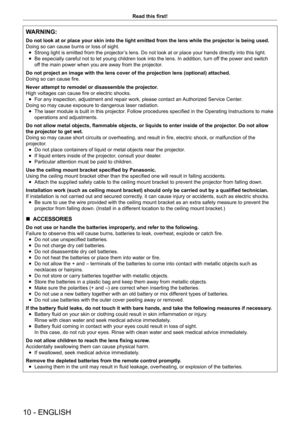

10 - ENGLISH
Read this first!
WARNING:
Do not look at or place your skin into the light emitted from the lens w\
hile the projector is being used.
Doing so can cause burns or loss of sight.
 fStrong light is emitted from the projector

’s lens. Do not look at or place your hands directly into this light.
 fBe especially careful not to let young children look into the lens. In addition, turn of
f the power and switch
of

f the main power when you are away from the projector.
Do not project an image with...
