Panasonic Projector PT-RQ13K User Manual

Chapter 1 Preparation — Precautions for use
ENGLISH - 21

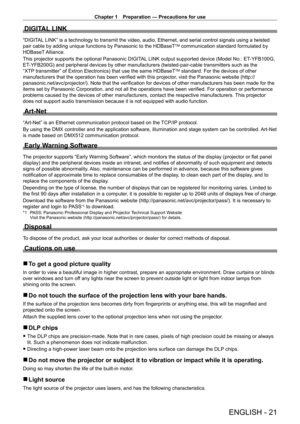

DIGITAL LINK
“DIGITAL LINK” is a technology to transmit the video, audio, Ethernet, and serial control signals using a twisted
pair cable by adding unique functions by Panasonic to the HDBaseTTM communication standard formulated by
HDBaseT Alliance.
This projector supports the optional Panasonic DIGITAL LINK output supported device (Model No.: ET
-

YFB100G,
ET
-

YFB200G) and peripheral devices by other manufacturers (twisted-pair-cable...

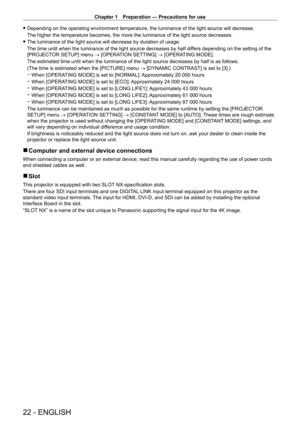

Chapter 1 Preparation — Precautions for use
22 - ENGLISH
 fDepending on the operating environment temperature, the luminance of the light source will decrease.
The higher the temperature becomes, the more the luminance of the light source decreases.
 fThe luminance of the light source will decrease by duration of usage.
The time until when the luminance of the light source decreases by half dif fers depending on the setting of the
[PROJECT

OR SETUP] menu → [OPERATION SETTING]  → [OPERATING MODE].
The...

Chapter 1 Preparation — Precautions for use
ENGLISH - 23

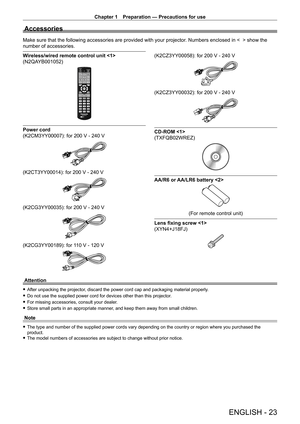

Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in <    > show the
number of accessories.
Wireless/wired remote control unit
(N2QAYB001052)
Power cord
(K2CM3YY00007): for 200   V - 240   V
(K2CT3YY00014): for 200 V - 240 V
(K2CG3YY00035): for 200 V - 240 V
(K2CG3YY00189): for 110 V - 120 V
(K2CZ3YY00058): for 200 V - 240 V
(K2CZ3YY00032): for 200 V - 240 V
CD-ROM
(TXFQB02WREZ)
AA/R6 or...

Chapter 1 Preparation — Precautions for use
24 - ENGLISH

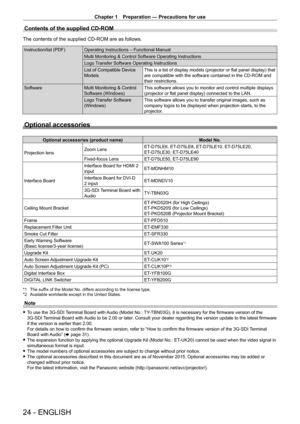

Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
Instruction/list (PDF) Operating Instructions – Functional ManualMulti Monitoring & Control Software Operating Instructions
Logo Transfer Software Operating Instructions
List of Compatible Device
ModelsThis is a list of display models (projector or flat panel display) that
are compatible with the software contained in the CD-ROM and
their restrictions.
Software...

Chapter 1 Preparation — About your projector
ENGLISH - 25

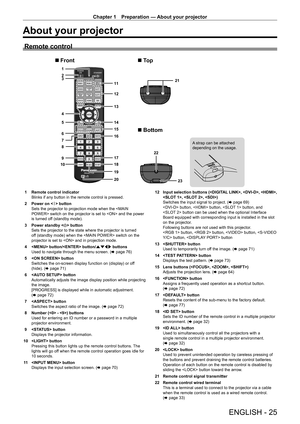

About your projector
Remote control
1
2
6 4
7 5
8
9
10 3
13 12 11
20
14
15
16
23
17
18
19 21
22
Front To p
Bottom
A strap can be attached
depending on the usage.
1 Remote control indicator
Blinks if any button in the remote control is pressed.
2

Power on < b

> button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
3

Power standby <
 v> button
Sets the projector...

Chapter 1 Preparation — About your projector
26 - ENGLISH

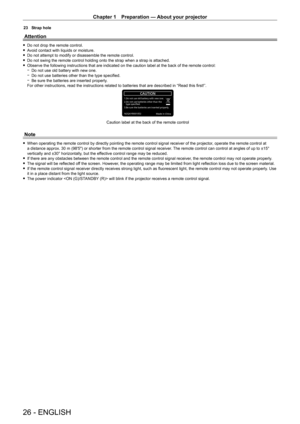

23 Strap hole
Attention
 fDo not drop the remote control. fA
void contact with liquids or moisture.
 fDo not attempt to modify or disassemble the remote control. fDo not swing the remote control holding onto the strap when a strap is attached. fObserve the following instructions that are indicated on the caution label at the back of the remote control: gDo not use old battery with new one. gDo not use batteries other than the type specified. gBe...

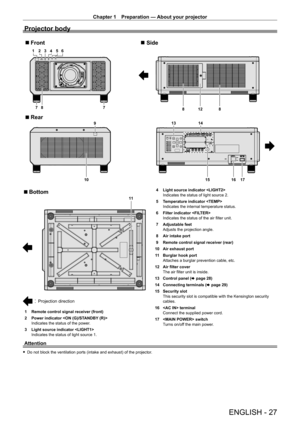

Chapter 1 Preparation — About your projector
ENGLISH - 27
Projector body
1 2 345 6
7 7
9
8
8
812
16 17
13
141510
Front Side
Rear
11
Projection direction
Bottom
1 Remote control signal receiver (front)
2
Power indicator
Indicates the status of the power.
3

Light source indicator
Indicates the status of light source 1. 4


Light source indicator
Indicates the status of light source 2.
5

T
 emperature indicator
Indicates the internal temperature status.
6
Filter indicator
Indicates the status...

Chapter 1 Preparation — About your projector
28 - ENGLISH

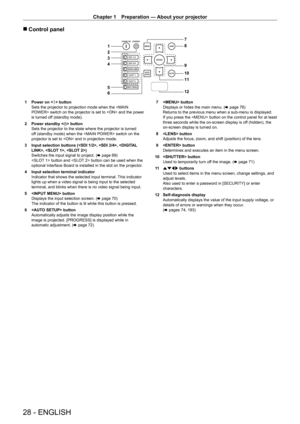

 rControl panel
7
8
9
10
11
12
1
2
3
4
5
6
1 Power on <
b > button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
2

Power standby <
 v> button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
3

Input selection buttons (, , , , )
Switches the input signal to...

Chapter 1 Preparation — About your projector
ENGLISH - 29

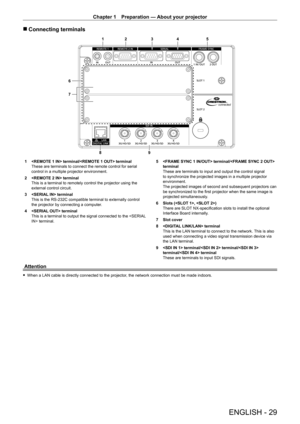

 rConnecting terminals
1 2 34 5
8 9
6
7
1  terminal/ terminal
These are terminals to connect the remote control for serial
control in a multiple projector environment.
2

 terminal
This is a terminal to remotely control the projector using the
external control circuit.
3


 terminal
This is the RS
- 232C compatible terminal to externally control
the projector by connecting a computer.
4

 terminal
This is a terminal to output the signal...

Chapter 1 Preparation — About your projector
30 - ENGLISH

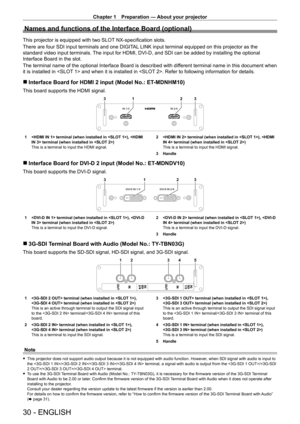

Names and functions of the Interface Board (optional)
This projector is equipped with two SLOT NX-specification slots.
There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the
standard video input terminals. The input for HDMI, DVI- D, and SDI can be added by installing the optional
Interface Board in the slot.
The terminal name of the optional Interface Board is described with dif ferent terminal...
