Panasonic Projector PT-RQ13K User Manual

Chapter 1 Preparation — About your projector
ENGLISH - 31

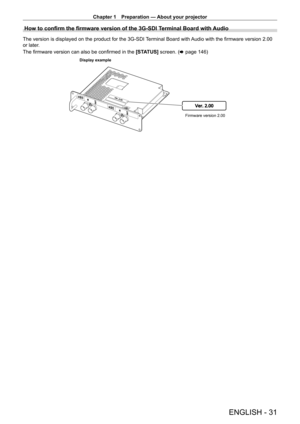

How to confirm the firmware version of the 3G-SDI Terminal Board with Audio
The version is displayed on the product for the 3G-SDI Terminal Board with Audio with the firmware version 2.00
or later.
The firmware version can also be confirmed in the [STATUS] screen. (x
  page   146)
Ver. 2.00
Firmware version 2.00
Display example

Chapter 1 Preparation — Preparing the remote control
32 - ENGLISH

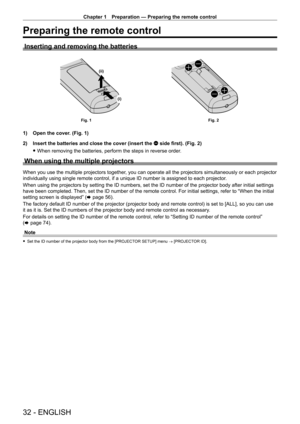

Preparing the remote control
Inserting and removing the batteries
(i)
(ii)
Fig. 1
Fig. 2
1) Open the cover. (Fig. 1)
2)
Insert the batteries and close the cover (insert the
 m side first). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order

.
When using the multiple projectors
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector
individually using...

Chapter 1 Preparation — Preparing the remote control
ENGLISH - 33

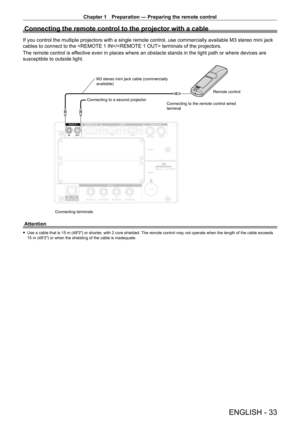

Connecting the remote control to the projector with a cable
If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack
cables to connect to the / terminals of the projectors.
The remote control is effective even in places where an obstacle stands in the light path or where devices are
susceptible to outside light.
Connecting terminalsConnecting to a second projector
M3 stereo mini...

34 - ENGLISH

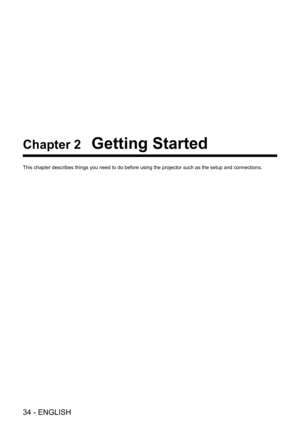

Chapter 2 Getting Started
This chapter describes things you need to do before using the projector \
such as the setup and connections.

Chapter 2 Getting Started — Setting up
ENGLISH - 35

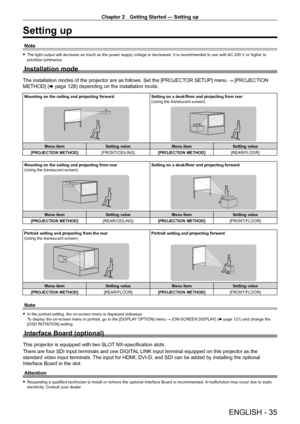

Setting up
Note
 fThe light output will decrease as much as the power supply voltage is decreased. It is recommended to use with  AC 200   V or higher to
prioritize luminance.
Installation mode
The installation modes of the projector are as follows. Set the [PROJECT OR SETUP] menu → [PROJECTION
METHOD] (x   page   128) depending on the installation mode.
Mounting on the ceiling and projecting forward Setting on a desk/floor and projecting from rear...

Chapter 2 Getting Started — Setting up
36 - ENGLISH

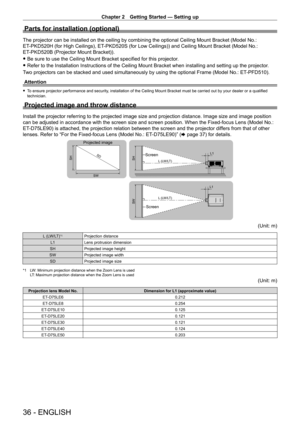

Parts for installation (optional)
The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.:
ET
-
PKD520H (for High Ceilings), ET
-
 PKD520S (for Low Ceilings)) and Ceiling Mount Bracket (Model No.:
ET
-

PKD520B (Projector Mount Bracket)).
 fBe sure to use the Ceiling Mount Bracket specified for this projector .
 fRefer to the Installation Instructions of the Ceiling Mount Bracket when installing and...

Chapter 2 Getting Started — Setting up
ENGLISH - 37

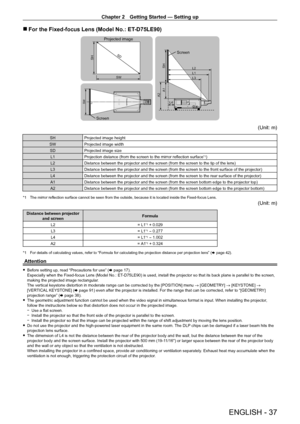

 rFor the Fixed-focus Lens (Model No.: ET- D75LE90)
SH
SW
SD
SH
A1
L3
L4
A2
L1 L2
SW
Projected image Screen
Screen
(Unit: m)
SH Projected image height
SW Projected image width
SD Projected image size
L1 Projection distance (from the screen to the mirror reflection surface
*1)
L2 Distance between the projector and the screen (from the screen to the tip of the lens)
L3 Distance between the projector and the screen (from the screen to the front surface of...

Chapter 2 Getting Started — Setting up
38 - ENGLISH

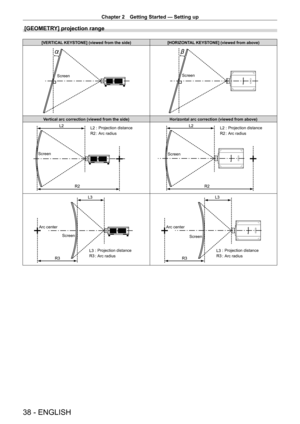

[GEOMETRY] projection range
[VERTICAL KEYSTONE] (viewed from the side)[HORIZONTAL KEYSTONE] (viewed from above)
ScreenScreen
Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)
ScreenProjection distance
Arc radiusScreen Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radiusArc centerScreen
Projection distance
Arc radius

Chapter 2 Getting Started — Setting up
ENGLISH - 39

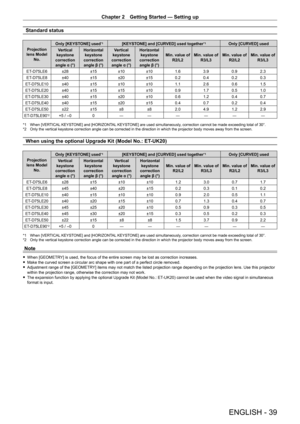

Standard status
Projection
lens Model  No. Only [KEYSTONE] used
*1[KEYSTONE] and [CURVED] used together*1Only [CURVED] used
Vertical
keystone
correction  angle α (°) Horizontal
keystone
correction  angle β (°) Vertical
keystone
correction  angle α (°) Horizontal
keystone
correction  angle β (°) Min. value of
R2/L2 Min. value of
R3/L3 Min. value of
R2/L2 Min. value of
R3/L3
ET
-

D75LE6 ±28 ±15±10 ±10 1.63.9 0.92.3
ET
-

D75LE8 ±40 ±15±20...

Chapter 2 Getting Started — Setting up
40 - ENGLISH

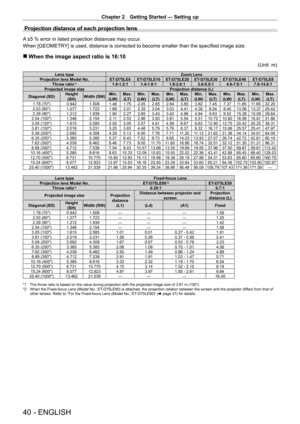

Projection distance of each projection lens
A ±5 % error in listed projection distances may occur.
When [GEOMETR Y] is used, distance is corrected to become smaller than the specified image size.
 rWhen the image aspect ratio is 16:10
(Unit: m)
Lens type Zoom Lens
Projection lens Model No. ET-
D75LE6 ET- D75LE10 ET- D75LE20 ET- D75LE30 ET- D75LE40 ET- D75LE8
Throw ratio
*11.0-1.2:1 1.4 - 1.8:1 1.8 - 2.6:1 2.6 - 5.0:1 4.9 - 7.9:1 7.9 - 14.8:1
Projected...
