Panasonic Projector PT-RQ13K User Manual

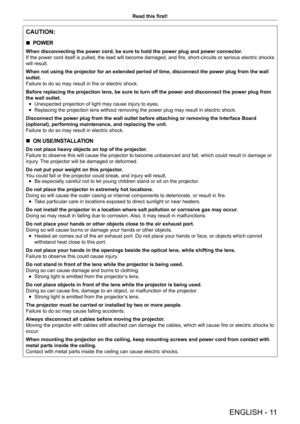

ENGLISH - 11
Read this first!
CAUTION:
 rPOWER
When disconnecting the power cord, be sure to hold the power plug and power connector
.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks
will result.
When not using the projector for an extended period of time, disconnect the power plug from the wall
outlet.
Failure to do so may result in fire or electric shock.
Before replacing the projection lens, be sure to turn off the power and...

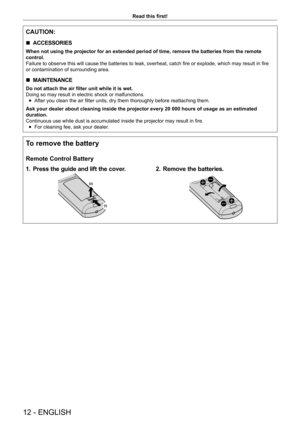

12 - ENGLISH
Read this first!
CAUTION:
 rACCESSORIES
When not using the projector for an extended period of time, remove the batteries from the remote
control.
Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire
or contamination of surrounding area.
 rMAINTENANCE
Do not attach the air filter unit while it is wet.
Doing so may result in electric shock or malfunctions.
 fAfter you clean the air filter units, dry them thoroughly before...

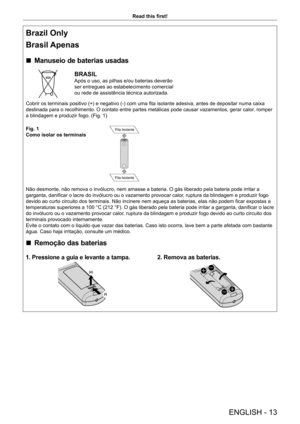

ENGLISH - 13
Read this first!
Brazil Only
Brasil Apenas
 rManuseio de baterias usadas
BRASIL
Após o uso, as pilhas e/ou baterias deverão
ser entregues ao estabelecimento comercial
ou rede de assistência técnica autorizada.
Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa
destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor , romper
a blindagem e produzir fogo. (Fig. 1)
Fig. 1
Como isolar os...

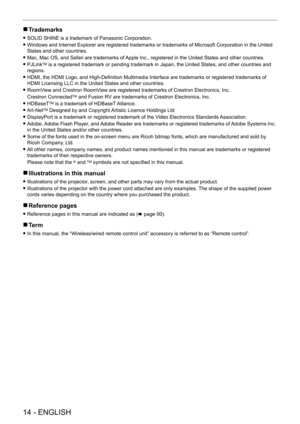

14 - ENGLISH
 rTrademarks
 fSOLID SHINE is a trademark of Panasonic Corporation.
 fWindows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United
States and other countries.
 fMac, Mac OS, and Safari are trademarks of

Apple Inc., registered in the United States and other countries.
 fPJLinkTM is a registered trademark or pending trademark in Japan, the United States, and other countries and
regions.
 f HDMI, the HDMI Logo, and High-Definition Multimedia...

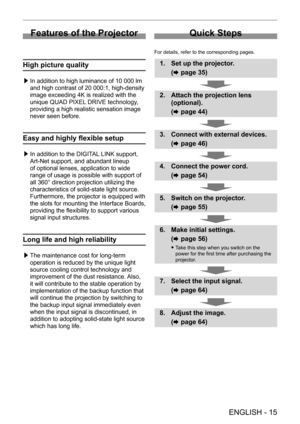

ENGLISH - 15
Features of the Projector
High picture quality
 /£In addition to high luminance of 10   000   lm
and high contrast of 20   000:1, high-density
image exceeding 4K is realized with the
unique QUAD PIXEL DRIVE technology,
providing a high realistic sensation image
never seen before.
Easy and highly flexible setup
 /£ In addition to the DIGIT AL LINK support,
Art-Net support, and abundant lineup
of optional lenses, application to wide
range of usage is possible with support of
all...

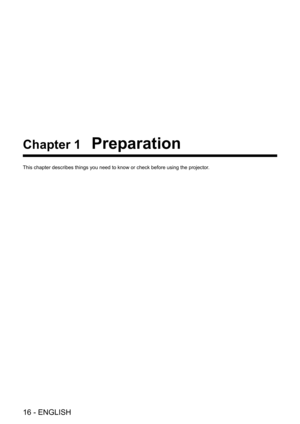

16 - ENGLISH
Chapter 1 Preparation
This chapter describes things you need to know or check before using the projector.

Chapter 1 Preparation — Precautions for use

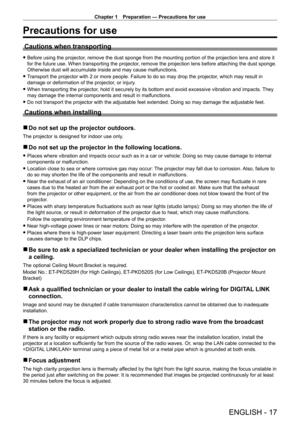

ENGLISH - 17
Precautions for use
Cautions when transporting
 fBefore using the projector , remove the dust sponge from the mounting portion of the projection lens and store it
for the future use. When transporting the projector, remove the projection lens before attaching the dust sponge.
Otherwise dust will accumulate inside and may cause malfunctions.
 f T

ransport the projector with 2 or more people. Failure to do so may drop the projector , which may...

Chapter 1 Preparation — Precautions for use

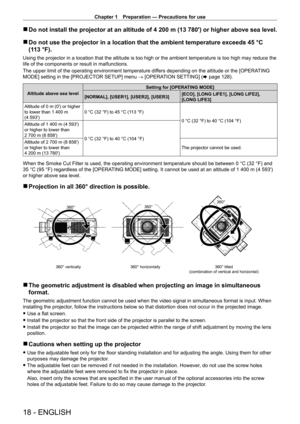

18 - ENGLISH
 rDo not install the projector at an altitude of 4   200   m (13   780') or higher above sea level.
 rDo not use the projector in a location that the ambient temperature exce\
eds 45

  °C
(113
  °F).
Using the projector in a location that the altitude is too high or the ambient temperature is too high may reduce the
life of the components or result in malfunctions.
The upper limit of the operating environment temperature differs depending on...

Chapter 1 Preparation — Precautions for use

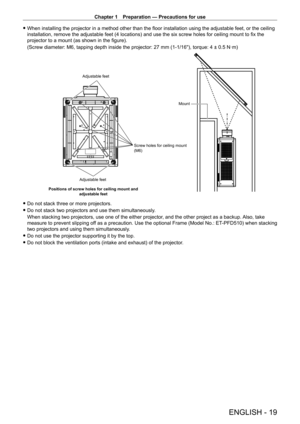

ENGLISH - 19
 fWhen installing the projector in a method other than the floor installation using the adjustable feet, or the ceiling
installation, remove the adjustable feet (4 locations) and use the six screw holes for ceiling mount to fix the
projector to a mount (as shown in the figure).
(Screw diameter: M6, tapping depth inside the projector: 27
  mm (1-1/16"), torque: 4 ± 0.5   N·m)
Screw holes for ceiling mount
(M6)
Adjustable feet
Mount
Positions...

Chapter 1 Preparation — Precautions for use

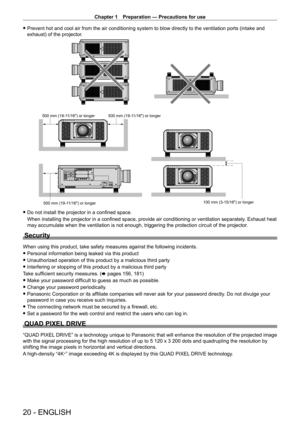

20 - ENGLISH
 fPrevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and
exhaust) of the projector
.
100 mm (3-15/16) or longer
500 mm (19-11/16) or longer 500 mm (19-11/16) or longer
500 mm (19-11/16) or longer
 f Do not install the projector in a confined space.
When installing the projector in a confined space, provide air conditioning or ventilation separately . Exhaust heat
may accumulate when the...
