Panasonic Projector PT-RS30K User Manual

Chapter 1 Preparation — Precautions for use
ENGLISH - 21

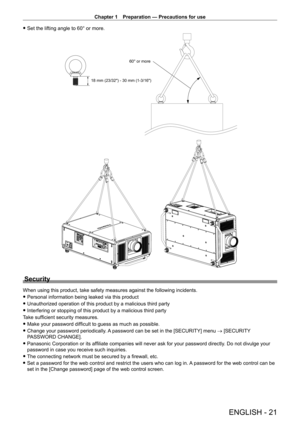

 fSet the lifting angle to 60° or more.
18 mm (23/32) - 30 mm (1-3/16) 60° or more
Security
When using this product, take safety measures against the following inci\
dents.
 f
Personal information being leaked via this product
 fUnauthorized operation of this product by a malicious third party
 fInterfering or stopping of this product by a malicious third party
T

ake sufficient security measures.
 f Make your password difficult to guess as much as...

Chapter 1 Preparation — Precautions for use
22 - ENGLISH

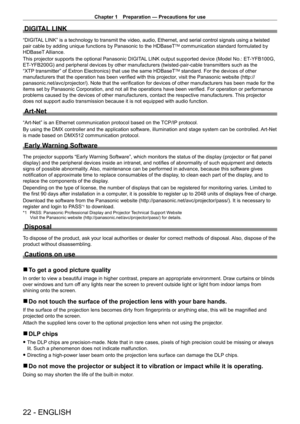

DIGITAL LINK
“DIGITAL LINK” is a technology to transmit the video, audio, Ethernet, and serial control signals using a twisted
pair cable by adding unique functions by Panasonic to the HDBaseTTM communication standard formulated by
HDBaseT Alliance.
This projector supports the optional Panasonic DIGITAL LINK output supported device (Model No.: ET
-

YFB100G,
ET
-

YFB200G) and peripheral devices by other manufacturers (twisted-pair-cable...

Chapter 1 Preparation — Precautions for use
ENGLISH - 23

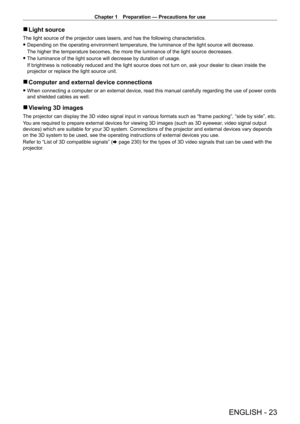

 rLight source
The light source of the projector uses lasers, and has the following cha\
racteristics.
 fDepending on the operating environment temperature, the luminance of the\
 light source will decrease.
The higher the temperature becomes, the more the luminance of the light \
source decreases.
 fThe luminance of the light source will decrease by duration of usage.
If brightness is noticeably reduced and the light source does not turn o\
n, ask...

Chapter 1 Preparation — Precautions for use
24 - ENGLISH

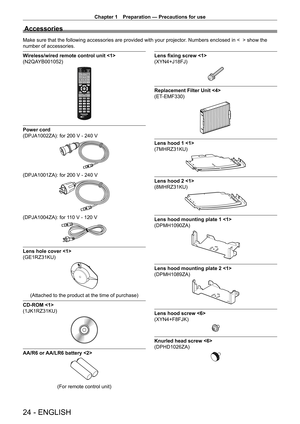

Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in <    > show the
number of accessories.
Wireless/wired remote control unit
(N2QAYB001052)
Power cord
(DPJA1002ZA): for 200   V - 240   V
(DPJA1001ZA): for 200 V - 240 V
(DPJA1004ZA): for 110 V - 120 V
Lens hole cover
(GE1RZ31KU)
(Attached to the product at the time of purchase)
CD-ROM
(1JK1RZ31KU)
AA/R6 or AA/LR6 battery
(For remote...

Chapter 1 Preparation — Precautions for use
ENGLISH - 25

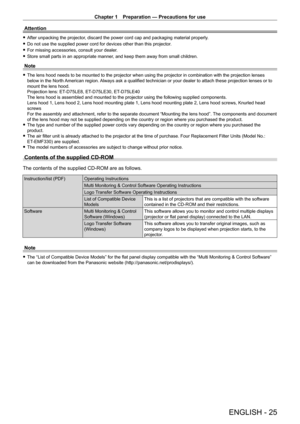

Attention
 fAfter unpacking the projector , discard the power cord cap and packaging material properly.
 fDo not use the supplied power cord for devices other than this projector\

.
 fFor missing accessories, consult your dealer

.
 fStore small parts in an appropriate manner

, and keep them away from small children.
Note
 fThe lens hood needs to be mounted to the projector when using the projec\
tor in combination with the projection lenses...

Chapter 1 Preparation — Precautions for use
26 - ENGLISH
Optional accessories

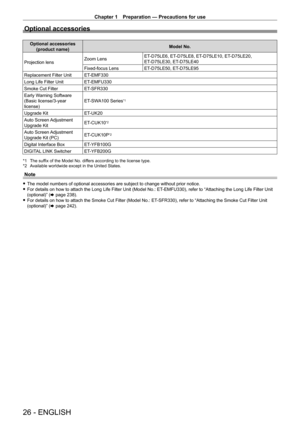

Optional accessories (product name) Model No.
Projection lens Zoom Lens
ET
-

D75LE6, ET
-
 D75LE8, ET
-
 D75LE10, ET
-
 D75LE20,
ET
-

D75LE30, ET
-
 D75LE40
Fixed-focus Lens ET
-

D75LE50, ET
-
 D75LE95
Replacement Filter Unit ET
-

EMF330
Long Life Filter Unit ET
-

EMFU330
Smoke Cut Filter ET
-

SFR330
Early Warning Software
(Basic license/3-year
license) ET
-

SWA100   Series
*1
Upgrade KitET- UK20
Auto  Screen...

Chapter 1 Preparation — About your projector
ENGLISH - 27

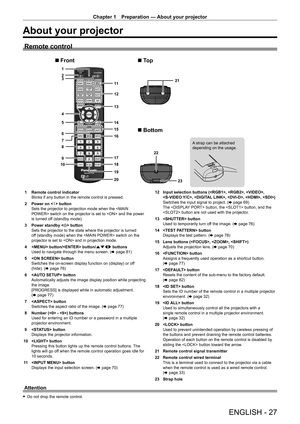

About your projector
Remote control
1
2
6 4
7 5
8
9
10 3
13 12 11
20
14
15
16
23
17
18
19 21
22
Front To p
Bottom
A strap can be attached
depending on the usage.
1 Remote control indicator
Blinks if any button in the remote control is pressed.
2

Power on < b

> button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
3

Power standby <
 v> button
Sets the projector...

Chapter 1 Preparation — About your projector
28 - ENGLISH

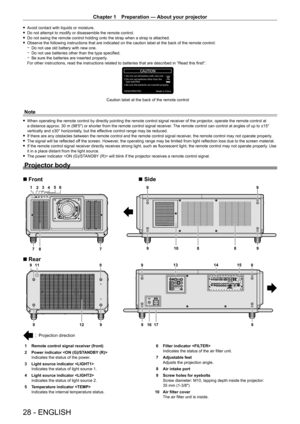

 fAvoid contact with liquids or moisture. fDo not attempt to modify or disassemble the remote control. fDo not swing the remote control holding onto the strap when a strap is a\
ttached. fObserve the following instructions that are indicated on the caution label at the back of the remote control: gDo not use old battery with new one. gDo not use batteries other than the type specified. gBe sure the batteries are inserted properly

.
For other...

Chapter 1 Preparation — About your projector
ENGLISH - 29

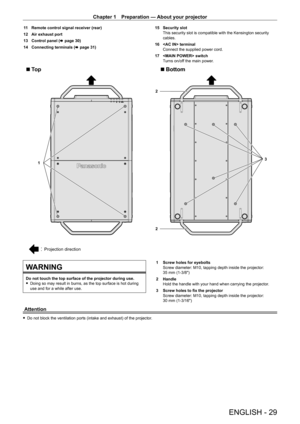

11 Remote control signal receiver (rear)
12
Air exhaust port
13


Control panel ( x

  page   30)
14

Connecting terminals ( x

  page   31)15
 Security slot
This security slot is compatible with the Kensington security
cables.
16

 terminal
Connect the supplied power cord.
17


 switch
T

urns on/off the main power.
3
2
1
2
Projection direction
Bottom
To p
WARNING
Do not touch the top surface of the projector during use. f Doing so may...

Chapter 1 Preparation — About your projector
30 - ENGLISH
 rControl panel
11
12
13
14
15
17 16
1
2
3
4
5
6
7
8
9
10
1 Power on < b > button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
2

Power standby <
 v> button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
3

 button
Switches the input to RGB1.
4


 button...
