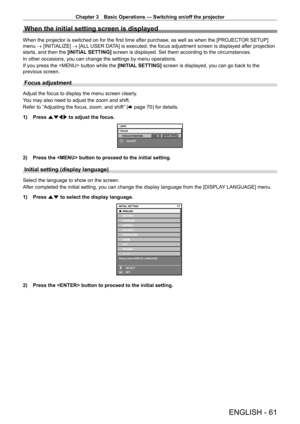

Panasonic Projector PT-RS30K User Manual

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 61
When the initial setting screen is displayed
When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP]
menu → [INITIALIZE]  → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection
starts, and then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.
In other occasions, you can change the settings by menu operations.
If...

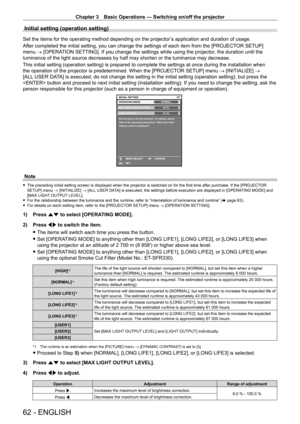

Chapter 3 Basic Operations — Switching on/off the projector
62 - ENGLISH
Initial setting (operation setting)
Set the items for the operating method depending on the projector’s application and duration of usage.
After completed the initial setting, you can change the settings of each item from the [PROJECT OR SETUP]
menu → [OPERATION SETTING]. If you change the settings while using the projector, the duration until the
luminance of the light source decreases by half may shorten or the lumin\
ance may...

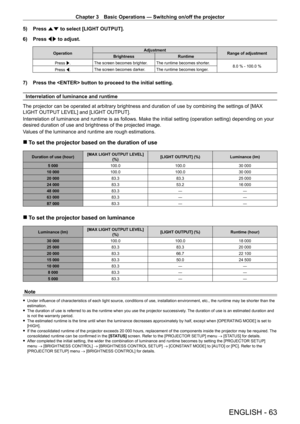

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 63
5) Press as to select [LIGHT OUTPUT].
6)
Press
 qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
  % - 100.0   %
Press q. The screen becomes darker. The runtime becomes longer.
7) Press the  button to proceed to the initial setting.
Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and...

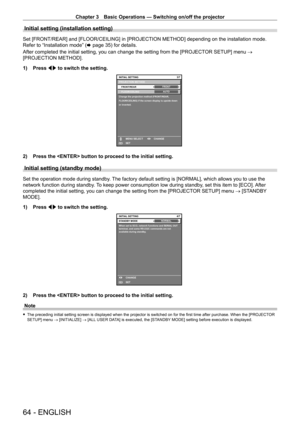

Chapter 3 Basic Operations — Switching on/off the projector
64 - ENGLISH
Initial setting (installation setting)
Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode.
Refer to “Installation mode” (x
  page   35) for details.
After completed the initial setting, you can change the setting from the [PROJECT OR SETUP] menu →
[PROJECTION METHOD].
1)

Press
 qw to switch the setting.
3/7
ENTERSET CHANGE
Change the projection method (FRONT/REAR,
FLOOR/CEILING) if...

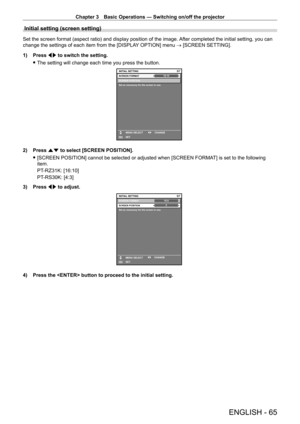

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 65
Initial setting (screen setting)
Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can
change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
1)

Press
 qw to switch the setting.
 fThe setting will change each time you press the button.
16:105/7
SCREEN POSITION
Set as necessary for the screen in use.
INITIAL SETTING
SET CHANGE
MENU...

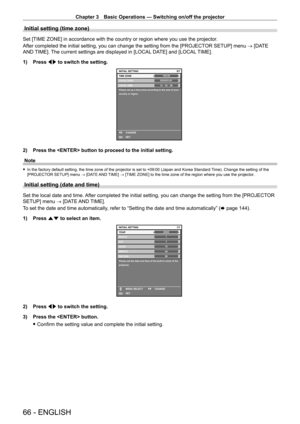

Chapter 3 Basic Operations — Switching on/off the projector
66 - ENGLISH
Initial setting (time zone)
Set [TIME ZONE] in accordance with the country or region where you use the projector.
After completed the initial setting, you can change the setting from the [PROJECT OR SETUP] menu → [DATE
AND TIME]. The current settings are displayed in [LOCAL DATE] and [LOCAL TIME].
1)

Press
 qw to switch the setting.
+09:006/7
20XX/01/01123456LOCAL DATE
LOCAL TIME
Please set up a time zone according to the...

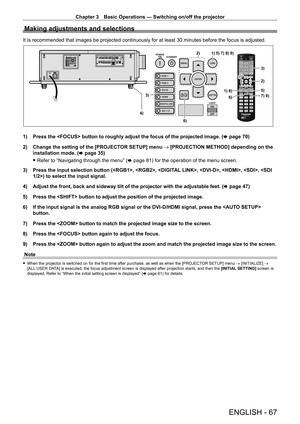

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 67
Making adjustments and selections
It is recommended that images be projected continuously for at least 30 \
minutes before the focus is adjusted.
1) 8)5)
6)
3)
7) 9)3)
2)
4) 1) 5) 7) 8) 9)
2)
6)
1) Press the  button to roughly adjust the focus of the projected im\
age. ( x   page   70)
2)
Change the setting of the [PROJECT
 OR SETUP] menu → [PROJECTION METHOD] depending on the
installation mode. ( x
  page   35)
 fRefer to...

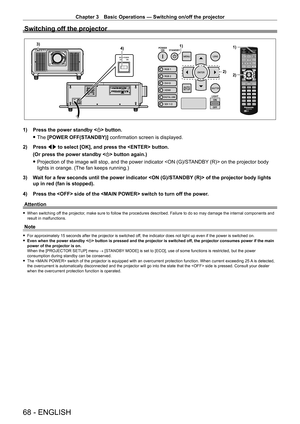

Chapter 3 Basic Operations — Switching on/off the projector
68 - ENGLISH
Switching off the projector
1)
2)
1)
4)3)
2)
1) Press the power standby < v> button.
 fThe

[POWER OFF(STANDBY)] confirmation screen is displayed.
2)

Press
 qw to select [OK], and press the  button.
(Or press the power standby < v> button again.)
 fProjection of the image will stop, and the power indicator  on the projector body
lights in orange. (The fan keeps running.)
3)

W
 ait for a few seconds until the power indicator...

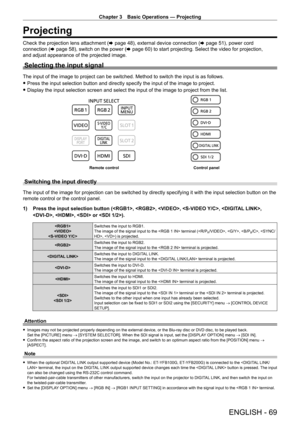

Chapter 3 Basic Operations — Projecting
ENGLISH - 69
Projecting
Check the projection lens attachment (x   page   48), external device connection (x   page   51), power cord
connection ( x
  page   58), switch on the power ( x
  page   60) to start projecting. Select the video for projection,
and adjust appearance of the projected image.
Selecting the input signal
The input of the image to project can be switched. Method to switch the input is as follows.
 f Press the input selection button and directly...

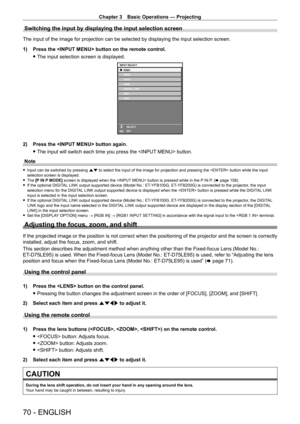

Chapter 3 Basic Operations — Projecting
70 - ENGLISH
Switching the input by displaying the input selection screen
The input of the image for projection can be selected by displaying the \
input selection screen.
1)
Press the  button on the remote control.
 fThe input selection screen is displayed.
INPUT SELECT
RGB1
RGB2
DVI-D
HDMI
DIGITAL LINK
SDI1
SDI2
SELECT
SET
ENTER
2) Press the  button again.
 fThe input will switch each time you press the  button.
Note
 f Input can be switched by pressing  as  to...
