Panasonic Projector PT-RS30K User Manual

Chapter 3 Basic Operations — Projecting

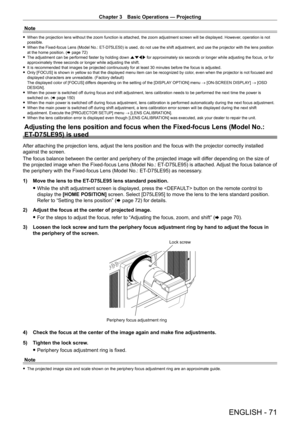

ENGLISH - 71
Note
 fWhen the projection lens without the zoom function is attached, the zoom adjustment screen will be displayed. However , operation is not
possible.
 f When the Fixed-focus Lens (Model No.: ET-

D75LE50) is used, do not use the shift adjustment, and use the projector with the lens position
at the home position. (x
  page   72)
 fThe adjustment can be performed faster by holding down  asqw for approximately six seconds or longer while adjusting...

Chapter 3 Basic Operations — Projecting

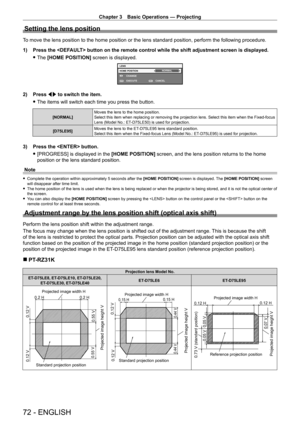

72 - ENGLISH
Setting the lens position
To move the lens position to the home position or the lens standard posit\
ion, perform the following procedure.
1)
Press the  button on the remote control while the shift adjustment screen is dis\
played.
 fThe

[HOME POSITION]  screen is displayed.
LENS
HOME POSITION
EXECUTE CANCEL
ENTERMENU
NORMAL
CHANGE
2) Press
qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Moves the lens to the...

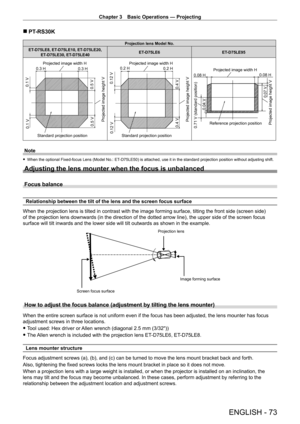

Chapter 3 Basic Operations — Projecting
ENGLISH - 73
 rPT- RS30K
Projection lens Model No.
ET
-

D75LE8, ET
-

D75LE10, ET
-

D75LE20,
ET
-

D75LE30, ET
-

D75LE40 ET
-

D75LE6 ET
-

D75LE95
Projected image width H
Standard projection position
Projected image height V
0.3 H 0.3 H
0.1 V
0.1 V
0.5 V 0.5 V
Projected image width H
Standard projection position
Projected image height V
0.2 H 0.2 H
0.4 V0.4 V0.12 V
0.12 V
Projected image width H
Reference projection position 0.08 H
0.08 H
Projected image...

Chapter 3 Basic Operations — Projecting

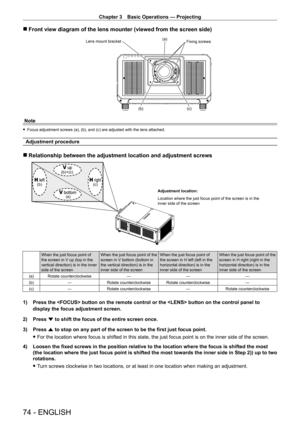

74 - ENGLISH
 rFront view diagram of the lens mounter (viewed from the screen side)
(a)
(b) (c)
Lens mount bracket
Fixing screws
Note
 fFocus adjustment screws (a), (b), and (c) are adjusted with the lens attached.
Adjustment procedure
 rRelationship between the adjustment location and adjustment screws
(b) (c)
(b)+(c)
(a)
Adjustment location:
Location where the just focus point of the screen is in the
inner side of the screen
When the just focus point of
the...

Chapter 3 Basic Operations — Projecting

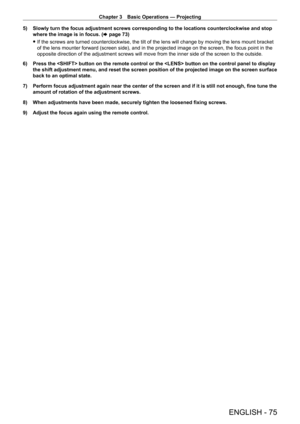

ENGLISH - 75
5) Slowly turn the focus adjustment screws corresponding to the locations c\
ounterclockwise and stop
where the image is in focus. (x
  page   73)
 fIf the screws are turned counterclockwise, the tilt of the lens will cha\
nge by moving the lens mount bracket
of the lens mounter forward (screen side), and in the projected image on the screen, the focus point in the
opposite direction of the adjustment screws will move from the inner sid\
e of the...

Chapter 3 Basic Operations — Operating with the remote control

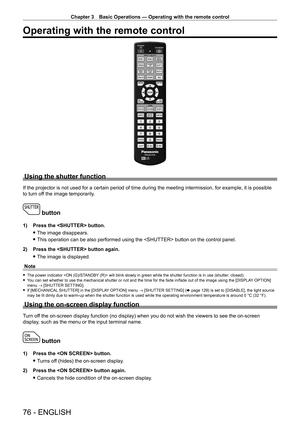

76 - ENGLISH
Operating with the remote control
Using the shutter function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible
to turn off the image temporarily.
 button
1) Press the  button.
 fThe image disappears.
 fThis operation can be also performed using the  button on the control panel.
2)


Press the  button again.
 fThe image is displayed.
Note
 f The power indicator...

Chapter 3 Basic Operations — Operating with the remote control

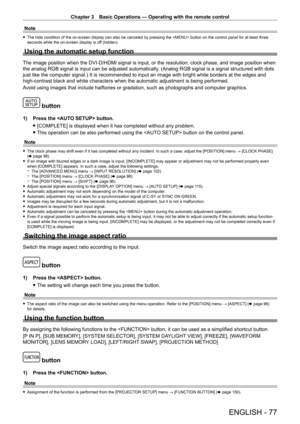

ENGLISH - 77
Note
 fThe hide condition of the on-screen display can also be canceled by pressing the  button on the control panel for at least three
seconds while the on-screen display is of
f (hidden).
Using the automatic setup function
The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when
the analog RGB signal is input can be adjusted automatically . (Analog RGB signal is a signal...

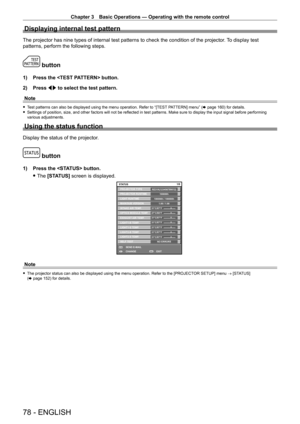

Chapter 3 Basic Operations — Operating with the remote control
78 - ENGLISH
Displaying internal test pattern
The projector has nine types of internal test patterns to check the cond\
ition of the projector. To display test
patterns, perform the following steps.
 button
1) Press the  button.
2)
Press
 qw to select the test pattern.
Note
 f Test patterns can also be displayed using the menu operation. Refer to “[TEST PATTERN] menu” (x   page   160) for details. fSettings of position, size, and other...

Chapter 3 Basic Operations — Operating with the remote control

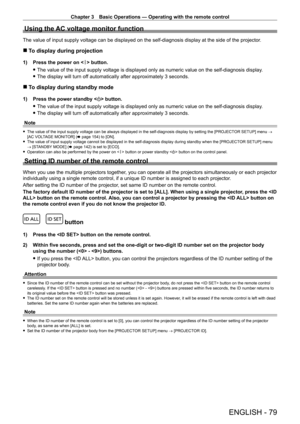

ENGLISH - 79
Using the AC voltage monitor function
The value of input supply voltage can be displayed on the self-diagnosis\
 display at the side of the projector.
 rTo display during projection
1) Press the power on < b > button.
 fThe value of the input supply voltage is displayed only as numeric value\
 on the self-diagnosis display

.
 fThe display will turn of

f automatically after approximately 3 seconds.
 rTo display during standby...

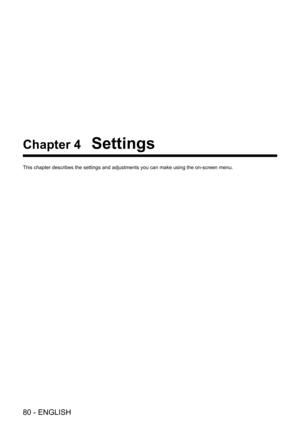

80 - ENGLISH
Chapter 4 Settings
This chapter describes the settings and adjustments you can make using t\
he on-screen menu.
