Panasonic Projector PT-RS30K User Manual

Chapter 2 Getting Started — Connecting
ENGLISH - 51
Connecting
Before connecting
 fBefore connecting, carefully read the operating instructions for the external device to be connected.
 fT

urn off the power of all devices before connecting cables.
 fT

ake note of the following points before connecting the cables. Failure t\
o do so may result in malfunctions.
 g When connecting a cable to a device connected to the projector or the pr\
ojector itself, touch any nearby
metallic objects to eliminate...

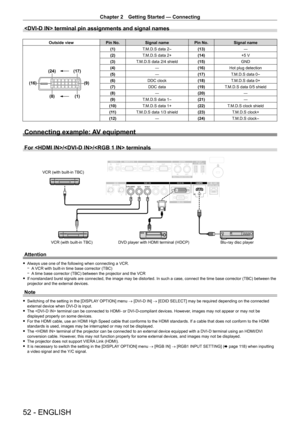

Chapter 2 Getting Started — Connecting
52 - ENGLISH
 terminal pin assignments and signal names
Outside viewPin No.Signal name Pin No.Signal name
(17)
(24)
(16)
(9)
(1)
(8)
(1) T.M.D.S data 2-(13) ―
(2) T.M.D.S data 2+ (14)+5
  V
(3) T.M.D.S data 2/4 shield (15)GND
(4) ―(16)Hot plug detection
(5) ―(17)T.M.D.S data 0
-
(6) DDC clock (18)T.M.D.S data 0+
(7) DDC data (19)T.M.D.S data 0/5 shield
(8) ―(20) ―
(9) T.M.D.S data 1
-(21) ―
(10) T.M.D.S data 1+ (22)T.M.D.S clock shield
(11) T.M.D.S data 1/3 shield...

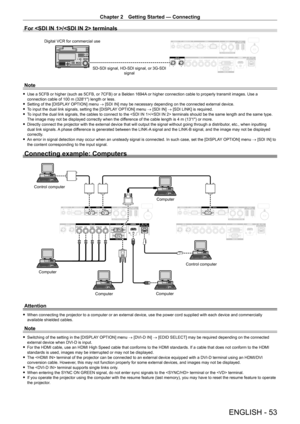

Chapter 2 Getting Started — Connecting
ENGLISH - 53
For / terminals
SD-SDI signal, HD-SDI signal, or 3G-SDI signal
Digital VCR for commercial use
Note
 f
Use a 5CFB or higher (such as 5CFB, or 7CFB) or a Belden 1694A  or higher connection cable to properly transmit images. Use a
connection cable of 100   m (328'1") length or less.
 fSetting of the [DISPLA

Y OPTION] menu → [SDI IN] may be necessary depending on the connected external device.
 fT

o input the dual link signals, setting the...

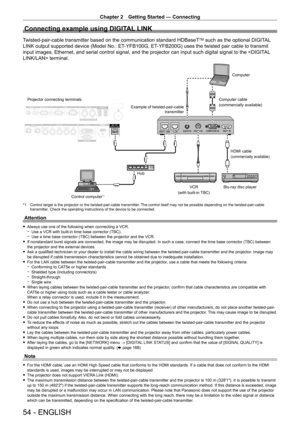

Chapter 2 Getting Started — Connecting
54 - ENGLISH
Connecting example using DIGITAL LINK
Twisted-pair-cable transmitter based on the communication standard HDBaseTTM such as the optional DIGITAL
LINK output supported device (Model No.: ET
-

YFB100G, ET
-

YFB200G) uses the twisted pair cable to transmit
input images, Ethernet, and serial control signal, and the projector can input such digital signal to the  terminal.
Blu-ray disc player HDMI cable
(commercially available)
Control computer*1...

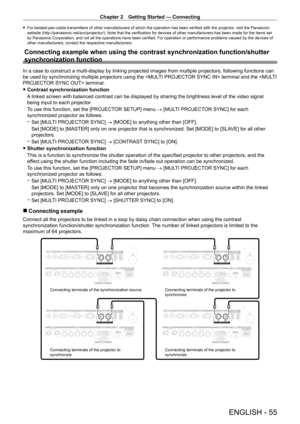

Chapter 2 Getting Started — Connecting
ENGLISH - 55
 fFor twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector , visit the Panasonic
website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set
by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of
other manufacturers, contact the...

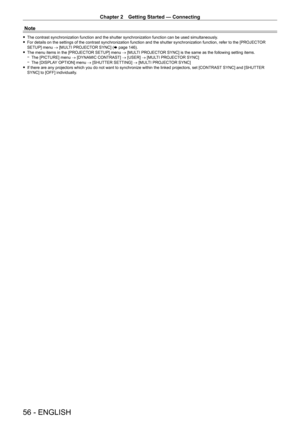

Chapter 2 Getting Started — Connecting
56 - ENGLISH
Note
 fThe contrast synchronization function and the shutter synchronization fu\
nction can be used simultaneously . fFor details on the settings of the contrast synchronization function and\
 the shutter synchronization function, refer to the [PROJECT OR
SETUP] menu
→ [MULTI PROJECTOR SYNC] (x   page   146).
 fThe menu items in the [PROJECT

OR SETUP] menu → [MULTI PROJECTOR SYNC] is the same as the following setting items.
 gThe [PICTURE] menu

→...

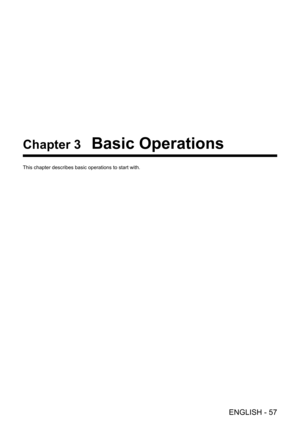

ENGLISH - 57
Chapter 3 Basic Operations
This chapter describes basic operations to start with.

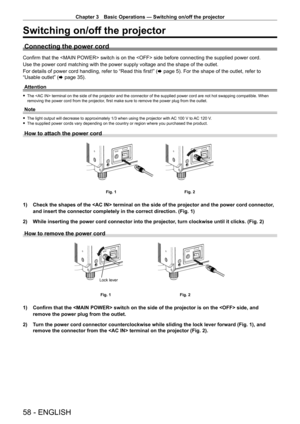

Chapter 3 Basic Operations — Switching on/off the projector
58 - ENGLISH
Switching on/off the projector
Connecting the power cord
Confirm that the  switch is on the  side before connecting the supplied power cord.
Use the power cord matching with the power supply voltage and the shape \
of the outlet.
For details of power cord handling, refer to “Read this first!” (x page 5). For the shape of the outlet, refer to
“Usable outlet” ( x
  page   35).
Attention
 f The  terminal on the side of the projector...

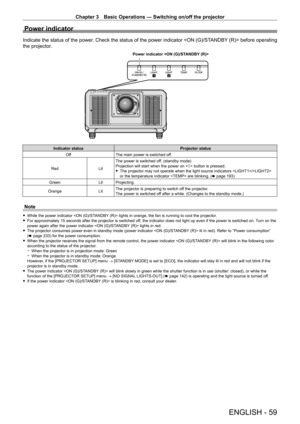

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 59
Power indicator
Indicate the status of the power. Check the status of the power indicator  before operating
the projector.
Power indicator
Indicator statusProjector status
Off The main power is switched off.
Red LitThe power is switched off. (standby mode)
Projection will start when the power on <
b> button is pressed.
 fThe projector may not operate when the light source indicators /
or the temperature indicator  are blinking. (...

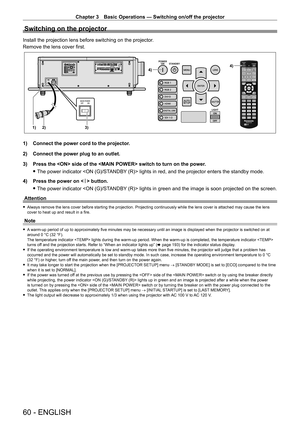

Chapter 3 Basic Operations — Switching on/off the projector
60 - ENGLISH
Switching on the projector
Install the projection lens before switching on the projector.
Remove the lens cover first.
2)4)
4)
3)
1)
1) Connect the power cord to the projector .
2)
Connect the power plug to an outlet.
3)


Press the  side of the  switch to turn on the power
 .
 fThe power indicator  lights in red, and the projector enters the standby mode.
4)

Press the power on < b

> button.
 fThe power indicator  lights in...
