Panasonic Projector PT-RW620 User Manual

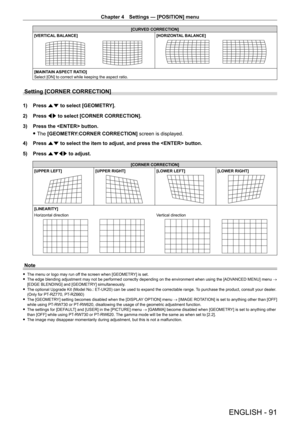

Chapter 4 Settings — [POSITION] menu
ENGLISH - 91
[CURVED CORRECTION]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press  as to select [GEOMETRY].
2)
Press
 qw to select [CORNER CORRECTION].
3)

Press the  button.
 fThe

[GEOMETRY:CORNER CORRECTION] screen is displayed.
4)

Press
 as to select the item to adjust, and press the  button.
5)

Press
 asqw to adjust.
[CORNER CORRECTION]
[UPPER...

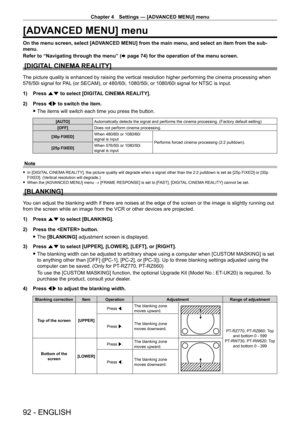

Chapter 4 Settings — [ADVANCED MENU] menu
92 - ENGLISH
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub‑
menu.
Refer to “Navigating through the menu” (x

  page   74) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when
576/50i signal for PAL (or SECAM), or 480/60i, 1080/50i, or 1080/60i signal for NTSC is input.
1)...

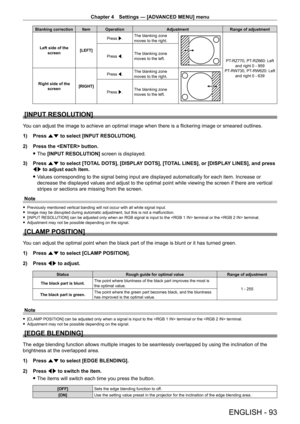

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 93
Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the  screen [LEFT]Press w.
The blanking zone
moves to the right.
PT-
RZ770, PT- RZ660: Left
and right 0 - 959
PT
-

RW730, PT
-
 RW620: Left
and right 0 - 639
Press q.
The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press q.
The blanking zone
moves to the right.
Press w.The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust the...

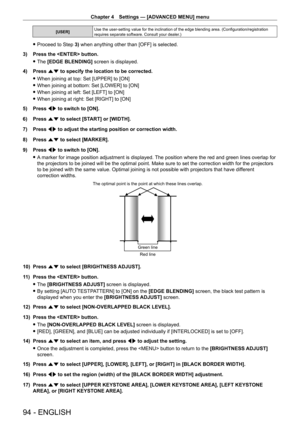

Chapter 4 Settings — [ADVANCED MENU] menu
94 - ENGLISH
[USER]Use the user-setting value for the inclination of the edge blending area. (Configuration/registration
requires separate software. Consult your dealer.)
 f
Proceed to Step  3) when anything other than [OFF] is selected.
3)

Press the  button.
 f The

[EDGE BLENDING] screen is displayed.
4)

Press
 as to specify the location to be corrected.
 fWhen joining at top: Set [UPPER] to [ON]
 fWhen joining at bottom: Set [LOWER] to [ON]
 fWhen...

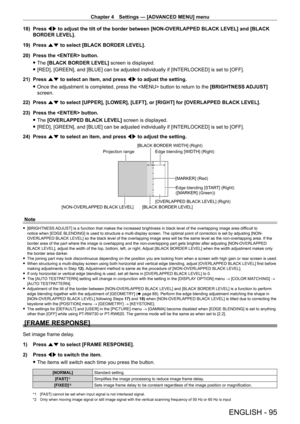

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 95
18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] a\
nd [BLACK
BORDER LEVEL].
19)

Press
 as to select [BLACK BORDER LEVEL].
20)

Press the  button.
 fThe

[BLACK BORDER LEVEL] screen is displayed.
 f[RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
21)


Press
 as to select an item, and press qw to adjust the setting.
 fOnce the adjustment is completed, press the  button...

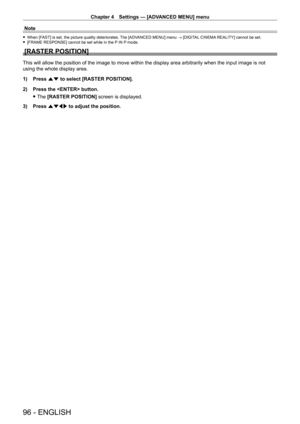

Chapter 4 Settings — [ADVANCED MENU] menu
96 - ENGLISH
Note
 fWhen [FAST] is set, the picture quality deteriorates. The [ADVANCED MENU] menu → [DIGITAL CINEMA REALITY] cannot be set. f[FRAME RESPONSE] cannot be set while in the P
 IN P mode.
[RASTER POSITION]
This will allow the position of the image to move within the display are\
a arbitrarily when the input image is not
using the whole display area.
1)

Press
 as to select [RASTER POSITION].
2)

Press the  button.
 fThe

[RASTER POSITION]  screen...

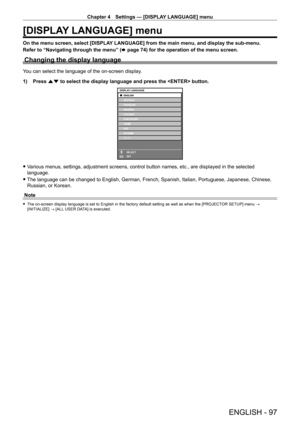

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
ENGLISH - 97
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   74) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)

Press
 as to select the display language and press the  button.
ENTER
DISPLAY LANGUAGE
SELECT
SET
 fVarious menus, settings, adjustment screens,...

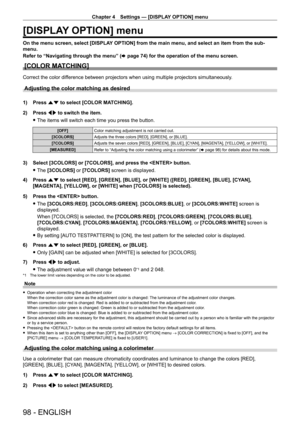

Chapter 4 Settings — [DISPLAY OPTION] menu
98 - ENGLISH
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub‑
menu.
Refer to “Navigating through the menu” (x

  page   74) for the operation of the menu screen.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously\
.
Adjusting the color matching as desired
1) Press as to select [COLOR MATCHING].
2)
Press
 qw to switch the item....

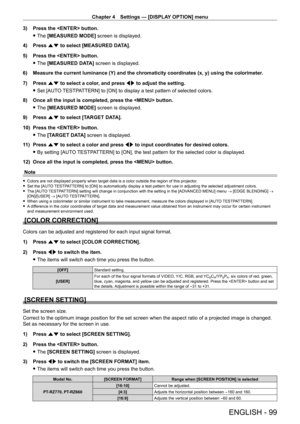

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 99
3) Press the  button.
 fThe

[MEASURED MODE] screen is displayed.
4)

Press
 as to select [MEASURED DATA].
5)

Press the  button.
 fThe

[MEASURED DATA] screen is displayed.
6)

Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter .
7)


Press
 as to select a color, and press qw to adjust the setting.
 fSet [AUT

O TESTPATTERN] to [ON] to display a test pattern of selected colors.
8)

Once all the...

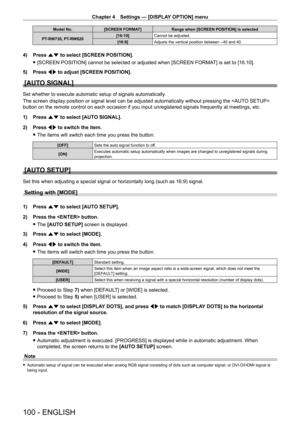

Chapter 4 Settings — [DISPLAY OPTION] menu
100 - ENGLISH
Model No.[SCREEN FORMAT] Range when [SCREEN POSITION] is selected
PT‑RW730, PT‑RW620 [16:10]
Cannot be adjusted.
[16:9] Adjusts the vertical position between
-40 and 40.
4) Press as to select [SCREEN POSITION].
 f[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMA T] is set to [16:10].
5)


Press
 qw to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display...
