Panasonic Projector PT-RW620 User Manual

Chapter 2 Getting Started — Connecting
ENGLISH - 51

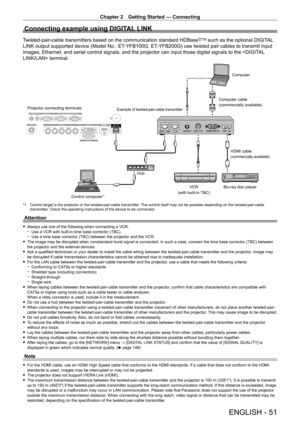

Connecting example using DIGITAL LINK
Twisted-pair-cable transmitters based on the communication standard HDBaseTTM such as the optional DIGITAL
LINK output supported device (Model No.: ET
-

YFB100G, ET
-

YFB200G) use twisted pair cables to transmit input
images, Ethernet, and serial control signals, and the projector can input those digital signals to the  terminal.
Blu-ray disc player HDMI cable
(commercially available)
Control computer*1...

Chapter 2 Getting Started — Connecting
52 - ENGLISH

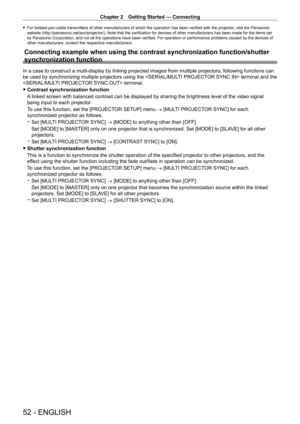

 fFor twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector , visit the Panasonic
website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set
by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of
other manufacturers, contact the...

Chapter 2 Getting Started — Connecting
ENGLISH - 53

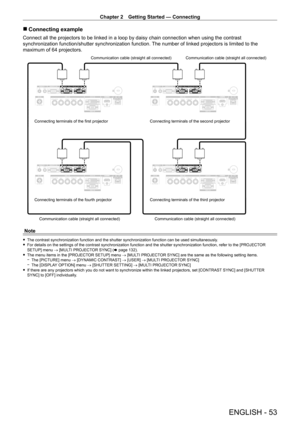

 rConnecting example
Connect all the projectors to be linked in a loop by daisy chain connect\
ion when using the contrast
synchronization function/shutter synchronization function. The number of linked projectors is limited to the
maximum of 64 projectors.
Connecting terminals of the first projector
Connecting terminals of the fourth projector Connecting terminals of the second projector
Connecting terminals of the third projector
Communication cable...

54 - ENGLISH

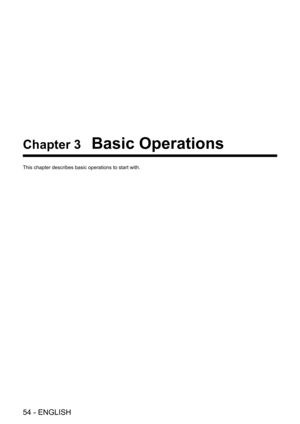

Chapter 3 Basic Operations
This chapter describes basic operations to start with.

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 55

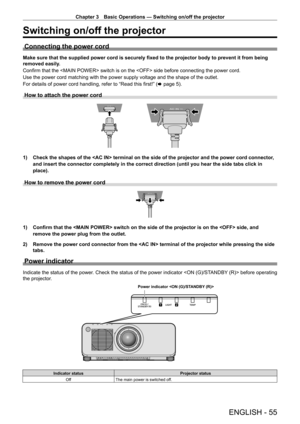

Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being
removed easily.
Confirm that the  switch is on the  side before connecting the power cord.
Use the power cord matching with the power supply voltage and the shape \
of the outlet.
For details of power cord handling, refer to “Read this first!” (x page 5).
How to attach the...

Chapter 3 Basic Operations — Switching on/off the projector
56 - ENGLISH

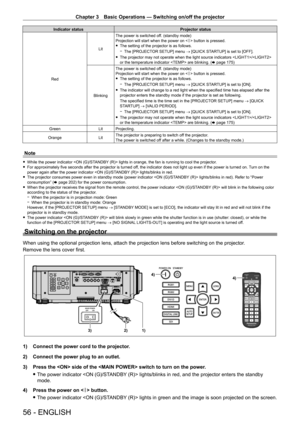

Indicator statusProjector status
Red Lit
The power is switched off. (standby mode)
Projection will start when the power on <
b> button is pressed.
 fThe setting of the projector is as follows.
 gThe [PROJECT

OR SETUP] menu → [QUICK STARTUP] is set to [OFF].
 fThe projector may not operate when the light source indicators /
or the temperature indicator  are blinking. ( x

  page   175)
Blinking The power is switched off. (standby...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 57

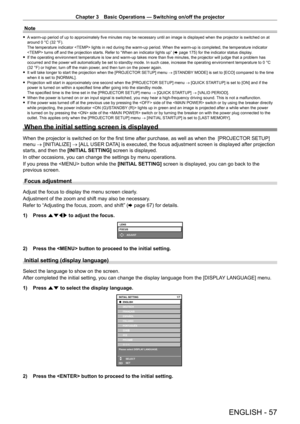

Note
 fA warm-up period of up to approximately five minutes may be necessary until an image is displayed when the projector is switched on at
around 0   °C (32   °F).
The temperature indicator  lights in red during the warm-up period. When the warm-up is completed, the temperature indicator
 turns off and the projection starts. Refer to “When an indicator lights up” ( x
  page   175) for the indicator status display.
 fIf the...

Chapter 3 Basic Operations — Switching on/off the projector
58 - ENGLISH

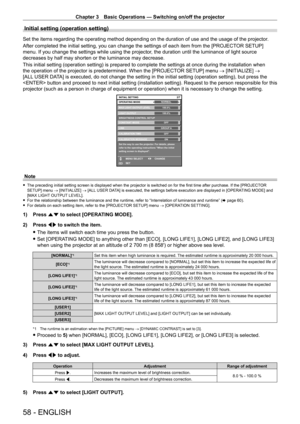

Initial setting (operation setting)
Set the items regarding the operating method depending on the duration of use and the usage of the projector.
After completed the initial setting, you can change the settings of each item from the [PROJECT OR SETUP]
menu. If you change the settings while using the projector, the duration until the luminance of light source
decreases by half may shorten or the luminance may decrease.
This initial...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 59

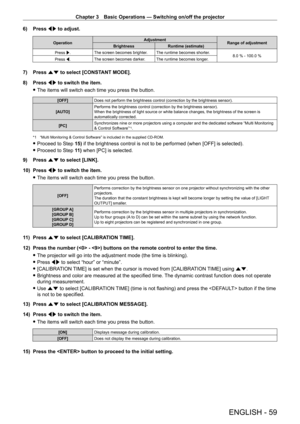

6) Press qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
  % - 100.0   %
Press q. The screen becomes darker. The runtime becomes longer.
7) Press
as to select [CONSTANT MODE].
8)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not perform the brightness control (correction...

Chapter 3 Basic Operations — Switching on/off the projector
60 - ENGLISH

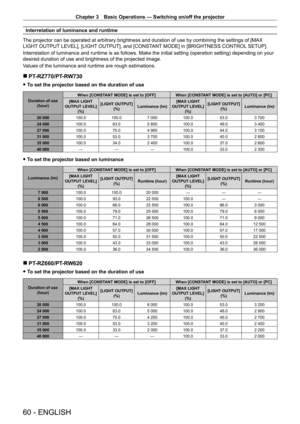

Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX
LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your
desired duration of use and brightness of the projected image.
Values of the...
