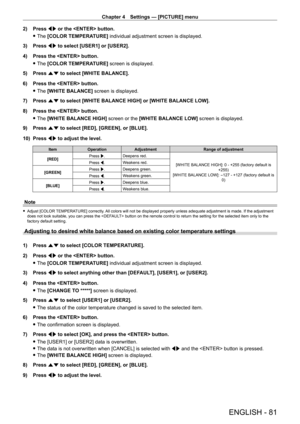

Page 81
![Page 81
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 81
2) Press qw or the button.
fThe
[COLOR TEMPERATURE] individual adjustment screen is displayed.
3)
Press
qw to select [USER1] or [USER2].
4)
Press the button.
fThe
[COLOR TEMPERATURE] screen is displayed.
5)
Press
as to select [WHITE BALANCE].
6)
Press the button.
fThe
[WHITE BALANCE] screen is displayed.
7)
Press
as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8)
Press the button.
fThe
[WHITE BALANCE HIGH] screen...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-80.png "Page 81
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 81
2) Press qw or the button.
fThe
[COLOR TEMPERATURE] individual adjustment screen is displayed.
3)
Press
qw to select [USER1] or [USER2].
4)
Press the button.
fThe
[COLOR TEMPERATURE] screen is displayed.
5)
Press
as to select [WHITE BALANCE].
6)
Press the button.
fThe
[WHITE BALANCE] screen is displayed.
7)
Press
as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8)
Press the button.
fThe
[WHITE BALANCE HIGH] screen...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 81 2) Press qw or the button. fThe [COLOR TEMPERATURE] individual adjustment screen is displayed. 3) Press qw to select [USER1] or [USER2]. 4) Press the button. fThe [COLOR TEMPERATURE] screen is displayed. 5) Press as to select [WHITE BALANCE]. 6) Press the button. fThe [WHITE BALANCE] screen is displayed. 7) Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW]. 8) Press the button. fThe [WHITE BALANCE HIGH] screen...
Page 82

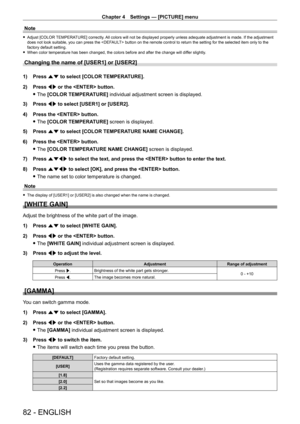

![Page 82
Chapter 4 Settings — [PICTURE] menu
82 - ENGLISH
Note
fAdjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment
does not look suitable, you can press the button on the remote control to return the setting for the selected item only to the
factory default setting.
f When color temperature has been changed, the colors before and after the\
change will dif
fer slightly.
Changing the name of [USER1] or [USER2]
1) Press as to...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-81.png "Page 82
Chapter 4 Settings — [PICTURE] menu
82 - ENGLISH
Note
fAdjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment
does not look suitable, you can press the button on the remote control to return the setting for the selected item only to the
factory default setting.
f When color temperature has been changed, the colors before and after the\
change will dif
fer slightly.
Changing the name of [USER1] or [USER2]
1) Press as to...")
Chapter 4 Settings — [PICTURE] menu 82 - ENGLISH Note fAdjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the button on the remote control to return the setting for the selected item only to the factory default setting. f When color temperature has been changed, the colors before and after the\ change will dif fer slightly. Changing the name of [USER1] or [USER2] 1) Press as to...
Page 83

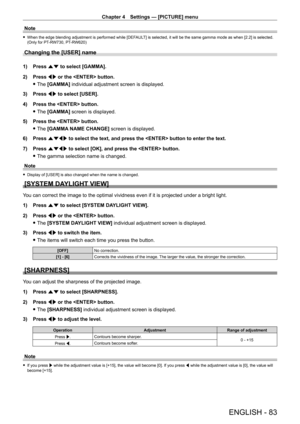

![Page 83
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 83
Note
fWhen the edge blending adjustment is performed while [DEF AULT] is selected, it will be the same gamma mode as when [2.2] is selected.
(Only for PT- RW730, PT- RW620)
Changing the [USER] name
1) Press as to select [GAMMA].
2)
Press
qw or the button.
fThe
[GAMMA] individual adjustment screen is displayed.
3)
Press
qw to select [USER].
4)
Press the button.
fThe
[GAMMA] screen is displayed.
5)
Press the button.
fThe
[GAMMA NAME...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-82.png "Page 83
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 83
Note
fWhen the edge blending adjustment is performed while [DEF AULT] is selected, it will be the same gamma mode as when [2.2] is selected.
(Only for PT- RW730, PT- RW620)
Changing the [USER] name
1) Press as to select [GAMMA].
2)
Press
qw or the button.
fThe
[GAMMA] individual adjustment screen is displayed.
3)
Press
qw to select [USER].
4)
Press the button.
fThe
[GAMMA] screen is displayed.
5)
Press the button.
fThe
[GAMMA NAME...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 83 Note fWhen the edge blending adjustment is performed while [DEF AULT] is selected, it will be the same gamma mode as when [2.2] is selected. (Only for PT- RW730, PT- RW620) Changing the [USER] name 1) Press as to select [GAMMA]. 2) Press qw or the button. fThe [GAMMA] individual adjustment screen is displayed. 3) Press qw to select [USER]. 4) Press the button. fThe [GAMMA] screen is displayed. 5) Press the button. fThe [GAMMA NAME...
Page 84

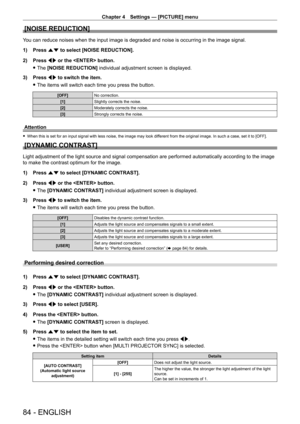

![Page 84
Chapter 4 Settings — [PICTURE] menu
84 - ENGLISH
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1)
Press
as to select [NOISE REDUCTION].
2)
Press
qw or the button.
fThe
[NOISE REDUCTION] individual adjustment screen is displayed.
3)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] No correction.
[1] Slightly corrects the noise.
[2] Moderately corrects the noise.
[3] Strongly...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-83.png "Page 84
Chapter 4 Settings — [PICTURE] menu
84 - ENGLISH
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1)
Press
as to select [NOISE REDUCTION].
2)
Press
qw or the button.
fThe
[NOISE REDUCTION] individual adjustment screen is displayed.
3)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] No correction.
[1] Slightly corrects the noise.
[2] Moderately corrects the noise.
[3] Strongly...")
Chapter 4 Settings — [PICTURE] menu 84 - ENGLISH [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. 1) Press as to select [NOISE REDUCTION]. 2) Press qw or the button. fThe [NOISE REDUCTION] individual adjustment screen is displayed. 3) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] No correction. [1] Slightly corrects the noise. [2] Moderately corrects the noise. [3] Strongly...
Page 85

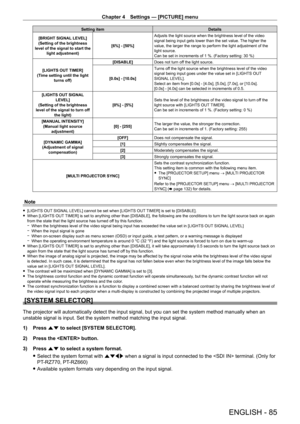

![Page 85
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 85
Setting itemDetails
[BRIGHT SIGNAL LEVEL]
(Setting of the brightness
level of the signal to start the light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video
signal being input gets lower than the set value. The higher the
value, the larger the range to perform the light adjustment of the
light source.
Can be set in increments of 1
%. (Factory setting: 30 %)
[LIGHTS OUT TIMER]
(Time setting until the light...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-84.png "Page 85
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 85
Setting itemDetails
[BRIGHT SIGNAL LEVEL]
(Setting of the brightness
level of the signal to start the light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video
signal being input gets lower than the set value. The higher the
value, the larger the range to perform the light adjustment of the
light source.
Can be set in increments of 1
%. (Factory setting: 30 %)
[LIGHTS OUT TIMER]
(Time setting until the light...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 85 Setting itemDetails [BRIGHT SIGNAL LEVEL] (Setting of the brightness level of the signal to start the light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video signal being input gets lower than the set value. The higher the value, the larger the range to perform the light adjustment of the light source. Can be set in increments of 1 %. (Factory setting: 30 %) [LIGHTS OUT TIMER] (Time setting until the light...
Page 86

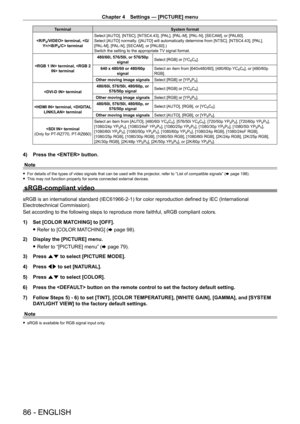

![Page 86
Chapter 4 Settings — [PICTURE] menu
86 - ENGLISH
TerminalSystem format
terminal, / terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL - M], [PAL - N], [SECAM], or [PAL60].
Select [AUTO] normally. ([AUTO] will automatically determine from [NTSC], [NTSC4.43], [PAL],
[PAL - M], [PAL - N], [SECAM], or [PAL60].)
Switch the setting to the appropriate TV signal format.
terminal, terminal 480/60i, 576/50i, or 576/50p
signal Select [RGB] or [YC
BCR].
640
x
480/60 or 480/60p signal Select an item...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-85.png "Page 86
Chapter 4 Settings — [PICTURE] menu
86 - ENGLISH
TerminalSystem format
terminal, / terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL - M], [PAL - N], [SECAM], or [PAL60].
Select [AUTO] normally. ([AUTO] will automatically determine from [NTSC], [NTSC4.43], [PAL],
[PAL - M], [PAL - N], [SECAM], or [PAL60].)
Switch the setting to the appropriate TV signal format.
terminal, terminal 480/60i, 576/50i, or 576/50p
signal Select [RGB] or [YC
BCR].
640
x
480/60 or 480/60p signal Select an item...")
Chapter 4 Settings — [PICTURE] menu 86 - ENGLISH TerminalSystem format terminal, / terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL - M], [PAL - N], [SECAM], or [PAL60]. Select [AUTO] normally. ([AUTO] will automatically determine from [NTSC], [NTSC4.43], [PAL], [PAL - M], [PAL - N], [SECAM], or [PAL60].) Switch the setting to the appropriate TV signal format. terminal, terminal 480/60i, 576/50i, or 576/50p signal Select [RGB] or [YC BCR]. 640 x 480/60 or 480/60p signal Select an item...
Page 87

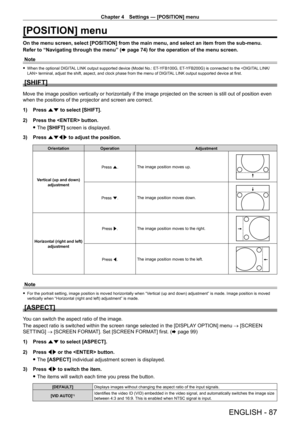

![Page 87
Chapter 4 Settings — [POSITION] menu
ENGLISH - 87
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
page 74) for the operation of the menu screen.
Note
f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-86.png "Page 87
Chapter 4 Settings — [POSITION] menu
ENGLISH - 87
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
page 74) for the operation of the menu screen.
Note
f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 87 [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” ( x page 74) for the operation of the menu screen. Note f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first. [SHIFT] Move...
Page 88

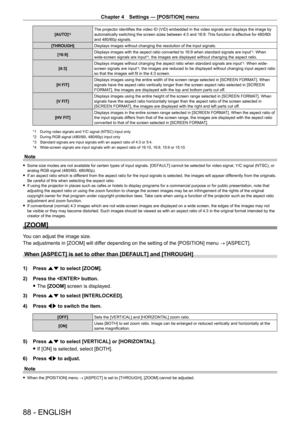

![Page 88
Chapter 4 Settings — [POSITION] menu
88 - ENGLISH
[AUTO]*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i
and 480/60p signals.
[THROUGH] Displays images without changing the resolution of the input signals.
[16:9] Displays images with the aspect ratio converted to 16:9 when standard si\
gnals are input
*3. When
wide-screen signals are input*4, the...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-87.png "Page 88
Chapter 4 Settings — [POSITION] menu
88 - ENGLISH
[AUTO]*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i
and 480/60p signals.
[THROUGH] Displays images without changing the resolution of the input signals.
[16:9] Displays images with the aspect ratio converted to 16:9 when standard si\
gnals are input
*3. When
wide-screen signals are input*4, the...")
Chapter 4 Settings — [POSITION] menu 88 - ENGLISH [AUTO]*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i and 480/60p signals. [THROUGH] Displays images without changing the resolution of the input signals. [16:9] Displays images with the aspect ratio converted to 16:9 when standard si\ gnals are input *3. When wide-screen signals are input*4, the...
Page 89

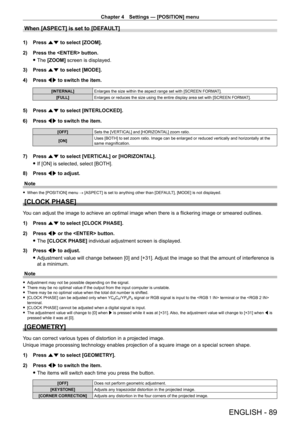

![Page 89
Chapter 4 Settings — [POSITION] menu
ENGLISH - 89
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the button.
fThe
[ZOOM] screen is displayed.
3)
Press
as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
qw to switch the item.
[OFF] Sets the...](http://img.usermanuals.tech/thumb/58/100238/w300_projector_manual_9485_d-88.png "Page 89
Chapter 4 Settings — [POSITION] menu
ENGLISH - 89
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the button.
fThe
[ZOOM] screen is displayed.
3)
Press
as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
qw to switch the item.
[OFF] Sets the...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 89 When [ASPECT] is set to [DEFAULT] 1) Press as to select [ZOOM]. 2) Press the button. fThe [ZOOM] screen is displayed. 3) Press as to select [MODE]. 4) Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T]. 5) Press as to select [INTERLOCKED]. 6) Press qw to switch the item. [OFF] Sets the...
Page 90

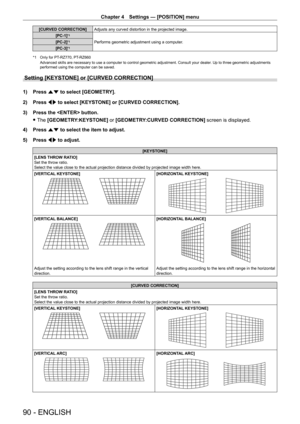

![Page 90
