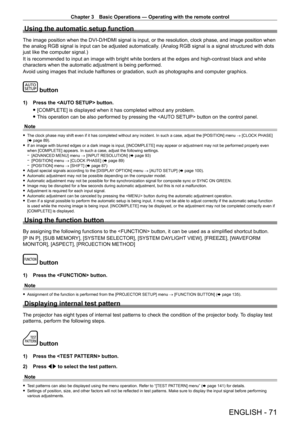

Using the automatic setup function
The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when
the analog RGB signal is input can be adjusted automatically . (Analog RGB signal is a signal structured with dots
just like the computer signal.)
It is recommended to input an image with bright white borders at the edg\
es and high-contrast black and white
characters when the...

Chapter 3 Basic Operations — Operating with the remote control
72 - ENGLISH

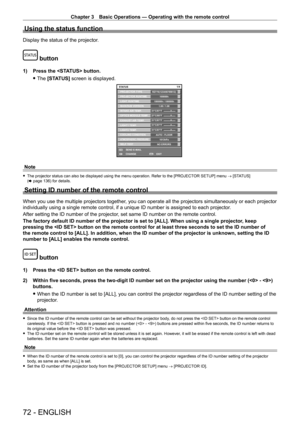

Using the status function
Display the status of the projector.
 button
1) Press the  button.
 fThe

[STATUS] screen is displayed.
100000h
100000h / 100000h
1.00 / 1.00
1/4
31°C/87°F27°C/80°F31°C/87°F31°C/87°F31°C/87°F
1013hPa
MENUEXIT
CHANGEENTERSEND E-MAIL
SELF TEST
ATMOSPHERIC PRESSUREAUTO - FLOOR
NO ERRORSCOOLING CONDITION LIGHT2 TEMP. LIGHT1 TEMP. EXHAUST AIR TEMP. OPTICS MODULE TEMP. INTAKE AIR TEMP. MAIN/SUB VERSION LIGHT...

ENGLISH - 73

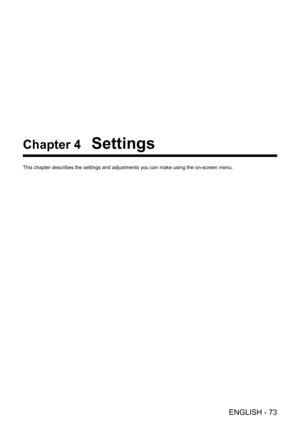

Chapter 4 Settings
This chapter describes the settings and adjustments you can make using t\
he on-screen menu.

Chapter 4 Settings — Menu navigation
74 - ENGLISH
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.

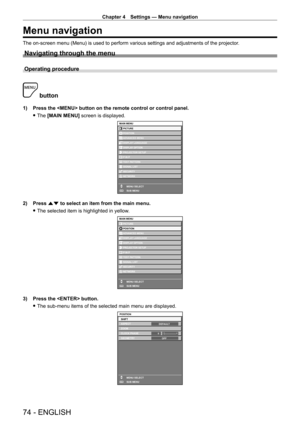

Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe

[MAIN MENU] screen is displayed.
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
P IN P
ENTER
2) Press  as to select an...

Chapter 4 Settings — Menu navigation
ENGLISH - 75

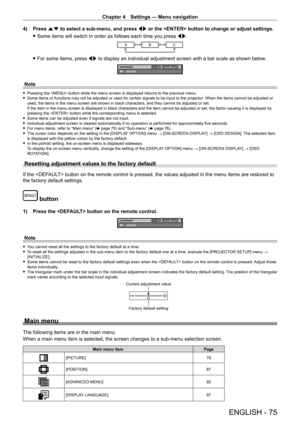

4) Press as to select a sub ‑ menu, and press qw or the  button to change or adjust settings.
 fSome items will switch in order as follows each time you press  qw

.
ABC
 fFor some items, press  qw to display an individual adjustment screen with a bar scale as shown be\
low.
0CONTRAST
ADJUST
Note
 fPressing the  button while the menu screen is displayed returns to the previous menu. fSome items or functions may not be adjusted or used for certain signals...

Chapter 4 Settings — Menu navigation
76 - ENGLISH

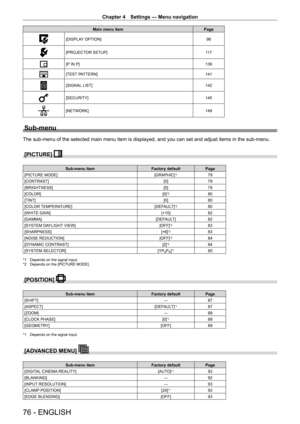

Main menu itemPage
[DISPLAY OPTION] 98
[PROJECTOR SETUP]11 7
[P IN P]139
[TEST PATTERN]141
[SIGNAL LIST]142
[SECURITY]145
[NETWORK]149
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*179
[CONTRAST] [0]79
[BRIGHTNESS] [0]79
[COLOR] [0]
*280
[TINT] [0]80
[COLOR TEMPERATURE] [DEFAULT]
*280
[WHITE GAIN] [+10]82
[GAMMA]...

Chapter 4 Settings — Menu navigation
ENGLISH - 77

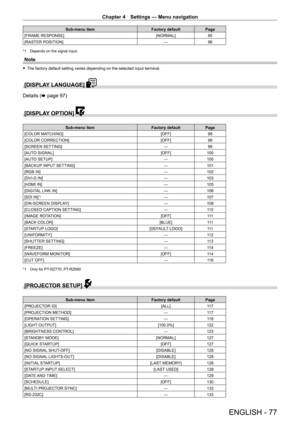

Sub-menu itemFactory defaultPage
[FRAME RESPONSE] [NORMAL]95
[RASTER POSITION] ―96
*1 Depends on the signal input.
Note
 fThe factory default setting varies depending on the selected input termi\
nal.
[DISPLAY LANGUAGE]
Details (x page 97)
[DISPLAY OPTION]
Sub-menu item Factory defaultPage
[COLOR MATCHING] [OFF]98
[COLOR CORRECTION] [OFF]99
[SCREEN SETTING] ―99
[AUTO SIGNAL] [OFF]100
[AUTO SETUP] ―100
[BACKUP INPUT SETTING] ―101
[RGB IN] ―102
[DVI-D IN]...

Chapter 4 Settings — Menu navigation
78 - ENGLISH
Sub-menu itemFactory defaultPage

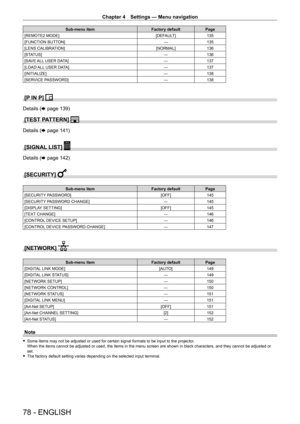

[REMOTE2 MODE] [DEFAULT]135
[FUNCTION BUTTON] ―135
[LENS CALIBRATION] [NORMAL]136
[STATUS] ―136
[SAVE ALL USER DATA] ―137
[LOAD ALL USER DATA] ―137
[INITIALIZE] ―138
[SERVICE PASSWORD] ―138
[P IN P]
Details (x page 139)
[TEST PATTERN]
Details (x page 141)
[SIGNAL LIST]
Details (x page 142)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]145
[SECURITY PASSWORD CHANGE] ―145
[DISPLAY SETTING]...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 79
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   74) for the operation of the menu screen.

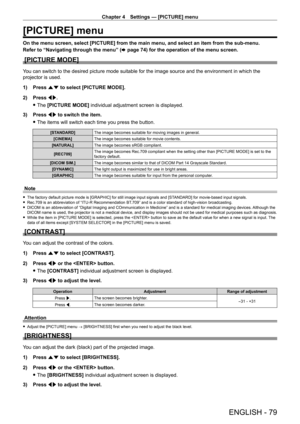

[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the
projector is used.
1)

Press
 as to select [PICTURE MODE].
2)

Press
 qw.
 fThe

[PICTURE MODE] individual adjustment screen is...

Chapter 4 Settings — [PICTURE] menu
80 - ENGLISH

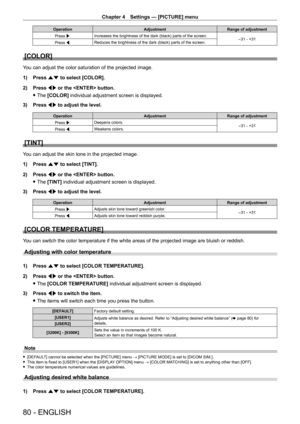

OperationAdjustmentRange of adjustment
Press w. Increases the brightness of the dark (black) parts of the screen.
-31 - +31
Press q. Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
You can adjust the color saturation of the projected image.
1)

Press
 as to select [COLOR].
2)

Press
 qw or the  button.
 fThe

[COLOR] individual adjustment screen is displayed.
3)

Press
 qw to adjust the level.
Operation AdjustmentRange of...
