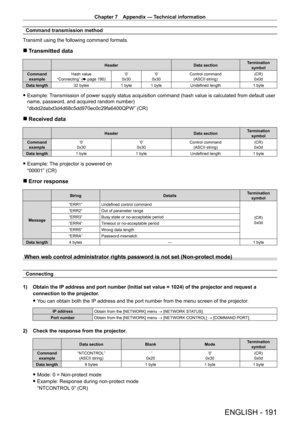

Panasonic Projector PT-RX110 User Manual

Chapter 7 Appendix — Technical information
ENGLISH - 191
Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example Hash value
“Connecting” ( x

page

190) ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 32

bytes 1
  byte 1   byteUndefined length 1
  byte
 fExample: Transmission of power supply status acquisition command (hash value is calculated from default user
name, password, and...

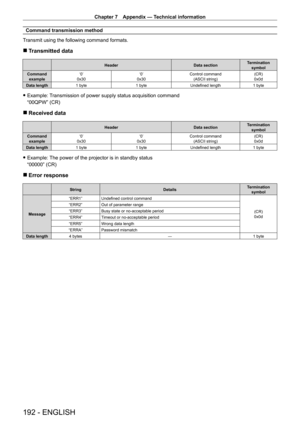

Chapter 7 Appendix — Technical information
192 - ENGLISH
Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 1

byte 1
  byte Undefined length 1
  byte
 fExample: Transmission of power supply status acquisition command
“00QPW” (CR)
 r Received data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command...

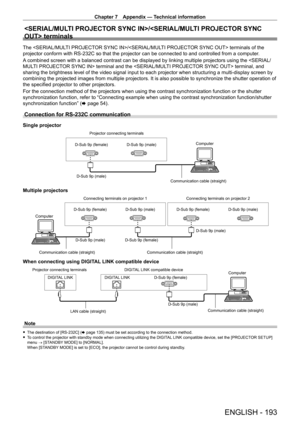

Chapter 7 Appendix — Technical information
ENGLISH - 193
/ terminals
The / terminals of the
projector conform with RS- 232C so that the projector can be connected to and controlled from a computer .
A combined screen with a balanced contrast can be displayed by linking multiple projectors using the  terminal and the  terminal, and
sharing the brightness level of the video signal input to each projector when structuring a multi-display screen by
combining the projected images from multiple projectors....

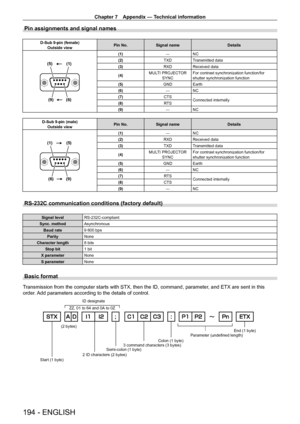

Chapter 7 Appendix — Technical information
194 - ENGLISH
Pin assignments and signal names
D-Sub 9-pin (female)Outside view Pin No.
Signal name Details
(9) (6)
(5) (1)
(1)
―NC
(2) TXDTransmitted data
(3) RXDReceived data
(4) MULTI PROJECTOR
SYNC For contrast synchronization function/for
shutter synchronization function
(5) GNDEarth
(6) ―NC
(7) CTS
Connected internally
(8) RTS
(9) ―NC
D-Sub 9-pin (male)
Outside view Pin No.
Signal name Details
(6) (9)
(1) (5)
(1)
―NC
(2) RXDReceived data
(3)...

Chapter 7 Appendix — Technical information
ENGLISH - 195

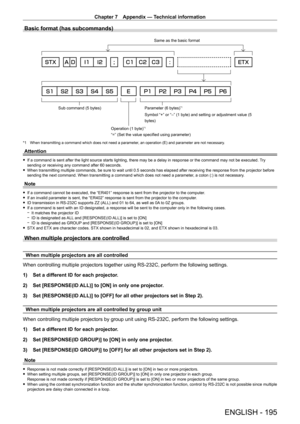

Basic format (has subcommands)
Parameter (6 bytes)*1
Symbol “+” or “–” (1 byte) and setting or adjustment va\
lue (5
bytes)
Operation (1 byte)
*1
“=” (Set the value specified using parameter)
Sub command (5 bytes) Same as the basic format
*1 When transmitting a command which does not need a parameter
, an operation (E) and parameter are not necessary.
Attention
 fIf a command is sent after the light source starts lighting, there may be a delay in...

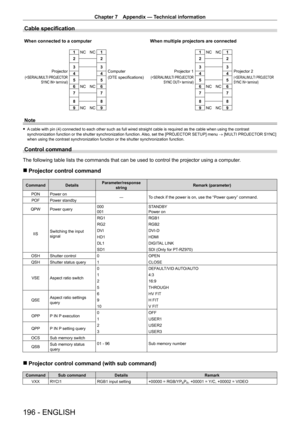

Chapter 7 Appendix — Technical information
196 - ENGLISH
Cable specification
1NC    NC 1
2 2
3 3
4    4
5 5
6 NC    NC 6
7 7
8 8
9 NC    NC 91NC    NC 1
2 2
3 3
4    4
5 5
6 NC    NC 6
7 7
8 8
9 NC    NC 9
When connected to a computer
Projector
( terminal)
Computer
(DTE specifications)
When multiple projectors are connected
Projector 1
( terminal)
Projector 2
( terminal)
Note
 fA cable with pin (4) connected to each other such as full wired straight cable is required as the cable when using the contrast...

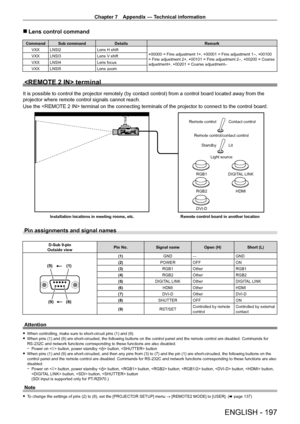

Chapter 7 Appendix — Technical information
ENGLISH - 197
 rLens control command
Command Sub command Details Remark
VXX LNSI2 Lens H shift
+00000 = Fine adjustment 1+, +00001 = Fine adjustment 1
-, +00100
= Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse
adjustment+, +00201 = Coarse adjustment-
VXX LNSI3 Lens V shift
VXX LNSI4 Lens focus
VXX LNSI5 Lens zoom
 terminal
It is possible to control the projector remotely (by contact control) from a control board located away from the...

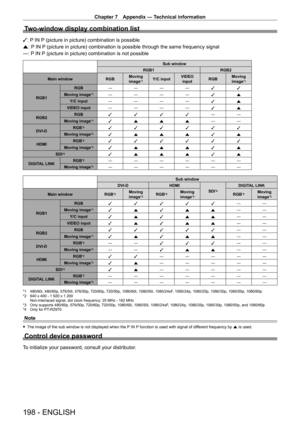

Chapter 7 Appendix — Technical information
198 - ENGLISH
Two-window display combination list
l: P IN P (picture in picture) combination is possible
a: P IN P (picture in picture) combination is possible through the same frequency signal
―: P IN P (picture in picture) combination is not possible
Sub window
RGB1 RGB2
Main window RGBMoving
*1Y/C input VIDEO
input RGBMoving
image*1
RGB1 RGB
――――
ll
Moving image*1― ―――
la
Y/C input ――――
la
VIDEO input ――――
la
RGB2 RGB
llll―
―
Moving image
*1l a aa ―...

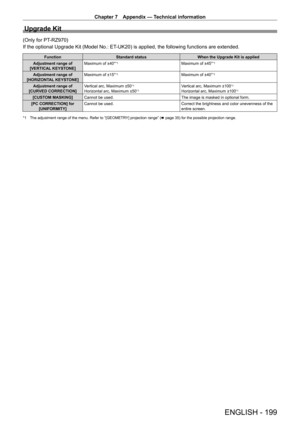

Chapter 7 Appendix — Technical information
ENGLISH - 199
Upgrade Kit
(Only for PT-RZ970)
If the optional Upgrade Kit (Model No.: ET
-
 UK20) is applied, the following functions are extended.
FunctionStandard status When the Upgrade Kit is applied
Adjustment range of
[VERTICAL KEYSTONE] Maximum of ±40°
*1Maximum of ±45°*1
Adjustment range of
[HORIZONTAL KEYSTONE] Maximum of ±15°*1Maximum of ±40°*1
Adjustment range of
[CURVED CORRECTION] Vertical arc, Maximum ±50*1
Horizontal arc, Maximum ±50*1Vertical...

Chapter 7 Appendix — Technical information
200 - ENGLISH

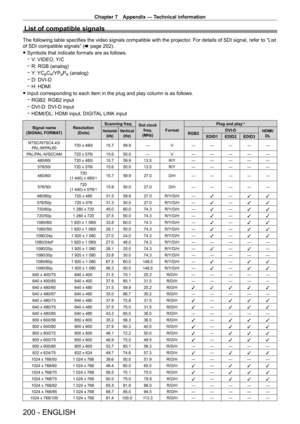

List of compatible signals
The following table specifies the video signals compatible with the projector. For details of SDI signal, refer to “List
of SDI compatible signals” ( x
  page   202).
 fSymbols that indicate formats are as follows.
 gV

: VIDEO, Y/C
 gR: RGB (analog)
 gY

: YC
BCR/YPBPR (analog)
 gD: DVI

-
D
 g H: HDMI
 fInput corresponding to each item in the plug and play column is as follows.
 gRGB2: RGB2 input
 gDVI

-
D: DVI
-
D...
