Panasonic Projector PT-RX110 User Manual

Chapter 5 Operations — Web control function
ENGLISH - 161

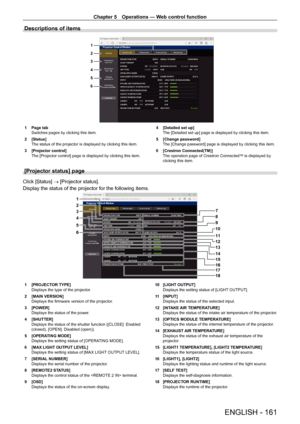

Descriptions of items
1
2
3
4
5
6
1 Page tab
Switches pages by clicking this item.
2

[Status]
The status of the projector is displayed by clicking this item.
3


[Projector control]
The [Projector control] page is displayed by clicking this item. 4

 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
5

[Change password]
The [Change password] page is displayed by clicking this item.
6


[Crestron Connected(TM)]...

Chapter 5 Operations — Web control function
162 - ENGLISH
Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status]
screen, click it to display the content of the error/warning.
 fThe projector may go into the standby status to protect the projector depending on the contents of the error .
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[F
AILED]:
Indicates that...

Chapter 5 Operations — Web control function
ENGLISH - 163

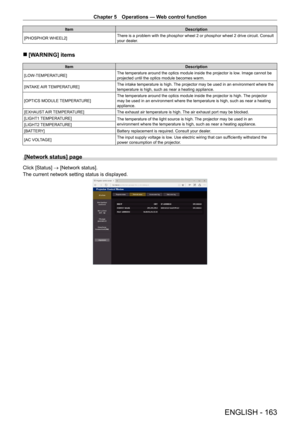

ItemDescription
[PHOSPHOR WHEEL2] There is a problem with the phosphor wheel 2 or phosphor wheel 2 drive circuit. Consult
your dealer.
 r
[WARNING] items
Item Description
[LOW-TEMPERATURE] The temperature around the optics module inside the projector is low
. Image cannot be
projected until the optics module becomes warm.
[INTAKE AIR TEMPERATURE] The intake temperature is high. The projector may be used in an environment where the
temperature...

Chapter 5 Operations — Web control function
164 - ENGLISH

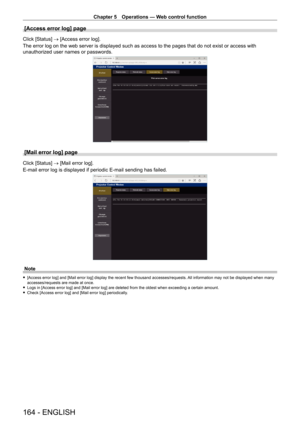

[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with
unauthorized user names or passwords.
[Mail error log] page
Click [Status] → [Mail error log].
E-mail error log is displayed if periodic E-mail sending has failed.
Note
 f[Access error log] and [Mail error log] display the recent few thousand accesses/requests.  All information may...

Chapter 5 Operations — Web control function
ENGLISH - 165

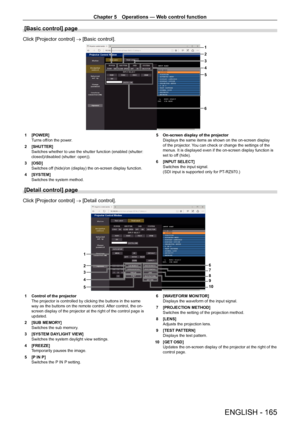

[Basic control] page
Click [Projector control] → [Basic control].
1
2
3
4
6
5
1 [POWER]
T
urns off/on the power.
2

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)).
3


[OSD]
Switches of

f (hide)/on (display) the on-screen display function.
4

[SYSTEM]
Switches the system method. 5

 On-screen display of the projector
Displays the same items as shown on the on-screen display
of the...

Chapter 5 Operations — Web control function
166 - ENGLISH

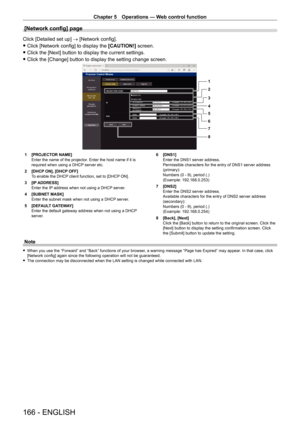

[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fClick the [Next] button to display the current settings.
 fClick the [Change] button to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECT OR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON], [DHCP OFF]
To enable the DHCP client...

Chapter 5 Operations — Web control function
ENGLISH - 167

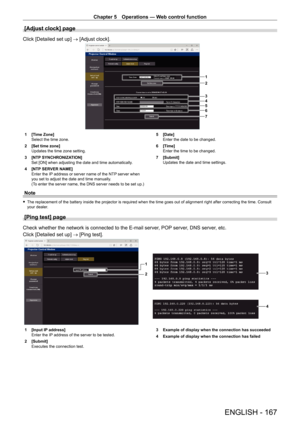

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
2

[Set time zone]
Updates the time zone setting.
3


[NTP
  SYNCHRONIZATION]
Set [ON] when adjusting the date and time automatically.
4

[NTP
  SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.) 5...

Chapter 5 Operations — Web control function
168 - ENGLISH

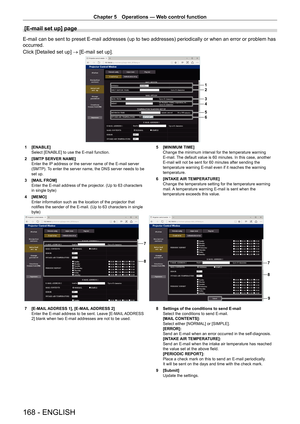

[E-mail set up] page
E-mail can be sent to preset E-mail addresses (up to two addresses) periodically or when an error or problem has
occurred.
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [ENABLE] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the E-mail...

Chapter 5 Operations — Web control function
ENGLISH - 169

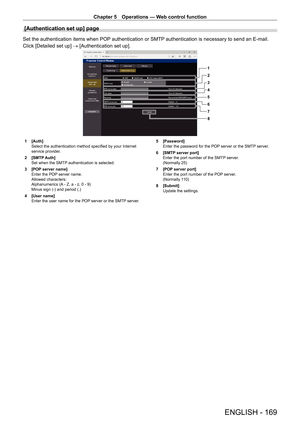

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider
.
2

[SMTP
  Auth]
Set when the SMTP authentication is selected.
3

[POP
  server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a...

Chapter 5 Operations — Web control function

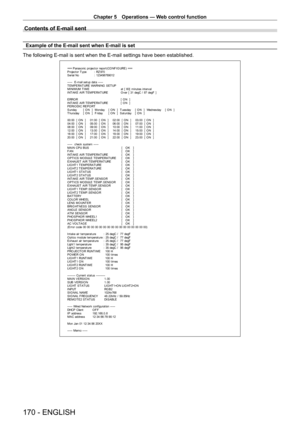

170 - ENGLISH
Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== P anas onic  pr ojec t or  r epor t ( CO NF I G URE )  ===
P r ojec t or  T y pe  :  RZ 970
S er ial No  :  123456789012
-----  E-mail set up dat a -----
T EMPERAT URE WARNING  SET UP
MINIMUM TIME  at  [  60]  m inut es  int er v al
I NT A K E  A I R T E M P E RA T URE   O v er  [  31 degC /  87...
