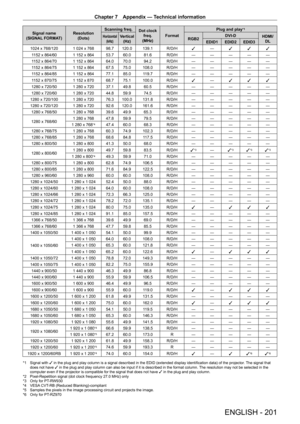

Panasonic Projector PT-RX110 User Manual

Chapter 7 Appendix — Technical information
ENGLISH - 201
Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and play*1
Horizontal
(kHz)Vertical(Hz)RGB2 DVI - D
HDMI/
DL
EDID1 EDID2 EDID3
1024

x

768/120 1

024

x

768 98.7 120.0 139.1 R/D/H l―
l l l
1152

x

864/60 1

152

x

864 53.760.0 81.6 R/D/H ― ― ― ― ―
1152

x

864/70 1

152

x

864 64.0 70.0 94.2 R/D/H ― ― ― ― ―
1152

x

864/75 1

152

x

864 67.5 75.0 108.0 R/D/H ― ― ― ― ―
1152...

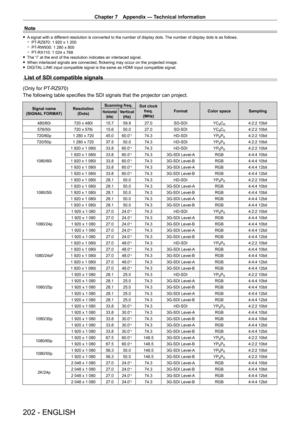

Chapter 7 Appendix — Technical information
202 - ENGLISH
Note
 fA signal with a different resolution is converted to the number of display dots. The number of display dots is as follows. gPT-
RZ970: 1   920   x   1   200
 gPT-

RW930: 1   280   x   800
 gPT-

RX110: 1   024   x   768
 fThe “i” at the end of the resolution indicates an interlaced signal. fWhen interlaced signals are connected, flickering may occur on the projected image. fDIGIT

AL LINK input compatible signal is the same as HDMI input...

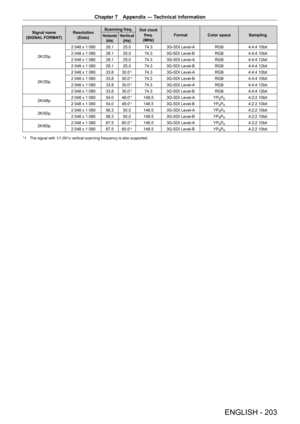

Chapter 7 Appendix — Technical information
ENGLISH - 203
Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format
Color space SamplingHorizontal
(kHz)Vertical(Hz)
2K/25p 2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-A RGB 4:4:4 10bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-B RGB 4:4:4 10bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-A RGB 4:4:4 12bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-B RGB 4:4:4 12bit
2K/30p 2

048

x

1

080 33.8...

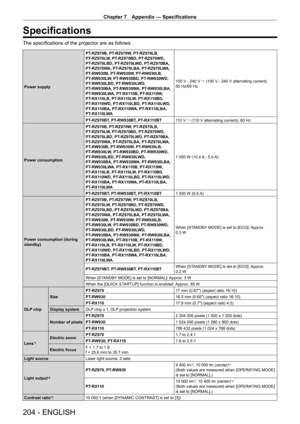

Chapter 7 Appendix — Specifications
204 - ENGLISH
Specifications
The specifications of the projector are as follows.
Power supplyPT‑RZ970B, PT‑RZ970W, PT‑RZ970LB,
PT‑RZ970LW, PT‑RZ970BD, PT‑RZ970WD,
PT‑RZ970LBD, PT‑RZ970LWD, PT‑RZ970BA,
PT‑RZ970WA, PT‑RZ970LBA, PT‑RZ970LWA,
PT‑RW930B, PT‑RW930W, PT‑RW930LB,
PT‑RW930LW, PT‑RW930BD, PT‑RW930WD,
PT‑RW930LBD, PT‑RW930LWD,
PT‑RW930BA, PT‑RW930WA, PT‑RW930LBA,
PT‑RW930LWA, PT‑RX110B, PT‑RX110W,
PT‑RX110LB, PT‑RX110LW, PT‑RX110BD,
PT‑RX110WD,...

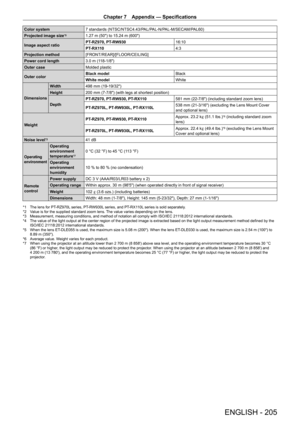

Chapter 7 Appendix — Specifications
ENGLISH - 205
Color system7 standards (NTSC/NTSC4.43/PAL/PAL - N/PAL - M/SECAM/PAL60)
Projected image size
*51.27 m (50") to 15.24 m (600")
Image aspect ratio PT
‑RZ970, PT‑RW930 16:10
PT
-

RX110 4:3
Projection method [FRONT/REAR]/[FLOOR/CEILING]
Power cord length 3.0
  m (118-1/8")
Outer case Molded plastic
Outer color Black model
Black
White model White
Dimensions Width
498
  mm (19-19/32")
Height 200
  mm (7-7/8") (with legs at shortest...

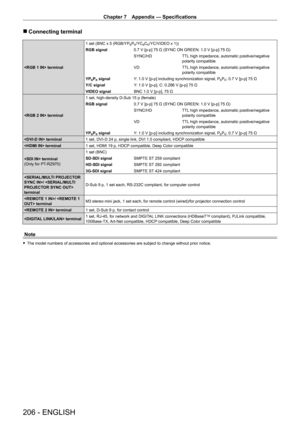

Chapter 7 Appendix — Specifications
206 - ENGLISH
 rConnecting terminal
 terminal 1 set (BNC x 5 (RGB/YP
BPR/YCBCR/YC/VIDEO x 1))
RGB signal 0.7

V [p-p] 75   Ω (SYNC ON GREEN: 1.0   V [p-p] 75   Ω)
SYNC/HD TTL high impedance, automatic positive/negative
polarity compatible
VD TTL high impedance, automatic positive/negative
polarity compatible
YP
BPR signal Y: 1.0   V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
Y/C signal Y
: 1.0

V [p-p], C: 0.286

V [p-p] 75

Ω
VIDEO signal BNC...

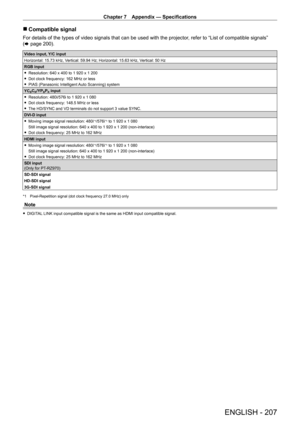

Chapter 7 Appendix — Specifications
ENGLISH - 207
 rCompatible signal
For details of the types of video signals that can be used with the projector , refer to “List of compatible signals”
(x   page   200).
Video input, Y/C input
Horizontal: 15.73
  kHz, Vertical: 59.94   Hz; Horizontal: 15.63   kHz, Vertical: 50   Hz
RGB input
 f Resolution: 640

  x   400 to 1   920   x   1   200
 fDot clock frequency: 162

  MHz or less
 fPIAS (Panasonic Intelligent

Auto Scanning) system
YC
BCR/YPBPR input
 f...

Chapter 7 Appendix — Dimensions
208 - ENGLISH
Dimensions
Unit: mm
221 (8-11/16)249 (9-13/16)
498 (19-19/32) 457 (18)
442 (17-13/32)
20.5 (13/16)
115.5 (4-9/16)
200 (7-7/8) 43 (1-11/16)
538 (21-3/16)
* The above dimensions are obtained when the standard zoom lens is attached.
*  Actual dimensions may dif fer depending on the product.

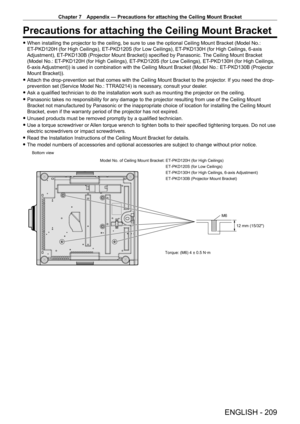

Chapter 7 Appendix — Precautions for attaching the Ceiling Mount Bracket
ENGLISH - 209
Precautions for attaching the Ceiling Mount Bracket
 fWhen installing the projector to the ceiling, be sure to use the optional Ceiling Mount Bracket (Model No.:
ET
-

PKD120H (for High Ceilings), ET
-
 PKD120S (for Low Ceilings), ET
-
 PKD130H (for High Ceilings, 6-axis
Adjustment), ET
-

PKD130B (Projector Mount Bracket)) specified by Panasonic. The Ceiling Mount Bracket
(Model No.: ET
-

PKD120H (for High...

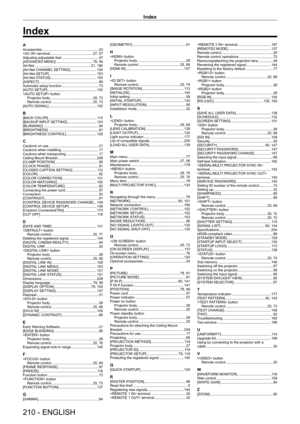

Index
210 - ENGLISH
AAccessories    2 3
 terminal
     27,   57
Adjusting adjustable feet
     4 7
[ADV
ANCED MENU]
     78,   94
Art-Net
     21,   186
[Art-Net CHANNEL SETTING]
     154
[Art-Net SETUP]
     153
[Art-Net ST
ATUS]
     154
[ASPECT]
     8 9
Automatic setup function
     73
[AUT
O SETUP]
     102
 button
Projector body

 28,   73
Remote control
     25,   73
[AUTO SIGNAL]
     102
B[BACK COLOR]    11 3
[BACKUP
 INPUT SETTING]
     103
[BLANKING]
     9 4
[BRIGHTNESS]
     8 1...
