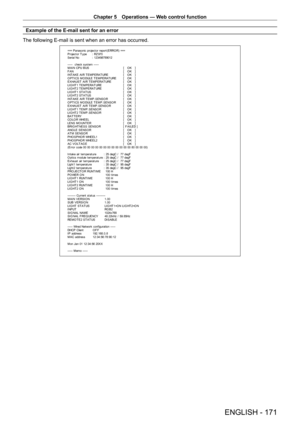

Panasonic Projector PT-RX110 User Manual

Chapter 5 Operations — Web control function
ENGLISH - 171
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic  pr ojec t or  r epor t (E RRO R) ===
P r ojec t or  T y pe  :  RZ 970
S er ial No  :  123456789012
-----  check syst em -----
M A I N CP U B US   [   O K   ]
F A N  [   O K   ]
INT AKE AIR T EMPERAT URE  [   O K   ]
O PT ICS MO DULE T EMPERAT URE  [   O K   ]
EXHAUST  AIR T EMPERAT URE  [   O K   ]
LIG HT 1 T EMPERAT URE  [   O K   ]...

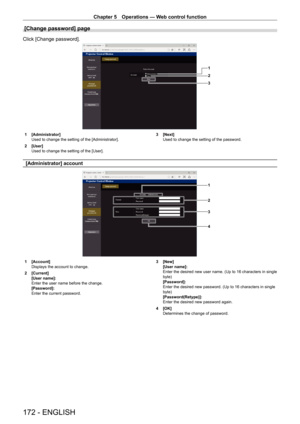

Chapter 5 Operations — Web control function
172 - ENGLISH
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2

[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3

 [New]
[User name]:
Enter the...

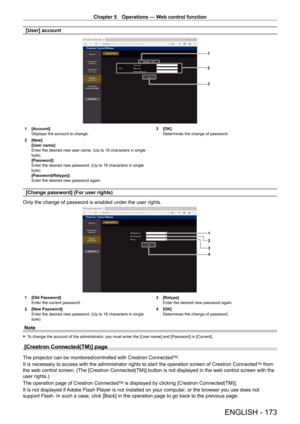

Chapter 5 Operations — Web control function
ENGLISH - 173
[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4...

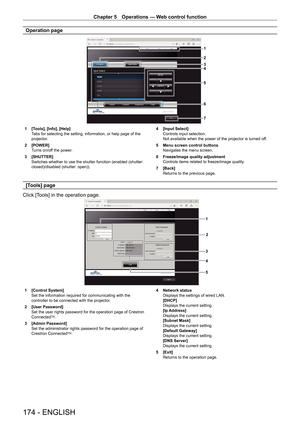

Chapter 5 Operations — Web control function
174 - ENGLISH
Operation page
1
2
34
5
6
7
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2

[POWER]
T

urns on/off the power.
3

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 4

 [Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
5

Menu screen control buttons
Navigates the menu screen.
6...

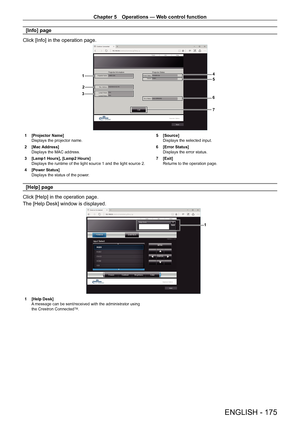

Chapter 5 Operations — Web control function
ENGLISH - 175
[Info] page
Click [Info] in the operation page.
4
5
6
7
1
2
3
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp1 Hours], [Lamp2 Hours]
Displays the runtime of the light source 1 and the light source 2.
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected input.
6

[Error Status]
Displays the error status.
7


[Exit]
Returns to the operation page.
[Help]...

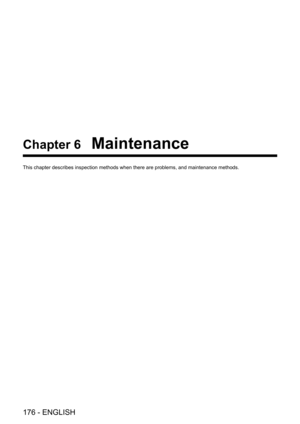

176 - ENGLISH
Chapter 6 Maintenance
This chapter describes inspection methods when there are problems, and maintenance methods.

Chapter 6 Maintenance — Light source/temperature indicators
ENGLISH - 177

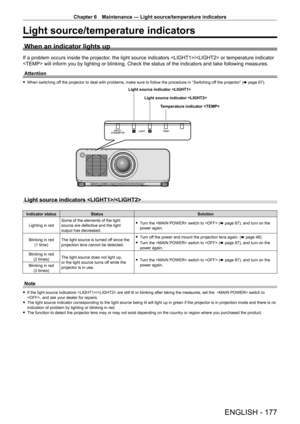

Light source/temperature indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicators / or temperature indicator
 will inform you by lighting or blinking. Check the status of the indicators and take following measures.Attention
 f When switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x   page   67).
Light source...

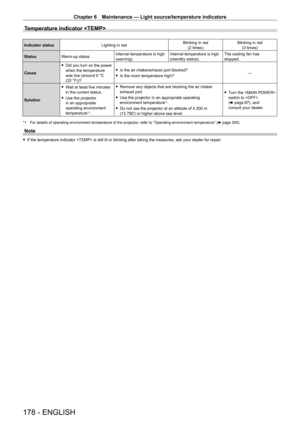

Chapter 6 Maintenance — Light source/temperature indicators
178 - ENGLISH
Temperature indicator
Indicator statusLighting in red Blinking in red
(2 times) Blinking in red
(3 times)
Status Warm-up status Internal temperature is high
(warning).Internal temperature is high
(standby status).The cooling fan has
stopped.
Cause
 f Did you turn on the power
when the temperature
was low (around 0

  °C
(32
  °F))?
 fIs the air intake/exhaust port blocked?
 fIs the room temperature high? ―
Solution
 f W

ait...

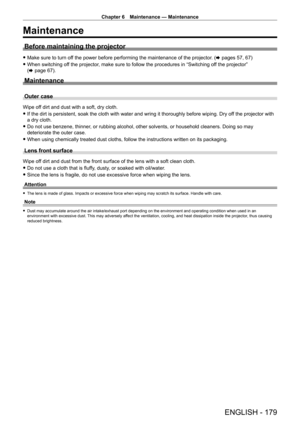

Chapter 6 Maintenance — Maintenance
ENGLISH - 179
Maintenance
Before maintaining the projector
 fMake sure to turn of f the power before performing the maintenance of the projector. (x pages 57, 67)
 fWhen switching of

f the projector, make sure to follow the procedures in “Switching off the projector”
(x
  page   67).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry of f the projector...

Chapter 6 Maintenance — Troubleshooting
180 - ENGLISH

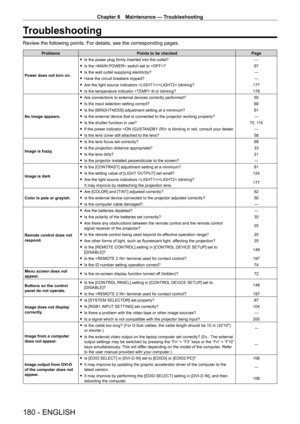

Troubleshooting
Review the following points. For details, see the corresponding pages.
ProblemsPoints to be checked Page
Power does not turn on.
 f Is the power plug firmly inserted into the outlet? ―
 fIs the  switch set to ? 67
 fIs the wall outlet supplying electricity? ―
 fHave the circuit breakers tripped? ―
 fAre the light source indicators / blinking? 177
 fIs the temperature indicator  lit or blinking? 178
No image appears.
 f Are connections...
