Panasonic Projector PT-RZ575 User Manual
Here you can view all the pages of manual Panasonic Projector PT-RZ575 User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 1
![Page 1
Thank you for purchasing this Panasonic product.
■This manual is common to all the models regardless of suffixes of the Model No.
zfor Taiwan
P T- R Z 575 T
z for other countries or regions
P
T- R Z 575
■ Before operating this product, please read the instructions carefully an\
d save this manual
for future use.
■Before using this product, be sure to read “Read this first!” (
x
pages 5 to 13).
DPQP1055ZA
DLP™ Projector Commercial Use
Operating Instructions
Functional Manual
ENGLISH
Model...](http://img.usermanuals.tech/thumb/58/100230/w300_projector_manual_9477_d-0.png "Page 1
Thank you for purchasing this Panasonic product.
■This manual is common to all the models regardless of suffixes of the Model No.
zfor Taiwan
P T- R Z 575 T
z for other countries or regions
P
T- R Z 575
■ Before operating this product, please read the instructions carefully an\
d save this manual
for future use.
■Before using this product, be sure to read “Read this first!” (
x
pages 5 to 13).
DPQP1055ZA
DLP™ Projector Commercial Use
Operating Instructions
Functional Manual
ENGLISH
Model...")
Thank you for purchasing this Panasonic product. ■This manual is common to all the models regardless of suffixes of the Model No. zfor Taiwan P T- R Z 575 T z for other countries or regions P T- R Z 575 ■ Before operating this product, please read the instructions carefully an\ d save this manual for future use. ■Before using this product, be sure to read “Read this first!” ( x pages 5 to 13). DPQP1055ZA DLP™ Projector Commercial Use Operating Instructions Functional Manual ENGLISH Model...
Page 2
2 - ENGLISH
Contents
Contents
Read this first! 5
Chapter 1
Preparation
Precautions for use 17
Lens protection material
17
Cautions when transporting
17
Cautions when installing
17
Security
19
DIGIT
AL LINK
20
Art-Net
20
Early W
arning Software
20
Disposal
20
Cautions on use
20
Accessories
22
Optional accessories
23
About your projector
24
Remote control
24
Projector body
26
Preparing the remote control
28...
Page 3
![Page 3
ENGLISH - 3
Contents
[ADVANCED MENU] menu
77
[DIGIT
AL CINEMA REALITY]
77
[BLANKING]
77
[INPUT
RESOLUTION]
78
[CLAMP
POSITION]
78
[EDGE BLENDING]
78
[FRAME RESPONSE]
80
[RASTER POSITION]
81
[DISPLA
Y LANGUAGE] menu
82
Changing the display language
82
[DISPLA
Y OPTION] menu
83
[COLOR MA
TCHING]
83
[COLOR CORRECTION]
84
[SCREEN SETTING]
84
[AUT
O SIGNAL]
85
[AUT
O SETUP]
85
[BACKUP
INPUT SETTING]
86...](http://img.usermanuals.tech/thumb/58/100230/w300_projector_manual_9477_d-2.png "Page 3
ENGLISH - 3
Contents
[ADVANCED MENU] menu
77
[DIGIT
AL CINEMA REALITY]
77
[BLANKING]
77
[INPUT
RESOLUTION]
78
[CLAMP
POSITION]
78
[EDGE BLENDING]
78
[FRAME RESPONSE]
80
[RASTER POSITION]
81
[DISPLA
Y LANGUAGE] menu
82
Changing the display language
82
[DISPLA
Y OPTION] menu
83
[COLOR MA
TCHING]
83
[COLOR CORRECTION]
84
[SCREEN SETTING]
84
[AUT
O SIGNAL]
85
[AUT
O SETUP]
85
[BACKUP
INPUT SETTING]
86...")
ENGLISH - 3
Contents
[ADVANCED MENU] menu
77
[DIGIT
AL CINEMA REALITY]
77
[BLANKING]
77
[INPUT
RESOLUTION]
78
[CLAMP
POSITION]
78
[EDGE BLENDING]
78
[FRAME RESPONSE]
80
[RASTER POSITION]
81
[DISPLA
Y LANGUAGE] menu
82
Changing the display language
82
[DISPLA
Y OPTION] menu
83
[COLOR MA
TCHING]
83
[COLOR CORRECTION]
84
[SCREEN SETTING]
84
[AUT
O SIGNAL]
85
[AUT
O SETUP]
85
[BACKUP
INPUT SETTING]
86...
Page 4
4 - ENGLISH
Contents
Chapter 7 Appendix
Technical information 164
PJLink protocol
164
Using
Art-Net function
165
Control commands via LAN
169
terminal
171
T
wo-window display combination list
174
Control device password
174
List of compatible signals
175
Specifications
178
Dimensions
181
Precautions for attaching the Ceiling Mount Bracket
182
Index
183
Page 5

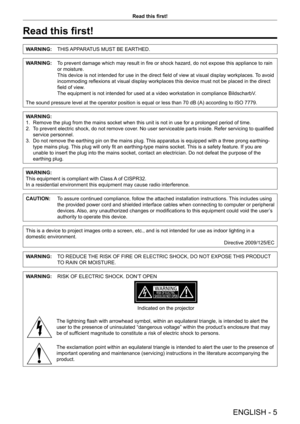

ENGLISH - 5 Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: T o prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is n ot intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view. The equipment is not intended for used at a video workstation in...
Page 6

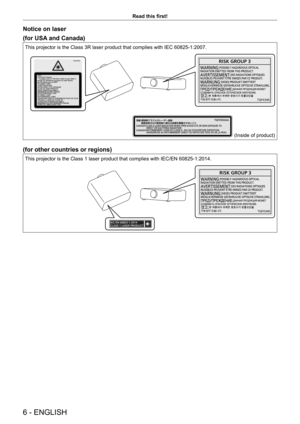

6 - ENGLISH Read this first! Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007. 529 529 (Inside of product) (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. 529
Page 7

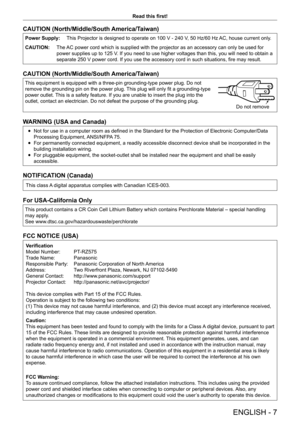

![Page 7
ENGLISH - 7
Read this first!
CAUTION (North/Middle/South America/Taiwan)
Power Supply:This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can o\
nly be used for
power supplies up to 125
V. If you need to use higher voltages than this, you will need to obtain a
separate 250
V power cord. If you use the accessory cord in such situations, fire may result.
CAUTION...](http://img.usermanuals.tech/thumb/58/100230/w300_projector_manual_9477_d-6.png "Page 7
ENGLISH - 7
Read this first!
CAUTION (North/Middle/South America/Taiwan)
Power Supply:This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can o\
nly be used for
power supplies up to 125
V. If you need to use higher voltages than this, you will need to obtain a
separate 250
V power cord. If you use the accessory cord in such situations, fire may result.
CAUTION...")
ENGLISH - 7 Read this first! CAUTION (North/Middle/South America/Taiwan) Power Supply:This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only. CAUTION: The AC power cord which is supplied with the projector as an accessory can o\ nly be used for power supplies up to 125 V. If you need to use higher voltages than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result. CAUTION...
Page 8

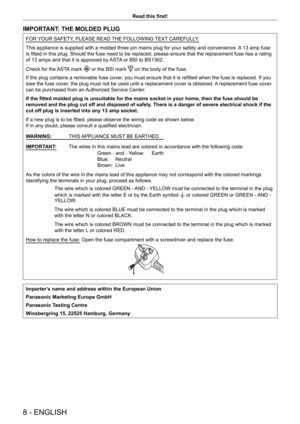

![Page 8
8 - ENGLISH
Read this first!
IMPORTANT: THE MOLDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a molded three pin mains plug for your s\
afety and convenience. A 13 amp fuse
is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating
of 13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark on the body of the fuse.
If the plug contains a removable fuse...](http://img.usermanuals.tech/thumb/58/100230/w300_projector_manual_9477_d-7.png "Page 8
8 - ENGLISH
Read this first!
IMPORTANT: THE MOLDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a molded three pin mains plug for your s\
afety and convenience. A 13 amp fuse
is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating
of 13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark on the body of the fuse.
If the plug contains a removable fuse...")
8 - ENGLISH Read this first! IMPORTANT: THE MOLDED PLUG FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a molded three pin mains plug for your s\ afety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse...
Page 9

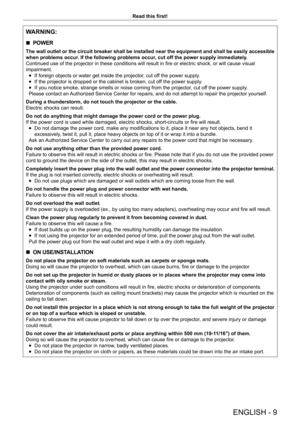

ENGLISH - 9 Read this first! WARNING: rPOWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment. fIf foreign objects or water get inside the projector , cut off the power supply. fIf the projector is dropped or the cabinet is...
Page 10

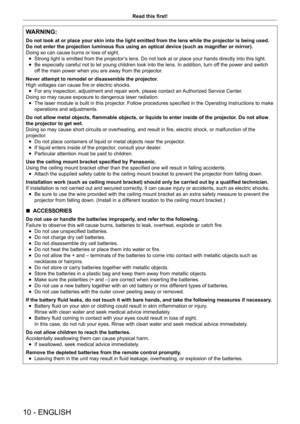

![Page 10
10 - ENGLISH
Read this first!
WARNING:
Do not look at or place your skin into the light emitted from the lens w\
hile the projector is being used.
Do not enter the projection luminous flux using an optical device (such as magnifier or mirror).
Doing so can cause burns or loss of sight.
fStrong light is emitted from the projector
’s lens. Do not look at or place your hands directly into this light.
fBe especially careful not to let young children look into the lens. In addition, turn of
f the power and...](http://img.usermanuals.tech/thumb/58/100230/w300_projector_manual_9477_d-9.png "Page 10
10 - ENGLISH
Read this first!
WARNING:
Do not look at or place your skin into the light emitted from the lens w\
hile the projector is being used.
Do not enter the projection luminous flux using an optical device (such as magnifier or mirror).
Doing so can cause burns or loss of sight.
fStrong light is emitted from the projector
’s lens. Do not look at or place your hands directly into this light.
fBe especially careful not to let young children look into the lens. In addition, turn of
f the power and...")
10 - ENGLISH Read this first! WARNING: Do not look at or place your skin into the light emitted from the lens w\ hile the projector is being used. Do not enter the projection luminous flux using an optical device (such as magnifier or mirror). Doing so can cause burns or loss of sight. fStrong light is emitted from the projector ’s lens. Do not look at or place your hands directly into this light. fBe especially careful not to let young children look into the lens. In addition, turn of f the power and...
