Panasonic Projector PT-RZ575 User Manual

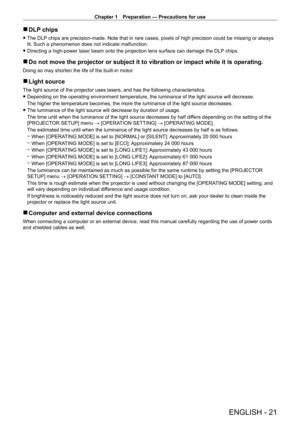

Chapter 1 Preparation — Precautions for use
ENGLISH - 21
 rDLP chips
 fThe DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always
lit. Such a phenomenon does not indicate malfunction.
 f Directing a high-power laser beam onto the projection lens surface can damage the DLP  chips.
 rDo not move the projector or subject it to vibration or impact while it \
is operating.
Doing so may shorten the life of the built-in motor.
 rLight source
The light source...

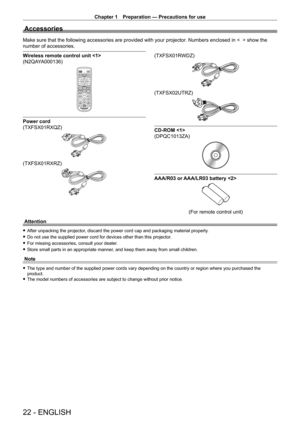

Chapter 1 Preparation — Precautions for use
22 - ENGLISH
Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in <    > show the
number of accessories.
Wireless remote control unit
(N2QAYA000136)
Power cord
(TXFSX01RXQZ)
(TXFSX01RXRZ)
(TXFSX01RWDZ)
(TXFSX02UTRZ)
CD-ROM
(DPQC1013ZA)
AAA/R03 or AAA/LR03 battery
(For remote control unit)
Attention
 f After unpacking the projector , discard the power cord cap and packaging material properly.
 fDo not...

Chapter 1 Preparation — Precautions for use
ENGLISH - 23
Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
Instruction/list (PDF) Operating InstructionsMulti Monitoring & Control Software Operating Instructions
Logo Transfer Software Operating Instructions
List of Compatible Device
ModelsThis is a list of projectors that are compatible with the software
contained in the CD-ROM and their restrictions.
Software Multi Monitoring & Control
Software (Windows)This software...

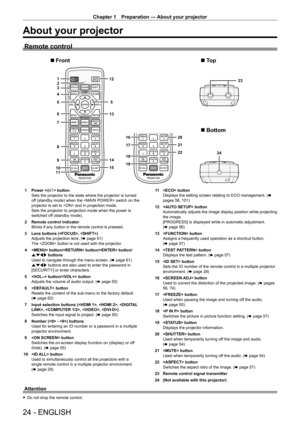

Chapter 1 Preparation — About your projector
24 - ENGLISH
About your projector
Remote control
1
2
6 5
7
8
916
18
19 17
10
11 4 3
135
12
14
15 23
24
20
21
22
Front
To p
Bottom
1 Power  button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
Sets the projector to projection mode when the power is
switched off (standby mode).
2

Remote control indicator
Blinks if any button in the remote control is...

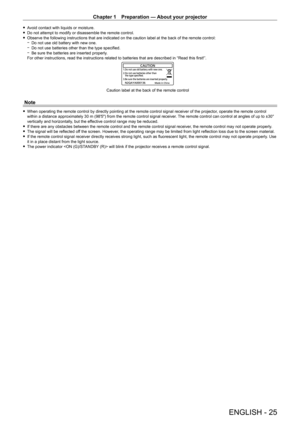

Chapter 1 Preparation — About your projector
ENGLISH - 25
 fAvoid contact with liquids or moisture. fDo not attempt to modify or disassemble the remote control. fObserve the following instructions that are indicated on the caution label at the back of the remote control: gDo not use old battery with new one. gDo not use batteries other than the type specified. gBe sure the batteries are inserted properly

.
For other instructions, read the instructions related to batteries that are described in “Read...

Chapter 1 Preparation — About your projector
26 - ENGLISH

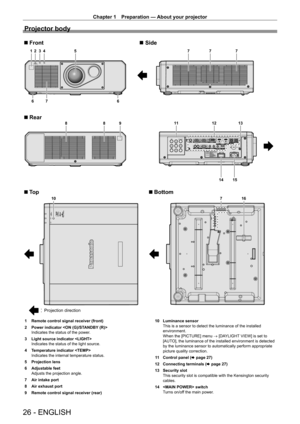

Projector body
1 2 34
6 6
8
75777
14 15
12
118913
Front
Side
Rear
16710
Projection direction
Bottom
To p
1 Remote control signal receiver (front)
2
Power indicator
Indicates the status of the power.
3

Light source indicator
Indicates the status of the light source.
4


T
 emperature indicator
Indicates the internal temperature status.
5

Projection lens
6


Adjustable feet
Adjusts the projection angle.
7


Air intake port
8


Air...

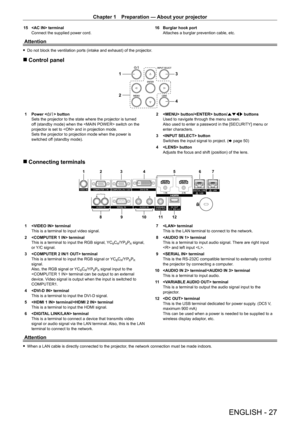

Chapter 1 Preparation — About your projector
ENGLISH - 27
15  terminal
Connect the supplied power cord.16
 Burglar hook port
Attaches a burglar prevention cable, etc.
Attention
 fDo not block the ventilation ports (intake and exhaust) of the projector .
 rControl panel
3
4
1
2
1 Power <
v/b> button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
Sets the projector to projection mode when the power is...

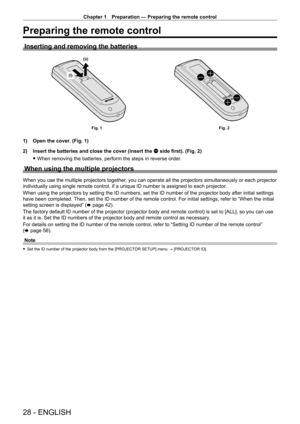

Chapter 1 Preparation — Preparing the remote control
28 - ENGLISH
Preparing the remote control
Inserting and removing the batteries
(i)(ii)
Fig. 1
Fig. 2
1) Open the cover. (Fig. 1)
2)
Insert the batteries and close the cover (insert the
 m side first). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order

.
When using the multiple projectors
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector
individually using...

ENGLISH - 29
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector \
such as the setup and connections.

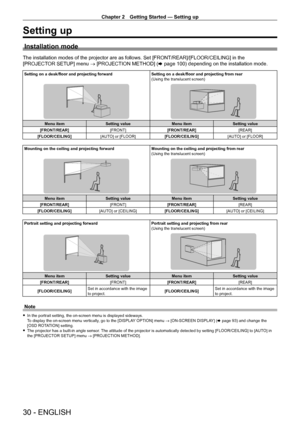

Chapter 2 Getting Started — Setting up
30 - ENGLISH
Setting up
Installation mode
The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the
[PROJECTOR SETUP] menu → [PROJECTION METHOD] (x
  page   100) depending on the installation mode.
Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu itemSetting value Menu itemSetting value
[FRONT/REAR] [FRONT][FRONT/REAR] [REAR]
[FLOOR/CEILING]...
