Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 41

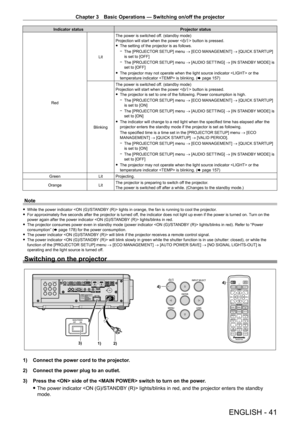

Indicator statusProjector status
Red Lit
The power is switched off. (standby mode)
Projection will start when the power <
v/b> button is pressed.
 fThe setting of the projector is as follows.
 gThe [PROJECT

OR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP]
is set to [OFF]
 g The [PROJECT

OR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is
set to [OFF]
 f The projector may not operate when the light source indicator  or the...

Chapter 3 Basic Operations — Switching on/off the projector
42 - ENGLISH

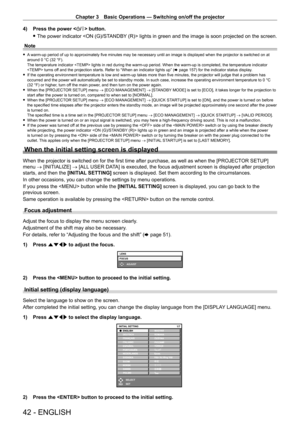

4) Press the power  button.
 fThe power indicator  lights in green and the image is soon projected on the screen.
Note
 f A warm-up period of up to approximately five minutes may be necessary until an image is displayed when the projector is switched on at
around 0   °C (32   °F).
The temperature indicator  lights in red during the warm-up period. When the warm-up is completed, the temperature indicator
 turns off and the...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 43

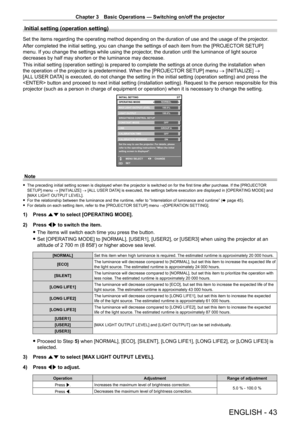

Initial setting (operation setting)
Set the items regarding the operating method depending on the duration of use and the usage of the projector.
After completed the initial setting, you can change the settings of each item from the [PROJECT OR SETUP]
menu. If you change the settings while using the projector, the duration until the luminance of light source
decreases by half may shorten or the luminance may decrease.
This initial...

Chapter 3 Basic Operations — Switching on/off the projector
44 - ENGLISH

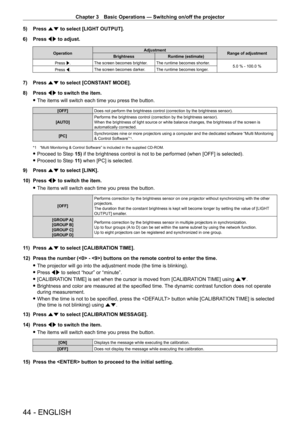

5) Press as to select [LIGHT OUTPUT].
6)
Press
 qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
5.0
  % - 100.0   %
Press q. The screen becomes darker. The runtime becomes longer.
7) Press
as to select [CONSTANT MODE].
8)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 45

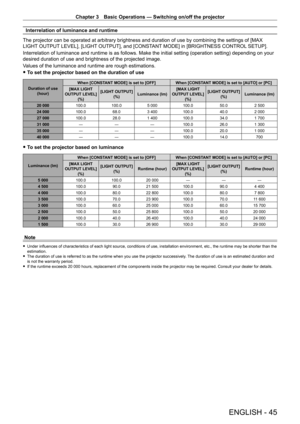

Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX
LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your
desired duration of use and brightness of the projected image.
Values of the...

Chapter 3 Basic Operations — Switching on/off the projector
46 - ENGLISH

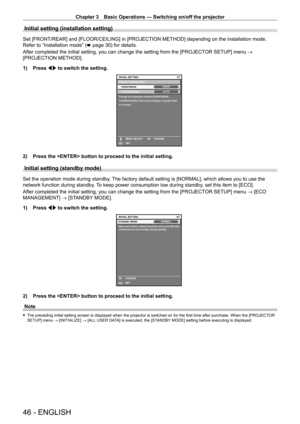

Initial setting (installation setting)
Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode.
Refer to “Installation mode” (x
  page   30) for details.
After completed the initial setting, you can change the setting from the [PROJECT OR SETUP] menu →
[PROJECTION METHOD].
1)

Press
 qw to switch the setting.
3/7
ENTERSET CHANGE
Change the projection method (FRONT/REAR,
FLOOR/CEILING) if...

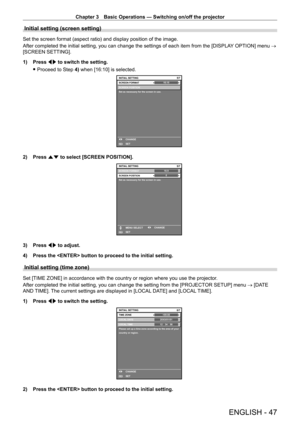

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 47
Initial setting (screen setting)
Set the screen format (aspect ratio) and display position of the image.
After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu →
[SCREEN SETTING].
1)

Press
 qw to switch the setting.
 fProceed to Step

4) when [16:10] is selected.
16:105/7
SCREEN POSITION
Set as necessary for the screen in use.
INITIAL SETTING
SET CHANGESCREEN FORMAT
ENTER
2)...

Chapter 3 Basic Operations — Switching on/off the projector
48 - ENGLISH
Note
 fIn the factory default setting, the time zone of the projector is set to +09:00 (Japan and Korea Standard  T ime). Change the setting of the
[PROJECTOR SETUP] menu → [DATE AND TIME]  → [TIME ZONE] to the time zone of the region where you use the projector .
Initial setting (date and time)
Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR
SETUP] menu → [DATE AND...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 49

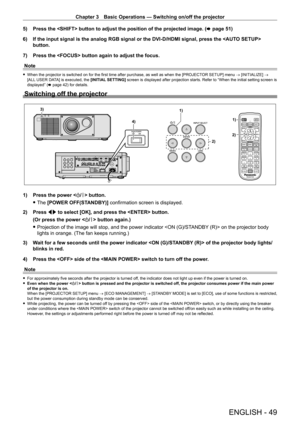

5) Press the  button to adjust the position of the projected image. \
(x   page   51)
6)
If the input signal is the analog RGB signal or the DVI
 - D/HDMI signal, press the
button.
7)

Press the  button again to adjust the focus.
Note
 f When the projector is switched on for the first time after purchase, as well as when the [PROJECT OR SETUP] menu  → [INITIALIZE] →
[ALL USER DATA] is executed, the [INITIAL SETTING]  screen is...

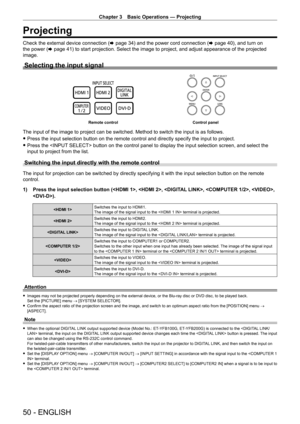

Chapter 3 Basic Operations — Projecting
50 - ENGLISH
Projecting
Check the external device connection (x   page   34) and the power cord connection (x   page   40), and turn on
the power (x   page   41) to start projection. Select the image to project, and adjust appearance of the projected
image.
Selecting the input signal
Remote control Control panel
The input of the image to project can be switched. Method to switch the input is as follows.
 fPress the input selection button on the remote control and...
