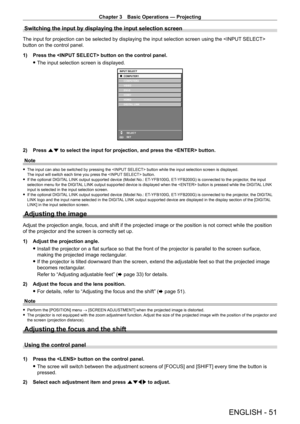

Chapter 3 Basic Operations — Projecting
ENGLISH - 51
Switching the input by displaying the input selection screen
The input for projection can be selected by displaying the input selection screen using the
button on the control panel.
1)

Press the  button on the control panel.
 fThe input selection screen is displayed.
INPUT SELECT
COMPUTER1
COMPUTER2
VIDEO
DVI-D
HDMI1
HDMI2
DIGITAL LINK
SELECT
SET
ENTER
2) Press  as to select the input for projection, and press the  button.
Note
 f The input can...

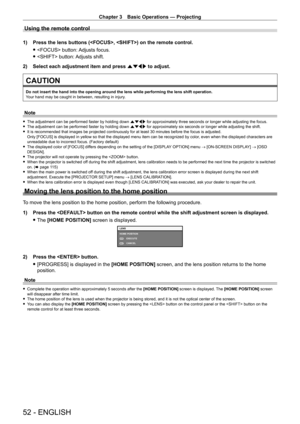

Chapter 3 Basic Operations — Projecting
52 - ENGLISH
Using the remote control
1) Press the lens buttons (, ) on the remote control.
 f button:

Adjusts focus.
 f button:

Adjusts shift.
2)

Select each adjustment item and press
 asqw to adjust.
CAUTION
Do not insert the hand into the opening around the lens while performing\
 the lens shift operation.
Your hand may be caught in between, resulting in injury.
Note
 fThe adjustment can be performed faster by holding down  asqw for approximately three...

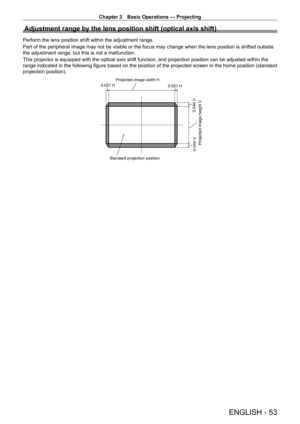

Chapter 3 Basic Operations — Projecting
ENGLISH - 53
Adjustment range by the lens position shift (optical axis shift)
Perform the lens position shift within the adjustment range.
Part of the peripheral image may not be visible or the focus may change \
when the lens position is shifted outside
the adjustment range, but this is not a malfunction.
This projector is equipped with the optical axis shift function, and projection position can be adjusted within the
range indicated in the following figure...

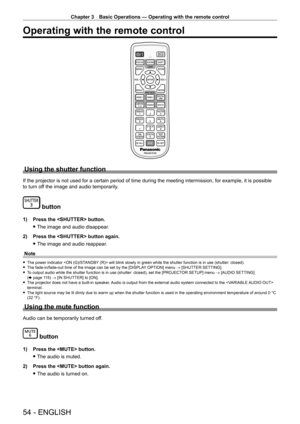

Chapter 3 Basic Operations — Operating with the remote control
54 - ENGLISH
Operating with the remote control
Using the shutter function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible
to turn off the image and audio temporarily.
 button
1) Press the  button.
 fThe image and audio disappear

.
2)

Press the  button again.
 fThe image and audio reappear

.
Note
 f The power indicator  will blink slowly in green while the shutter...

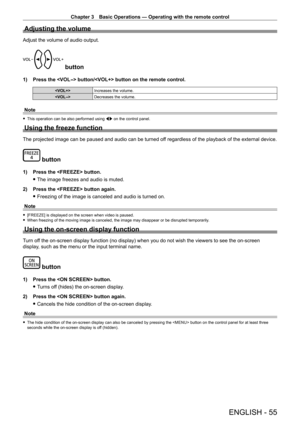

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 55
Adjusting the volume
Adjust the volume of audio output.
 button
1) Press the  button/ button on the remote control.
Increases the volume.
 Decreases the volume.
Note
 fThis operation can be also performed using  qw  on the control panel.
Using the freeze function
The projected image can be paused and audio can be turned off regardless of the playback of the external device.
 button
1) Press the  button.
 fThe image freezes and...

Chapter 3 Basic Operations — Operating with the remote control
56 - ENGLISH

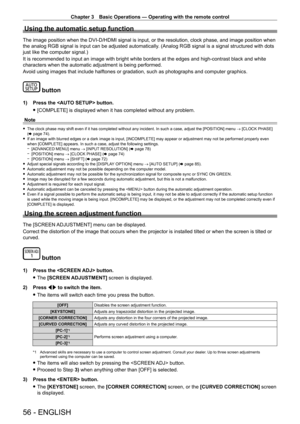

Using the automatic setup function
The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when
the analog RGB signal is input can be adjusted automatically . (Analog RGB signal is a signal structured with dots
just like the computer signal.)
It is recommended to input an image with bright white borders at the edges and high-contrast black and white
characters when the...

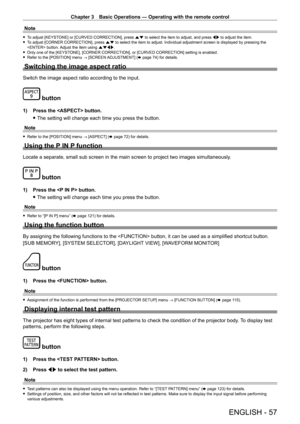

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 57
Note
 fTo adjust [KEYSTONE] or [CURVED CORRECTION], press as to select the item to adjust, and press qw to adjust the item. fT
o adjust [CORNER CORRECTION], press as to select the item to adjust. Individual adjustment screen is displayed by pressing the
 button. Adjust the item using asqw .
 fOnly one of the [KEYST

ONE], [CORNER CORRECTION], or [CURVED CORRECTION] setting is enabled.
 fRefer to the [POSITION] menu  →

 [SCREEN...

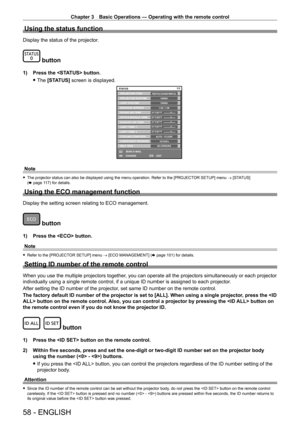

Chapter 3 Basic Operations — Operating with the remote control
58 - ENGLISH
Using the status function
Display the status of the projector.
 button
1) Press the  button.
 fThe

[STATUS] screen is displayed.
10000h
10000h
1.00 / 1.00
1/3
31°C/87°F27°C/80°F31°C/87°F31°C/87°F31°C/87°F
1013hPa
MENUEXIT
CHANGEENTERSEND E-MAIL
SELF TEST
ATMOSPHERIC PRESSUREAUTO - FLOOR
NO ERRORSCOOLING CONDITION LIGHT TEMP. 2 LIGHT TEMP. 1 EXHAUST AIR TEMP. OPTICS MODULE TEMP. INTAKE AIR TEMP. MAIN/SUB VERSION LIGHT RUNTIME...

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 59

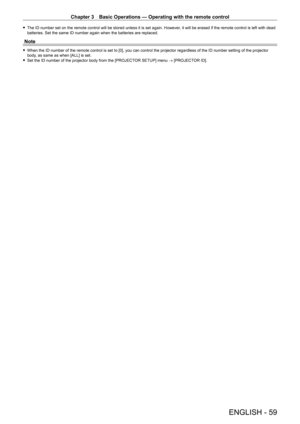

 fThe ID number set on the remote control will be stored unless it is set again. However , it will be erased if the remote control is left with dead
batteries. Set the same ID number again when the batteries are replaced.
Note
 f When the ID number of the remote control is set to [0], you can control the projector regardless of the ID number setting of the projector
body
, as same as when [ALL] is set.
 fSet the ID number of...
