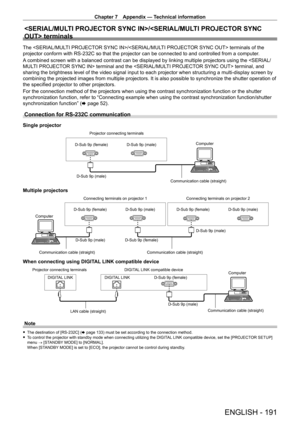

Panasonic Projector PT-RZ770 User Manual

Chapter 7 Appendix — Technical information
ENGLISH - 191
/ terminals
The / terminals of the
projector conform with RS- 232C so that the projector can be connected to and controlled from a computer .
A combined screen with a balanced contrast can be displayed by linking multiple projectors using the  terminal and the  terminal, and
sharing the brightness level of the video signal input to each projector\
 when structuring a multi-display screen by
combining the projected images from multiple...

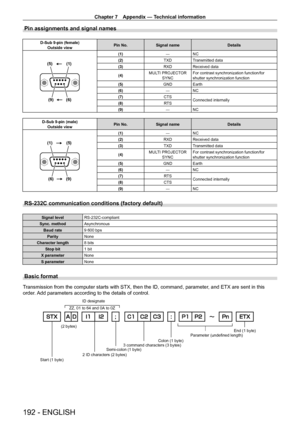

Chapter 7 Appendix — Technical information
192 - ENGLISH
Pin assignments and signal names
D-Sub 9-pin (female)Outside view Pin No.
Signal name Details
(9) (6)
(5) (1)
(1)
―NC
(2) TXDTransmitted data
(3) RXDReceived data
(4) MULTI PROJECTOR
SYNC For contrast synchronization function/for
shutter synchronization function
(5) GNDEarth
(6) ―NC
(7) CTS
Connected internally
(8) RTS
(9) ―NC
D-Sub 9-pin (male)
Outside view Pin No.
Signal name Details
(6) (9)
(1) (5)
(1)
―NC
(2) RXDReceived data
(3)...

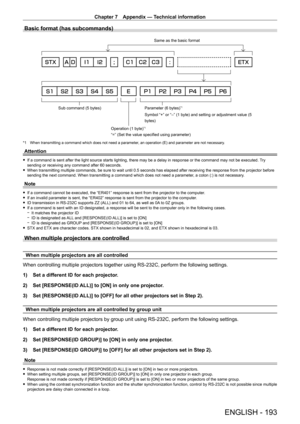

Chapter 7 Appendix — Technical information
ENGLISH - 193
Basic format (has subcommands)
Parameter (6 bytes)*1
Symbol “+” or “–” (1 byte) and setting or adjustment va\
lue (5
bytes)
Operation (1 byte)
*1
“=” (Set the value specified using parameter)
Sub command (5 bytes) Same as the basic format
*1 When transmitting a command which does not need a parameter
, an operation (E) and parameter are not necessary.
Attention
 fIf a command is sent after the light source starts lighting, there may be a delay in...

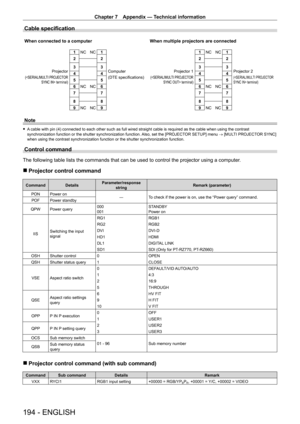

Chapter 7 Appendix — Technical information
194 - ENGLISH
Cable specification
1NC    NC 1
2 2
3 3
4    4
5 5
6 NC    NC 6
7 7
8 8
9 NC    NC 91NC    NC 1
2 2
3 3
4    4
5 5
6 NC    NC 6
7 7
8 8
9 NC    NC 9
When connected to a computer
Projector
( terminal)
Computer
(DTE specifications)
When multiple projectors are connected
Projector 1
( terminal)
Projector 2
( terminal)
Note
 fA cable with pin (4) connected to each other such as full wired straight cable is required as the cable when using the contrast...

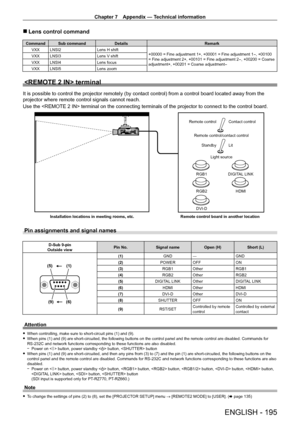

Chapter 7 Appendix — Technical information
ENGLISH - 195
 rLens control command
Command Sub command Details Remark
VXX LNSI2 Lens H shift
+00000 = Fine adjustment 1+, +00001 = Fine adjustment 1
-, +00100
= Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse
adjustment+, +00201 = Coarse adjustment-
VXX LNSI3 Lens V shift
VXX LNSI4 Lens focus
VXX LNSI5 Lens zoom
 terminal
It is possible to control the projector remotely (by contact control) from a control board located away from the...

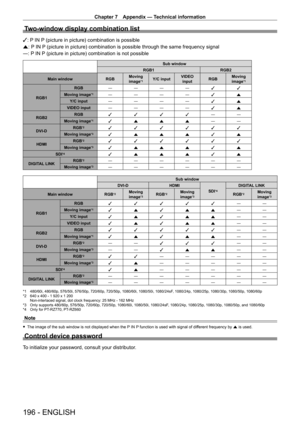

Chapter 7 Appendix — Technical information
196 - ENGLISH
Two-window display combination list
l: P IN P (picture in picture) combination is possible
a: P IN P (picture in picture) combination is possible through the same frequency signal
―: P IN P (picture in picture) combination is not possible
Sub window
RGB1 RGB2
Main window RGBMoving
*1Y/C input VIDEO
input RGBMoving
image*1
RGB1 RGB
――――
ll
Moving image*1― ―――
la
Y/C input ――――
la
VIDEO input ――――
la
RGB2 RGB
llll―
―
Moving image
*1l a aa ―...

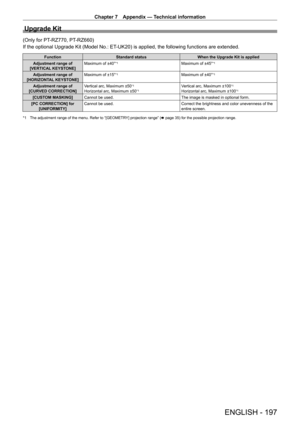

Chapter 7 Appendix — Technical information
ENGLISH - 197
Upgrade Kit
(Only for PT-RZ770, PT- RZ660)
If the optional Upgrade Kit (Model No.: ET
-
 UK20) is applied, the following functions are extended.
FunctionStandard status When the Upgrade Kit is applied
Adjustment range of
[VERTICAL KEYSTONE] Maximum of ±40°
*1Maximum of ±45°*1
Adjustment range of
[HORIZONTAL KEYSTONE] Maximum of ±15°*1Maximum of ±40°*1
Adjustment range of
[CURVED CORRECTION] Vertical arc, Maximum ±50*1
Horizontal arc, Maximum...

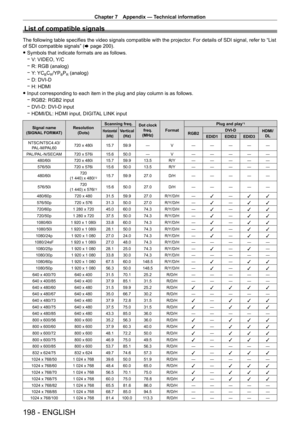

Chapter 7 Appendix — Technical information
198 - ENGLISH
List of compatible signals
The following table specifies the video signals compatible with the projector. For details of SDI signal, refer to “List
of SDI compatible signals” ( x
  page   200).
 fSymbols that indicate formats are as follows.
 gV

: VIDEO, Y/C
 gR: RGB (analog)
 gY

: YC
BCR/YPBPR (analog)
 gD: DVI

-
D
 g H: HDMI
 fInput corresponding to each item in the plug and play column is as follo\
ws.
 gRGB2: RGB2 input
 gDVI

-
D: DVI
-
D...

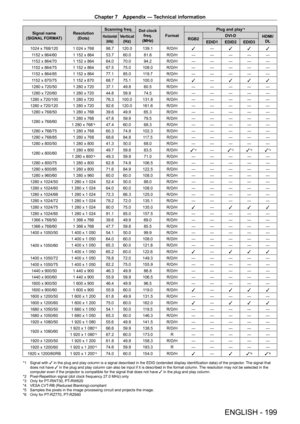

Chapter 7 Appendix — Technical information
ENGLISH - 199
Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and play*1
Horizontal
(kHz)Vertical(Hz)RGB2 DVI - D
HDMI/
DL
EDID1 EDID2 EDID3
1024

x

768/120 1

024

x

768 98.7 120.0 139.1 R/D/H
l―
l l l
1152

x

864/60 1

152

x

864 53.7 60.0 81.6 R/D/H ― ― ― ― ―
1152

x

864/70 1

152

x

864 64.0 70.0 94.2 R/D/H ― ― ― ― ―
1152

x

864/75 1

152

x

864 67.5 75.0 108.0 R/D/H ― ― ― ― ―
1152...

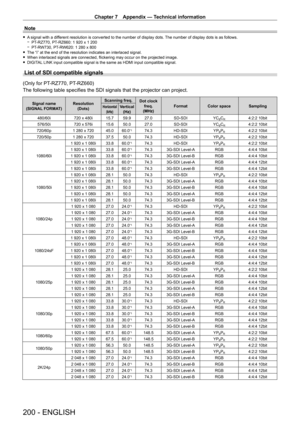

Chapter 7 Appendix — Technical information
200 - ENGLISH
Note
 fA signal with a different resolution is converted to the number of display dots. The number of display dots is as follows. gPT-
RZ770, PT- RZ660: 1   920   x   1   200
 gPT-

RW730, PT
-
 RW620: 1   280   x   800
 fThe “i” at the end of the resolution indicates an interlaced signal. fWhen interlaced signals are connected, flickering may occur on the projected image. fDIGIT

AL LINK input compatible signal is the same as HDMI input compatible...
