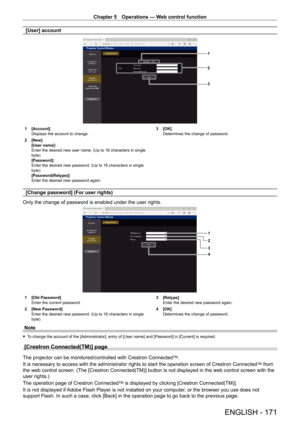

Panasonic Projector PT-RZ770 User Manual

Chapter 5 Operations — Web control function
ENGLISH - 171
[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4...

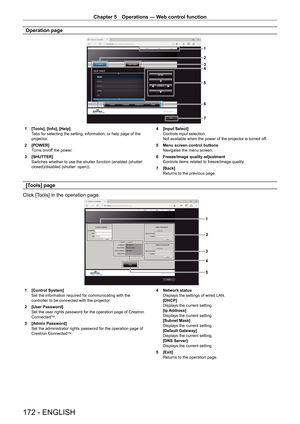

Chapter 5 Operations — Web control function
172 - ENGLISH
Operation page
1
2
34
5
6
7
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2

[POWER]
T

urns on/off the power.
3

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 4

 [Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
5

Menu screen control buttons
Navigates the menu screen.
6...

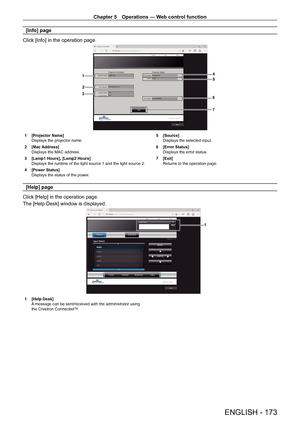

Chapter 5 Operations — Web control function
ENGLISH - 173
[Info] page
Click [Info] in the operation page.
4
5
6
7
1
2
3
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp1 Hours], [Lamp2 Hours]
Displays the runtime of the light source 1 and the light source 2.
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected input.
6

[Error Status]
Displays the error status.
7


[Exit]
Returns to the operation page.
[Help]...

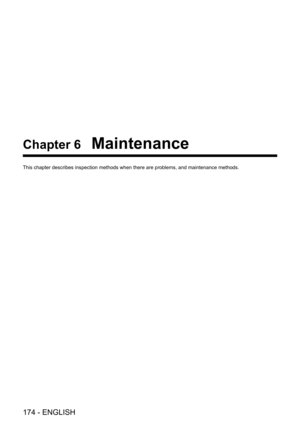

174 - ENGLISH
Chapter 6 Maintenance
This chapter describes inspection methods when there are problems, and m\
aintenance methods.

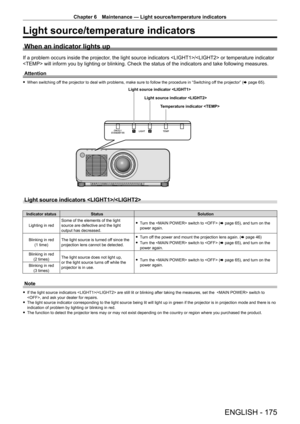

Chapter 6 Maintenance — Light source/temperature indicators
ENGLISH - 175
Light source/temperature indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicators / or temperature indicator
 will inform you by lighting or blinking. Check the status of the indicators and take following measures.Attention
 f When switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x   page   65).
Light source...

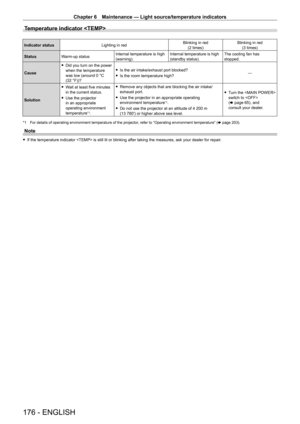

Chapter 6 Maintenance — Light source/temperature indicators
176 - ENGLISH
Temperature indicator
Indicator statusLighting in red Blinking in red
(2 times) Blinking in red
(3 times)
Status Warm-up status Internal temperature is high
(warning).Internal temperature is high
(standby status).The cooling fan has
stopped.
Cause
 f Did you turn on the power
when the temperature
was low (around 0

  °C
(32
  °F))?
 fIs the air intake/exhaust port blocked?
 fIs the room temperature high? ―
Solution
 f W

ait...

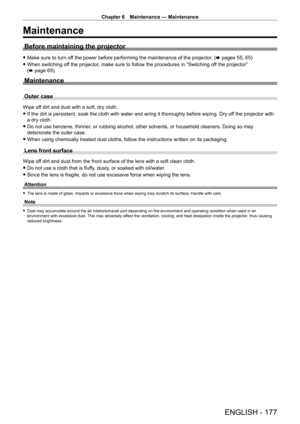

Chapter 6 Maintenance — Maintenance
ENGLISH - 177
Maintenance
Before maintaining the projector
 fMake sure to turn of f the power before performing the maintenance of the projector. (x pages 55, 65)
 fWhen switching of

f the projector, make sure to follow the procedures in “Switching off the projector”
(x
  page   65).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry of

f the...

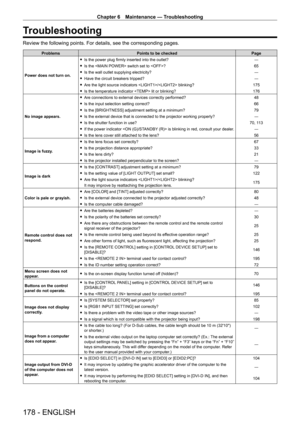

Chapter 6 Maintenance — Troubleshooting
178 - ENGLISH
Troubleshooting
Review the following points. For details, see the corresponding pages.
ProblemsPoints to be checked Page
Power does not turn on.
 f Is the power plug firmly inserted into the outlet? ―
 fIs the  switch set to ? 65
 fIs the wall outlet supplying electricity? ―
 fHave the circuit breakers tripped? ―
 fAre the light source indicators / blinking? 175
 fIs the temperature indicator  lit or blinking? 176
No image appears.
 f Are connections...

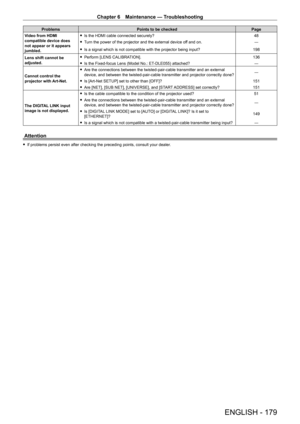

Chapter 6 Maintenance — Troubleshooting
ENGLISH - 179
ProblemsPoints to be checked Page
Video from HDMI
compatible device does
not appear or it appears
jumbled.
 f Is the HDMI cable connected securely? 48
 fT

urn the power of the projector and the external device off and on. ―
 fIs a signal which is not compatible with the projector being input? 198
Lens shift cannot be
adjusted.
 f Perform [LENS CALIBRA

TION]. 136
 fIs the Fixed-focus Lens (Model No.: ET-

DLE055) attached?―
Cannot control the...

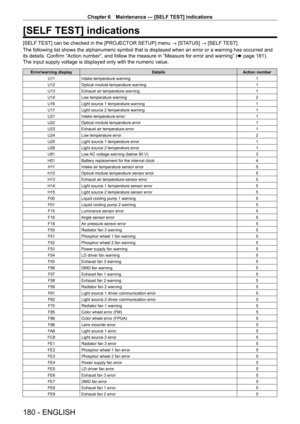

Chapter 6 Maintenance — [SELF TEST] indications
180 - ENGLISH
[SELF TEST] indications
[SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST].
The following list shows the alphanumeric symbol that is displayed when \
an error or a warning has occurred and
its details. Confirm “Action number”, and follow the measure in “Measure for error and warning” (x
  page   181).
The input supply voltage is displayed only with the numeric value.
Error/warning display DetailsAction number
U...
