Panasonic Projector PT-RZ770 User Manual

Chapter 4 Settings — [TEST PATTERN] menu
ENGLISH - 141
[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   74) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input
signal before performing various adjustments.
1)

Press
 qw to switch the [TEST PATTERN]...

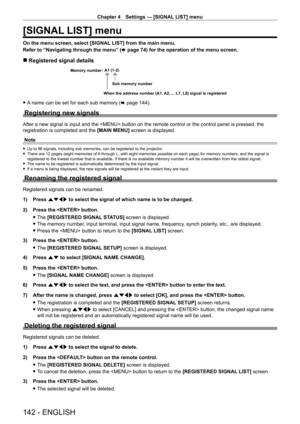

Chapter 4 Settings — [SIGNAL LIST] menu
142 - ENGLISH
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   74) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the address number (A1, A2, ... L7, L8) signal is registered Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   144).
Registering new signals
After a new signal is input and the  button on the remote...

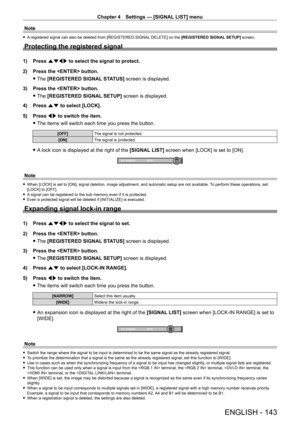

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 143
Note
 fA registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press  asqw to select the signal to protect.
2)
Press the  button.
 fThe

[REGISTERED SIGNAL STATUS] screen is displayed.
3)

Press the  button.
 fThe

[REGISTERED SIGNAL SETUP] screen is displayed.
4)

Press
 as to select [LOCK].
5)

Press
 qw to switch the item.
 fThe items will switch...

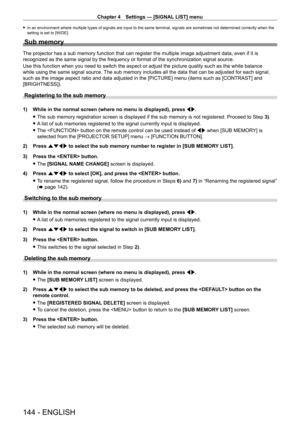

Chapter 4 Settings — [SIGNAL LIST] menu
144 - ENGLISH
 fIn an environment where multiple types of signals are input to the same \
terminal, signals are sometimes not determined correctly when the
setting is set to [WIDE].
Sub memory
The projector has a sub memory function that can register the multiple i\
mage adjustment data, even if it is
recognized as the same signal by the frequency or format of the synchronization signal source.
Use this function when you need to switch the aspect or adjust the...

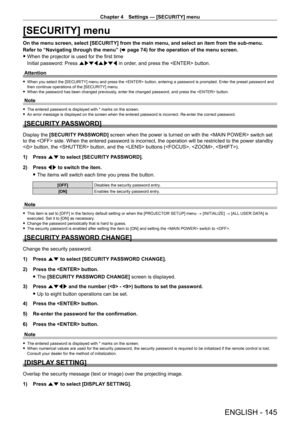

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 145
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   74) for the operation of the menu screen.
 fWhen the projector is used for the first time
Initial password: Press  awsqawsq in order

, and press the  button.
Attention
 f When you select the [SECURITY] menu and press the  button, entering a password is prompted. Enter the preset password and...

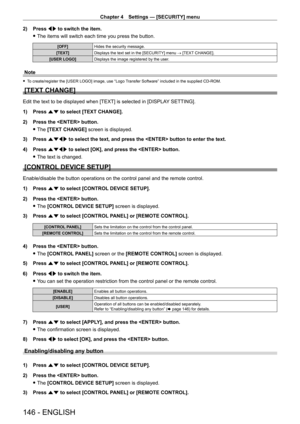

Chapter 4 Settings — [SECURITY] menu
146 - ENGLISH
2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Hides the security message.
[TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE].
[USER LOGO] Displays the image registered by the user.
Note
 fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING].
1)
Press...

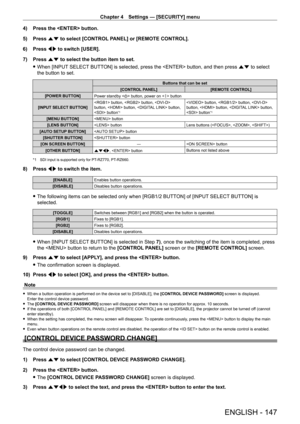

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 147
4) Press the  button.
5)
Press
 as to select [CONTROL PANEL] or [REMOTE CONTROL].
6)

Press
 qw to switch [USER].
7)

Press
 as to select the button item to set.
 fWhen [INPUT

 SELECT BUTTON] is selected, press the  button, and then press as to select
the button to set.
Buttons that can be set
[CONTROL PANEL] [REMOTE CONTROL]
[POWER BUTTON] Power standby  button, power on  button
[INPUT SELECT BUTTON]  button,  button,
button,  button,...

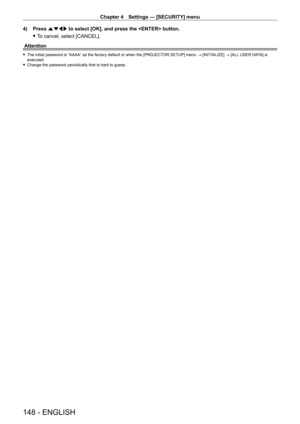

Chapter 4 Settings — [SECURITY] menu
148 - ENGLISH
4) Press asqw to select [OK], and press the  button.
 fT

o cancel, select [CANCEL].
Attention
 f The initial password is “AAAA” as the factory default or when the [PROJECT OR SETUP] menu  → [INITIALIZE] → [ALL USER DATA] is
executed.
 f Change the password periodically that is hard to guess.

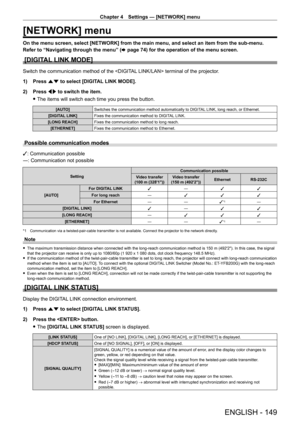

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 149
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   74) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the  terminal of the projector.
1)

Press
 as to select [DIGITAL LINK MODE].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Switches the...

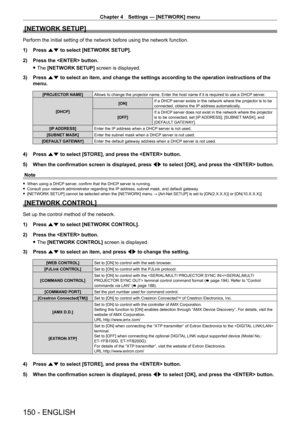

Chapter 4 Settings — [NETWORK] menu
150 - ENGLISH
[NETWORK SETUP]
Perform the initial setting of the network before using the network func\
tion.
1)
Press
 as to select [NETWORK SETUP].
2)

Press the  button.
 fThe

[NETWORK SETUP] screen is displayed.
3)

Press
 as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP  server.
[DHCP] [ON]
If a DHCP...
