Panasonic Projector PT-RZ770 User Manual

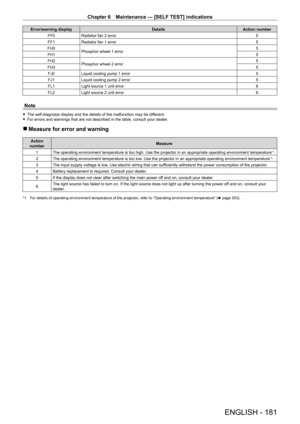

Chapter 6 Maintenance — [SELF TEST] indications
ENGLISH - 181
Error/warning displayDetailsAction number
FF0 Radiator fan 2 error 5
FF1 Radiator fan 1 error 5
FH0 Phosphor wheel 1 error 5
FH1 5
FH2 Phosphor wheel 2 error 5
FH3 5
FJ0 Liquid cooling pump 1 error 5
FJ1 Liquid cooling pump 2 error 5
FL1 Light source 1 unit error 6
FL2 Light source 2 unit error 6
Note
 fThe self-diagnosis display and the details of the malfunction may be dif\
 ferent. fFor errors and warnings that are not described in the...

182 - ENGLISH

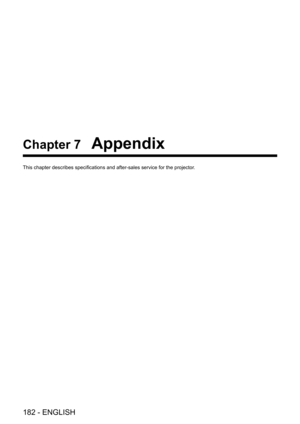

Chapter 7 Appendix
This chapter describes specifications and after-sales service for the projector.

Chapter 7 Appendix — Technical information
ENGLISH - 183

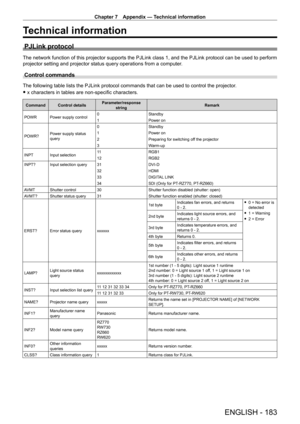

Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform
projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector .
 fx characters in tables are non-specific characters.
Command Control details Parameter/response
string...

Chapter 7 Appendix — Technical information
184 - ENGLISH

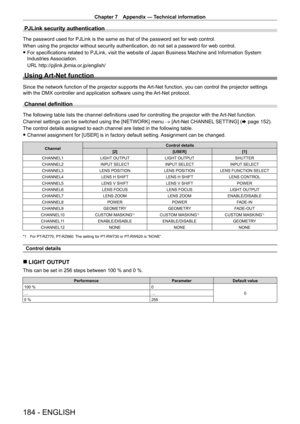

PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a p\
assword for web control.
 fFor specifications related to PJLink, visit the website of Japan Business Machine and Information System
Industries Association.
URL

 http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the...

Chapter 7 Appendix — Technical information
ENGLISH - 185

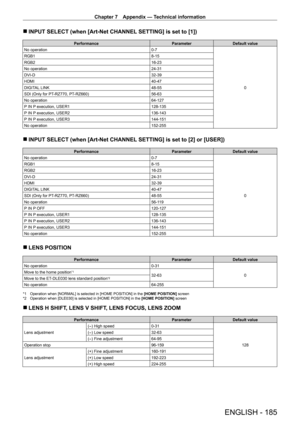

 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Performance ParameterDefault value
No operation 0
- 7
0
RGB1
8
- 15
RGB2 16
- 23
No operation 24
- 31
DVI
-
D 32
- 39
HDMI 40
- 47
DIGITAL LINK 48
- 55
SDI (Only for PT
-

RZ770, PT
-
 RZ660) 56
- 63
No operation 64
- 127
P IN P execution, USER1 128
- 135
P IN P execution, USER2 136
- 143
P IN P execution, USER3 144
- 151
No operation 152
- 255
 rINPUT SELECT (when [Art-Net CHANNEL...

Chapter 7 Appendix — Technical information
186 - ENGLISH

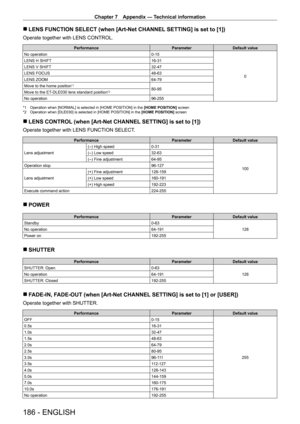

 rLENS FUNCTION SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Operate together with LENS CONTROL.
PerformanceParameterDefault value
No operation 0
- 15
0
LENS H SHIFT
16
- 31
LENS V SHIFT 32
- 47
LENS FOCUS 48
- 63
LENS ZOOM 64
- 79
Move to the home position
*180-95
Move to the ET-
DLE030 lens standard position*2
No operation 96 - 255
*1 Operation when [NORMAL] is selected in [HOME POSITION] in the [HOME POSITION] screen
*2  Operation when...

Chapter 7 Appendix — Technical information
ENGLISH - 187

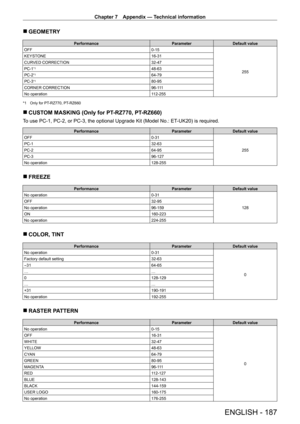

 rGEOMETR Y
Performance ParameterDefault value
OFF 0
- 15
255
KEYSTONE
16
- 31
CURVED CORRECTION 32
- 47
PC-1
*148-63
PC-2
*164-79
PC-3
*180-95
CORNER CORRECTION 96
- 111
No operation 112
- 255
*1 Only for PT- RZ770, PT- RZ660
 rCUSTOM MASKING (Only for PT‑RZ770, PT‑RZ660)
To use PC-1, PC-2, or PC-3, the optional Upgrade Kit (Model No.: ET- UK20) is required.
PerformanceParameterDefault value
OFF 0
- 31
255
PC-1
32
- 63
PC-2 64
- 95
PC-3 96
- 127...

Chapter 7 Appendix — Technical information
188 - ENGLISH

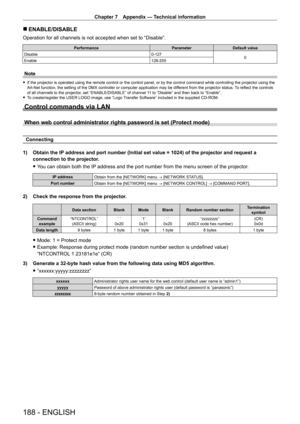

 rENABLE/DISABLE
Operation for all channels is not accepted when set to “Disable”.
Performance ParameterDefault value
Disable 0
- 127 0
Enable 128
- 255
Note
 fIf the projector is operated using the remote control or the control pan\
el, or by the control command while controlling the projector using the \
Art-Net function, the setting of the DMX controller or computer application may be dif ferent from the projector status.
To reflect the...

Chapter 7 Appendix — Technical information
ENGLISH - 189

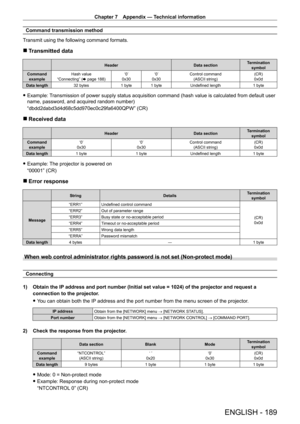

Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example Hash value
“Connecting” ( x

page

188) ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 32

bytes 1
  byte 1   byteUndefined length 1
  byte
 fExample: Transmission of power supply status acquisition command (hash value is calculated from default user
name, password, and...

Chapter 7 Appendix — Technical information
190 - ENGLISH

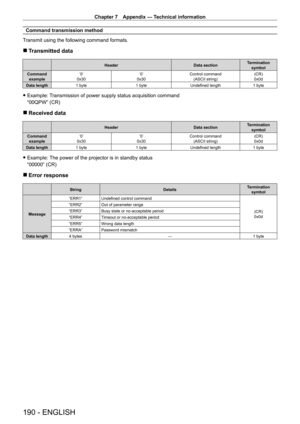

Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 1

byte 1
  byte Undefined length 1
  byte
 fExample: Transmission of power supply status acquisition command
“00QPW” (CR)
 r Received data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command...
