Panasonic Projector PT-RZ970 User Manual

Thank you for purchasing this Panasonic product.
 ■The Operating Instructions correspond to the firmware’

s main version 2.00 and higher.
 ■This manual is common to all the models regardless of suffixes of the Model No.
 zfor Taiwan
BT: Black model, the standard zoom lens supplied
 z for India
BD: Black model, the standard zoom lens supplied   L
BD: Black model, the lens sold separately
WD: White model, the standard zoom lens supplied   LWD: White model, the lens sold separately
 zfor

Asia (except for...

2 - ENGLISH
Contents
Contents
Read this first!    5
Chapter 1

Preparation
Precautions for use      17
Cautions when transporting

 17
Cautions when installing

 17
Security

 2 0
DIGIT
AL LINK

 2 0
Art-Net

 2 1
Early W
arning Software

 2 1
Disposal

 2 1
Cautions on use

 2 1
Accessories

 2 3
Optional accessories

 2 4
About your projector

 25
Remote control

 2 5
Projector body

 2 7
Preparing the remote control

 30
Inserting and removing...

ENGLISH - 3
Contents
[POSITION] menu

 89
[SHIFT]

 8 9
[ASPECT]

 8 9
[ZOOM]

 9 0
[CLOCK PHASE]

 9 1
[GEOMETR
Y]

 9 1
[ADV
ANCED MENU] menu

 94
[DIGIT
AL CINEMA REALITY]

 9 4
[BLANKING]

 9 4
[INPUT
 RESOLUTION]

 9 5
[CLAMP
 POSITION]

 9 5
[EDGE BLENDING]

 9 5
[FRAME RESPONSE]

 9 7
[RASTER POSITION]

 9 8
[DISPLA
Y LANGUAGE] menu

 99
Changing the display language

 9 9
[DISPLA
Y OPTION] menu

 100
[COLOR MA
TCHING]

 100...

4 - ENGLISH
Contents
[NETWORK] menu     151
[DIGIT
AL LINK MODE]

 151
[DIGIT
AL LINK STATUS]

 151
[NETWORK SETUP]

 152
[NETWORK CONTROL]

 152
[NETWORK ST
ATUS]

 153
[DIGIT
AL LINK MENU]

 153
[Art-Net SETUP]

 153
[Art-Net CHANNEL
 SETTING]

 154
[Art-Net ST
ATUS]

 154
Chapter 5 Operations
Network connection     156
Connecting to the network

 156
W
eb control function

 159
Computer that can be used for setting

 159
Accessing from the web browser...

ENGLISH - 5

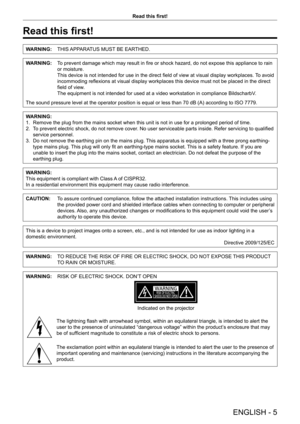

Read this first!
Read this first!
WARNING:  THIS  APPARATUS MUST BE EARTHED.
WARNING:  T o prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or moisture.
   This device is n

ot intended for use in the direct field of view at visual display workplaces. To avoid
incommoding reflexions at visual display workplaces this device must not be placed in the direct
field of view.
   The equipment

 is not intended for used at a video workstation in...

6 - ENGLISH
Read this first!

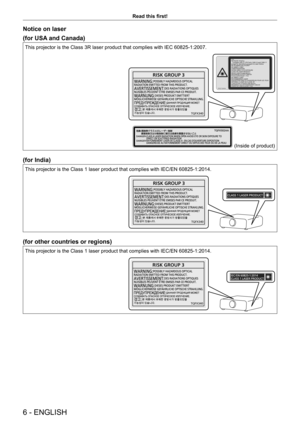

Notice on laser
(for USA and Canada)
This projector is the Class 3R laser product that complies with IEC 60825-1:2007.
529
%125;
For North America
“Complies with 21 CFR Parts 1040.10 and 1040.11
except for deviations pursuant to Laser Notice
No.50 dated june 24.2007”
IEC 60825-1:2007
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
WAVE LENGTH:448-462nm
MAXIMUM OUTPUT:248mW
PULSE DURATION:1.1ms
IEC 60825-1:2007
RAYONNEMENT LASER
EXPOSITION DIRECTE...

ENGLISH - 7
Read this first!
CAUTION (North/Middle/South America/Taiwan)
Power Supply:This Projector is designed to operate on 100   V - 240   V, 50   Hz/60   Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for
power supplies up to 125
  V. If you need to use higher voltages than this, you will need to obtain a
separate 250
  V power cord. If you use the accessory cord in such situations, fire may result.
CAUTION...

8 - ENGLISH
Read this first!

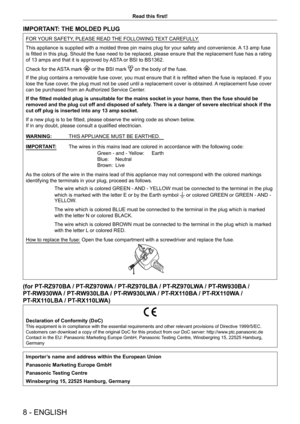

IMPORTANT: THE MOLDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a molded three pin mains plug for your safety and convenience. A 13 amp fuse
is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating
of 13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
 or the BSI mark  on the body of the fuse.
If the plug contains a removable fuse...

ENGLISH - 9
Read this first!

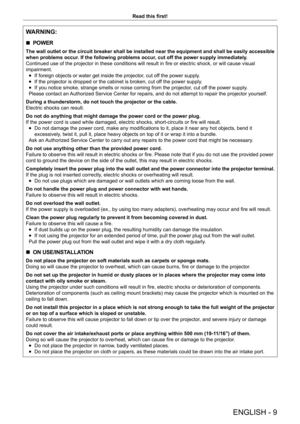

WARNING:
 rPOWER
The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible
when problems occur. If the following problems occur, cut off the power supply immediately.
Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual
impairment.
 fIf foreign objects or water get inside the projector

, cut off the power supply.
 fIf the projector is dropped or the cabinet is...

10 - ENGLISH
Read this first!

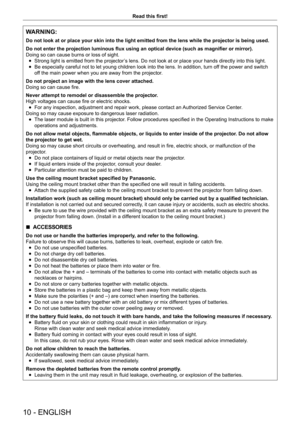

WARNING:
Do not look at or place your skin into the light emitted from the lens w\
hile the projector is being used.
Do not enter the projection luminous flux using an optical device (such as magnifier or mirror).
Doing so can cause burns or loss of sight.
 fStrong light is emitted from the projector

’s lens. Do not look at or place your hands directly into this light.
 fBe especially careful not to let young children look into the lens. In addition, turn of
f the power and...
