Panasonic Projector PT-RZ970 User Manual
Here you can view all the pages of manual Panasonic Projector PT-RZ970 User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

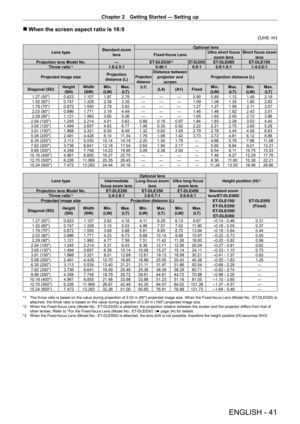

Page 41
Chapter 2 Getting Started — Setting up ENGLISH - 41 rWhen the screen aspect ratio is 16:9 (Unit: m) Lens type Standard zoom lens Optional lens Fixed-focus Lens Ultra short focus zoom lens Short focus zoom lens Projection lens Model No. —ET - DLE030 *2ET-DLE055ET-DLE085 ET- DLE150 Throw ratio*11.8-2.5:1 0.40:10.8:1 0.8 - 1.0:1 1.4 - 2.0:1 Projected image size Projection distance (L) Projection distance (L1)Distance between projector and screen Projection distance (L) Diagonal (SD) Height (SH)...

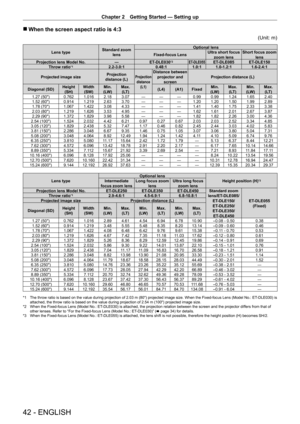

Page 42
Chapter 2 Getting Started — Setting up 42 - ENGLISH rWhen the screen aspect ratio is 4:3 (Unit: m) Lens type Standard zoom lens Optional lens Fixed-focus Lens Ultra short focus zoom lens Short focus zoom lens Projection lens Model No. —ET - DLE030 *2ET-DLE055ET-DLE085 ET- DLE150 Throw ratio*12.2-3.0:1 0.48:11.0:1 1.0 - 1.2:1 1.6 - 2.4:1 Projected image size Projection distance (L) Projection distance (L1)Distance between projector and screen Projection distance (L) Diagonal (SD) Height (SH)...

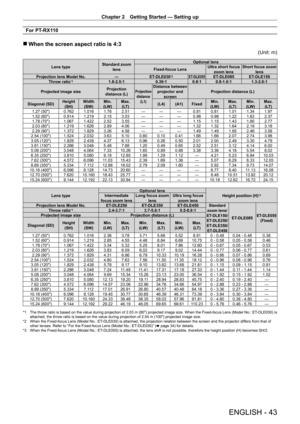

Page 43
Chapter 2 Getting Started — Setting up ENGLISH - 43 For PT-RX110 rWhen the screen aspect ratio is 4:3 (Unit: m) Lens type Standard zoom lens Optional lens Fixed-focus Lens Ultra short focus zoom lens Short focus zoom lens Projection lens Model No. —ET - DLE030 *2ET-DLE055ET-DLE085 ET- DLE150 Throw ratio*11.8-2.5:1 0.39:10.8:1 0.8 - 1.0:1 1.3 - 2.0:1 Projected image size Projection distance (L) Projection distance (L1)Distance between projector and screen Projection distance (L) Diagonal (SD)...

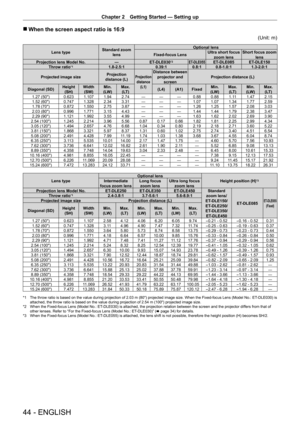

Page 44
Chapter 2 Getting Started — Setting up 44 - ENGLISH rWhen the screen aspect ratio is 16:9 (Unit: m) Lens type Standard zoom lens Optional lens Fixed-focus Lens Ultra short focus zoom lens Short focus zoom lens Projection lens Model No. —ET - DLE030 *2ET-DLE055ET-DLE085 ET- DLE150 Throw ratio*11.8-2.5:1 0.39:10.8:1 0.8 - 1.0:1 1.3 - 2.0:1 Projected image size Projection distance (L) Projection distance (L1)Distance between projector and screen Projection distance (L) Diagonal (SD) Height (SH)...

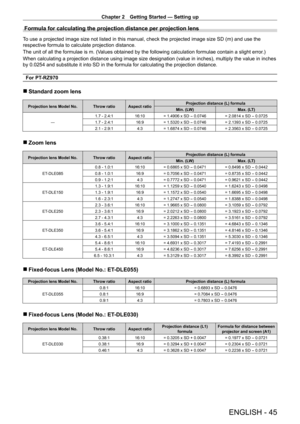

Page 45
Chapter 2 Getting Started — Setting up ENGLISH - 45 Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) When calculating a projection distance using image size designation (value in inches), multiply the value in...

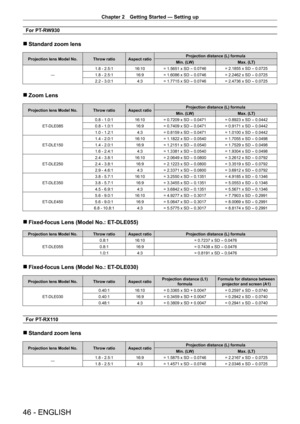

Page 46
Chapter 2 Getting Started — Setting up 46 - ENGLISH For PT-RW930 rStandard zoom lens Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula Min. (LW) Max. (LT) ― 1.8 - 2.5:1 16:10 = 1.5651 x SD - 0.0746 = 2.1855 x SD - 0.0725 1.8 - 2.5:1 16:9 = 1.6086 x SD - 0.0746 = 2.2462 x SD - 0.0725 2.2 - 3.0:1 4:3= 1.7715 x SD - 0.0746 = 2.4736 x SD - 0.0725 rZoom Lens Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula Min. (LW) Max. (LT) ET - DLE085...

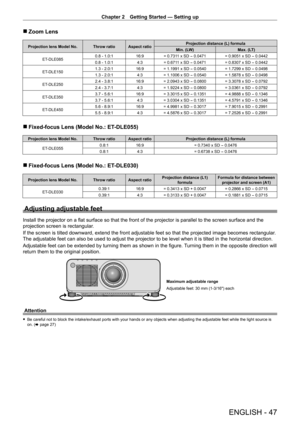

Page 47
Chapter 2 Getting Started — Setting up ENGLISH - 47 rZoom Lens Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula Min. (LW) Max. (LT) ET - DLE085 0.8 - 1.0:1 16:9 = 0.7311 x SD - 0.0471 = 0.9051 x SD - 0.0442 0.8 - 1.0:1 4:3= 0.6711 x SD - 0.0471 = 0.8307 x SD - 0.0442 ET - DLE150 1.3 - 2.0:1 16:9 = 1.1991 x SD - 0.0540 = 1.7299 x SD - 0.0498 1.3 - 2.0:1 4:3= 1.1006 x SD - 0.0540 = 1.5878 x SD - 0.0498 ET - DLE250 2.4 - 3.8:1 16:9 = 2.0943 x SD - 0.0800 = 3.3078 x...

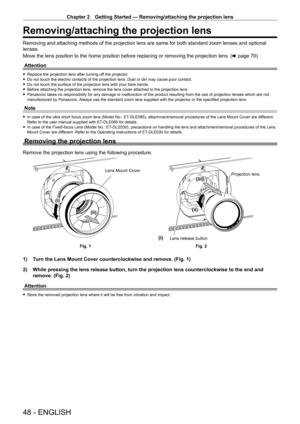

Page 48
Chapter 2 Getting Started — Removing/attaching the projection lens 48 - ENGLISH Removing/attaching the projection lens Removing and attaching methods of the projection lens are same for both standard zoom lenses and optional lenses. Move the lens position to the home position before replacing or removing the projection lens. (x page 70) Attention f Replace the projection lens after turning of f the projector. fDo not touch the electric contacts of the projection lens. Dust or dirt may cause poor...

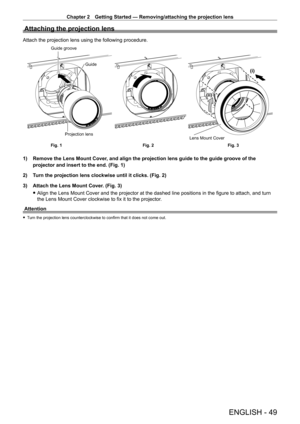

Page 49
Chapter 2 Getting Started — Removing/attaching the projection lens ENGLISH - 49 Attaching the projection lens Attach the projection lens using the following procedure. (ii)(i) Guide groove Guide Projection lens Fig. 1 Fig. 2Fig. 3 Lens Mount Cover 1) Remove the Lens Mount Cover , and align the projection lens guide to the guide groove of the projector and insert to the end. (Fig. 1) 2) T urn the projection lens clockwise until it clicks. (Fig. 2) 3) Attach the Lens Mount Cover . (Fig. 3) fAlign...

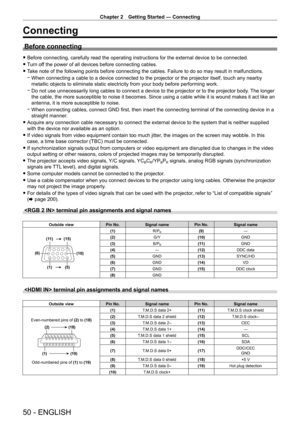

Page 50
Chapter 2 Getting Started — Connecting 50 - ENGLISH Connecting Before connecting fBefore connecting, carefully read the operating instructions for the external device to be connected. fT urn off the power of all devices before connecting cables. fT ake note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static...
