Panasonic Projector PT-RZ970 User Manual

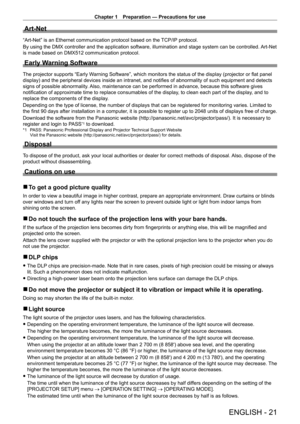

Chapter 1 Preparation — Precautions for use
ENGLISH - 21
Art-Net
“Art-Net” is an Ethernet communication protocol based on the TCP/IP protocol.
By using the DMX controller and the application software, illumination and stage system can be controlled. Art-Net
is made based on DMX512 communication protocol.
Early Warning Software
The projector supports “Early Warning Software”, which monitors the status of the display (projector or flat panel
display) and the peripheral devices inside an intranet, and...

Chapter 1 Preparation — Precautions for use

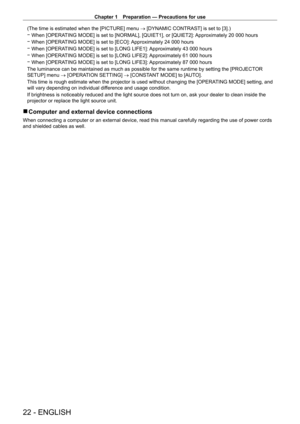

22 - ENGLISH
(The time is estimated when the [PICTURE] menu → [DYNAMIC CONTRAST] is set to [3].)
 gWhen [OPERA

TING MODE] is set to [NORMAL], [QUIET1], or [QUIET2]: Approximately 20   000 hours
 gWhen [OPERA

TING MODE] is set to [ECO]: Approximately 24   000 hours
 gWhen [OPERA

TING MODE] is set to [LONG LIFE1]: Approximately 43   000 hours
 gWhen [OPERA

TING MODE] is set to [LONG LIFE2]: Approximately 61   000 hours
 gWhen [OPERA

TING MODE] is set to...

Chapter 1 Preparation — Precautions for use
ENGLISH - 23
Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in <    > show the
number of accessories.
Wireless/wired remote control unit
(N2QAYA000060)
Power cord
(TXFSX03VBDZ)
(TXFSX02VBDZ)
(TXFSX03VARZ)
(TXFSX02UTRZ)
Lens Mount Cover
(Black model: 1GE1RZ970BU)
(White model: 1GE1RZ970WU)
(The same color as the outer case will be supplied.)
Lens cover
(TKKL5244
- 1)
(Only models with lens)
CD-ROM...

Chapter 1 Preparation — Precautions for use

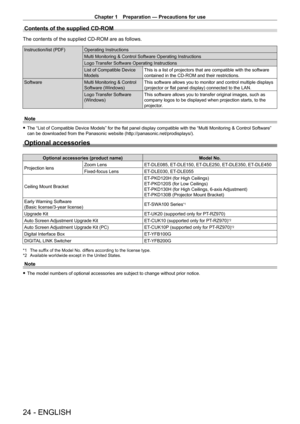

24 - ENGLISH
Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
Instruction/list (PDF)Operating Instructions
Multi Monitoring & Control Software Operating Instructions
Logo Transfer Software Operating Instructions
List of Compatible Device
ModelsThis is a list of projectors that are compatible with the software
contained in the CD-ROM and their restrictions.
Software Multi Monitoring & Control
Software (Windows)This software...

Chapter 1 Preparation — About your projector

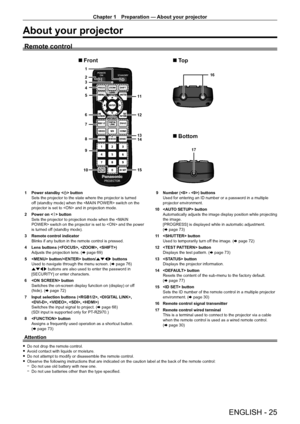

ENGLISH - 25
About your projector
Remote control
1
3 2
4
5
7 6
8
9
10 15 12 11
13
14 16
17
Front To p
Bottom
1 Power standby  button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
2

Power on < b

> button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
3

Remote control...

Chapter 1 Preparation — About your projector

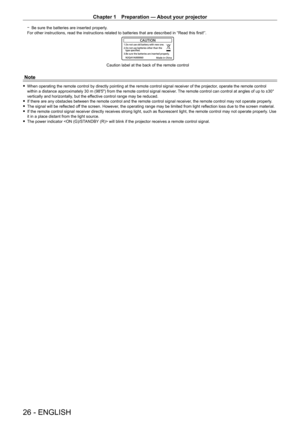

26 - ENGLISH
 gBe sure the batteries are inserted properly .
For other instructions, read the instructions related to batteries that are described in “Read this first!”.
Caution label at the back of the remote control
Note
 f When operating the remote control by directly pointing at the remote control signal receiver of the projector , operate the remote control
within a distance approximately 30   m (98'5") from the remote control signal receiver....

Chapter 1 Preparation — About your projector

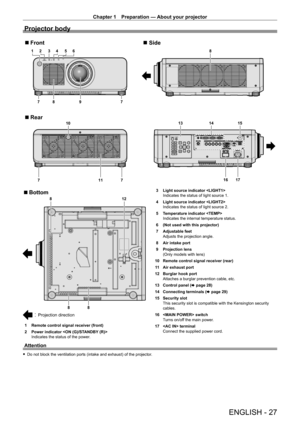

ENGLISH - 27
Projector body
1 2 3 4 5 67 7
10
88
11
9
16 17
14
13 15
77
Front Side
Rear
8
88
12
Projection direction
Bottom
1 Remote control signal receiver (front)
2
Power indicator
Indicates the status of the power. 3

Light source indicator
Indicates the status of light source 1.
4

Light source indicator
Indicates the status of light source 2.
5

T
 emperature indicator
Indicates the internal temperature status.
6
(Not used with this...

Chapter 1 Preparation — About your projector

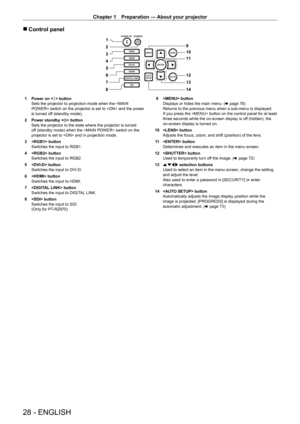

28 - ENGLISH
 rControl panel
9
10
11
12
13
14
2
4 3 1
5
6
7
8
1 Power on <
b > button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
2

Power standby <
 v> button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
3

 button
Switches the input to RGB1.
4


 button
Switches the...

Chapter 1 Preparation — About your projector

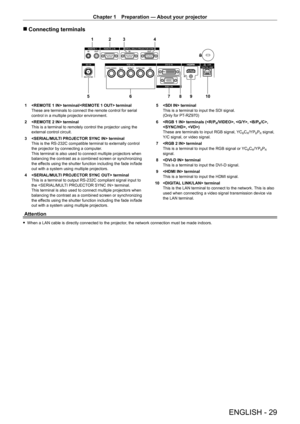

ENGLISH - 29
 rConnecting terminals
1 2 3 4
5 67 8 9 10
1  terminal/ terminal
These are terminals to connect the remote control for serial
control in a multiple projector environment.
2

 terminal
This is a terminal to remotely control the projector using the
external control circuit.
3


 terminal
This is the RS
- 232C compatible terminal to externally control
the projector by connecting a computer.
This terminal is also used to connect multiple...

Chapter 1 Preparation — Preparing the remote control

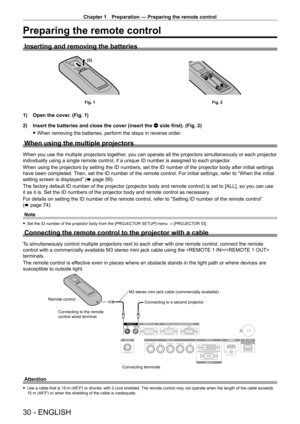

30 - ENGLISH
Preparing the remote control
Inserting and removing the batteries
(ii)(i)
Fig. 1Fig. 2
1) Open the cover. (Fig. 1)
2)
Insert the batteries and close the cover (insert the
 m side first). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order

.
When using the multiple projectors
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector
individually using a...
