12 - ENGLISH
Important
Information

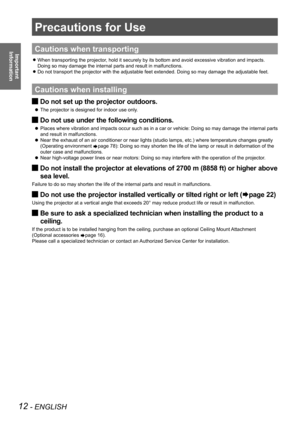

Precautions for Use
Cautions when transporting
When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impac\
ts.
z
Doing so may damage the internal parts and result in malfunctions.
Do not transport the projector with the adjustable feet extended. Doing \
so may damage the adjustable feet.

z
Cautions when installing
Do not set up the projector outdoors.
J
The projector is designed for indoor use only.

z
Do not use...

Precautions for Use
ENGLISH - 13
Important
Information

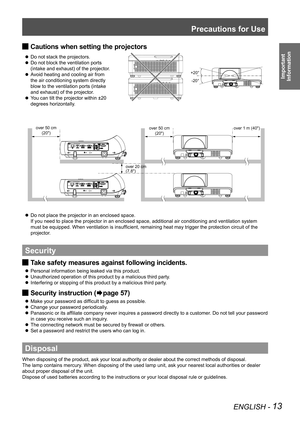

Cautions when setting the projectors
J
Do not stack the projectors.

z
Do not block the ventilation ports

z
(intake and exhaust) of the projector.
Avoid heating and cooling air from

z
the air conditioning system directly
blow to the ventilation ports (intake
and exhaust) of the projector.
You can tilt the projector within ±20

z
degrees horizontally.
Do not place the projector in an enclosed space.

z
If you need to place...

Precautions for Use
14 - ENGLISH
Important

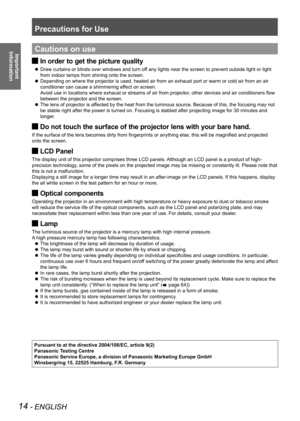

InformationCautions on use
In order to get the picture quality
J
Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light

z
from indoor lamps from shining onto the screen.
Depending on where the projector is used, heated air from an exhaust por\
t or warm or cold air from an air

z
conditioner can cause a shimmering effect on screen.
Avoid use in locations where exhaust or streams of air from...

Precautions for Use
ENGLISH - 15
Important
Information

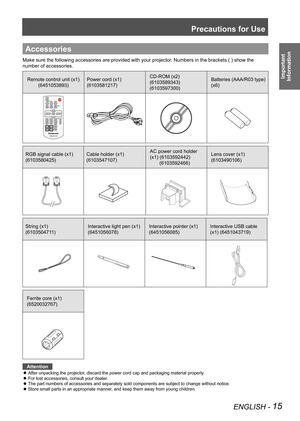

Accessories
Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the
number of accessories.
Remote control unit (x1)
(6451053893) Power cord (x1)
(6103581217) CD-ROM (x2)
(6103589343)
(6103597300)Batteries (AAA/R03 type)
(x6)
RGB signal cable (x1)
(6103580425)
Cable holder (x1)
(6103547107) AC power cord holder
(x1) (6103592442)
       (6103592466)Lens cover (x1)
(6103490106)
String (x1)...

Precautions for Use
16 - ENGLISH
Important
Information

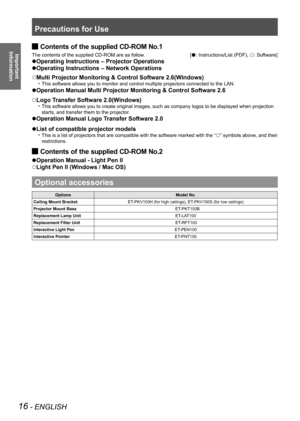

Contents of the supplied
JCD-ROM No.1
The contents of the supplied CD-ROM are as follow.
[
 : Instructions/List (PDF),
: Software]

Operating Instructions – Projector Operations
Operating Instructions – Network Operations

Multi Projector Monitoring & Control Software 2.6(Windows)
This software allows you to monitor and control multiple projectors conn\
ected to the LAN.•

Operation Manual Multi Projector Monitoring & Control Software...

ENGLISH - 17
Preparation
About Your Projector

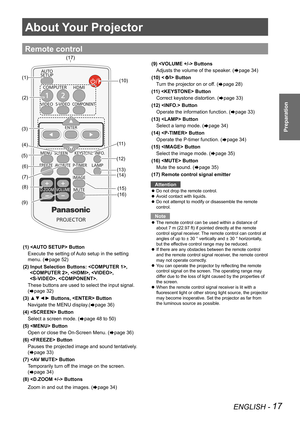

Remote control
(1)  ButtonExecute the setting of Auto setup in the setting
menu. (
Æpage 52)
(2) Input Selection Buttons: ,
, , ,
, .
These buttons are used to select the input signal.
(
Æpage 32)
(3) ▲▼◄► Buttons,  Button Navigate the MENU display.(
Æpage 36)
(4)  Button Select a screen mode. (
Æpage 48 to 50)
(5)  Button Open or close the On-Screen Menu. (
Æpage 36)
(6)  Button Pauses the projected image and sound tentatively.
(
Æpage 33)
(7)...

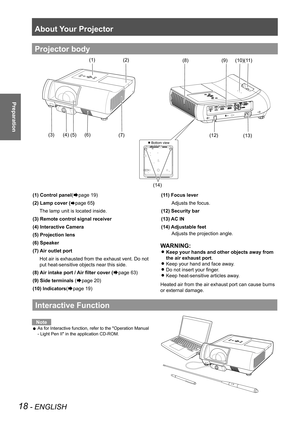

About Your Projector
18 - ENGLISH
Preparation
(1) Control panel(Æpage 19)
(2) Lamp cover (
Æpage 65 )
  The lamp unit is located inside.
(3) Remote control signal receiver
(4) Interactive Camera
(5) Projection lens
(6) Speaker
(7) Air outlet port
   Hot air is exhausted from the exhaust vent. Do not
put heat-sensitive objects near this side.
(8) Air intake port / Air filter cover (
Æpage 63)
(9) Side terminals  (
Æpage 20)
(10) Indicators (
Æpage 19) (11) Focus lever
Adjusts the focus.
(12) Security...

About Your Projector
ENGLISH - 19
Preparation

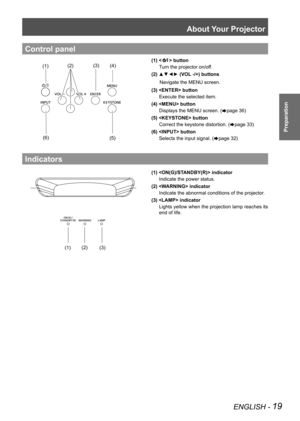

Control panel
(1)  button
Turn the projector on/off.
(2) ▲▼◄► (VOL -/+) buttons
      Navigate the MENU screen.
(3)  button Execute the selected item.
(4)  button Displays the MENU screen. (
Æpage 36)
(5)  button Correct the keystone distortion. (
Æpage 33)
(6)  button Selects the input signal. (
Æpage 32)
Indicators
(1)  indicatorIndicate the power status.
(2)  indicator Indicate the abnormal conditions of the projector.
(3)  indicator Lights yellow when...

About Your Projector
20 - ENGLISH
Preparation

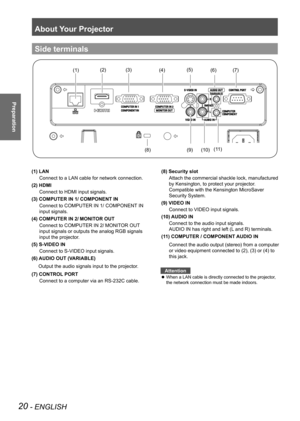

Side terminals
(1) LANConnect to a LAN cable for network connection.
(2) HDMI Connect to HDMI input signals.
(3) COMPUTER IN 1/ COMPONENT IN Connect to COMPUTER IN 1/ COMPONENT IN
input signals.
(4) COMPUTER IN 2/
 MONITOR OUT
Connect to COMPUTER IN 2/
 MONITOR OUT
input signals or outputs the analog RGB signals
input the projector.
(5) S-VIDEO IN Connect to S-VIDEO input signals.
(6) AUDIO OUT (VARIABLE)
      Output the audio signals input to the...
