Panasonic Projector PT-TW231RU User Manual
Here you can view all the pages of manual Panasonic Projector PT-TW231RU User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

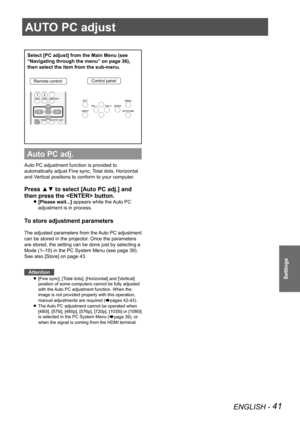

Page 41
![Page 41
AUTO PC adjust
ENGLISH - 41
Settings
AUTO PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Auto PC adj.
Auto PC adjustment function is provided to
automatically adjust Fine sync, Total dots, Horizontal
and Vertical positions to conform to your computer.
Press ▲▼ to select [Auto PC adj.] and
then press the button.
[Please wait...]
z appears while the Auto PC
adjustment is in...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-40.png "Page 41
AUTO PC adjust
ENGLISH - 41
Settings
AUTO PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Auto PC adj.
Auto PC adjustment function is provided to
automatically adjust Fine sync, Total dots, Horizontal
and Vertical positions to conform to your computer.
Press ▲▼ to select [Auto PC adj.] and
then press the button.
[Please wait...]
z appears while the Auto PC
adjustment is in...")
AUTO PC adjust ENGLISH - 41 Settings AUTO PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 36), then select the item from the sub-menu. Remote controlControl panel Auto PC adj. Auto PC adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Press ▲▼ to select [Auto PC adj.] and then press the button. [Please wait...] z appears while the Auto PC adjustment is in...

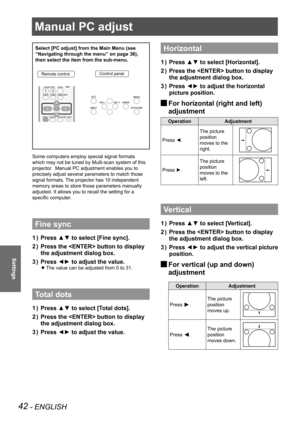

Page 42
![Page 42
Manual PC adjust
42 - ENGLISH
Settings
Manual PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Some computers employ special signal formats
which may not be tuned by Multi-scan system of this
projector. Manual PC adjustment enables you to
precisely adjust several parameters to match those
signal formats. The projector has 10 independent
memory areas to store those parameters manually...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-41.png "Page 42
Manual PC adjust
42 - ENGLISH
Settings
Manual PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Some computers employ special signal formats
which may not be tuned by Multi-scan system of this
projector. Manual PC adjustment enables you to
precisely adjust several parameters to match those
signal formats. The projector has 10 independent
memory areas to store those parameters manually...")
Manual PC adjust 42 - ENGLISH Settings Manual PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 36), then select the item from the sub-menu. Remote controlControl panel Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually...

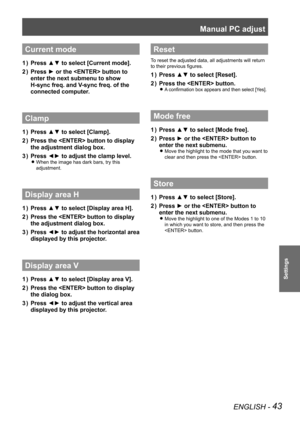

Page 43
![Page 43
Manual PC adjust
ENGLISH - 43
Settings
Current mode
Press ▲▼ to select [Current mode].
1 )
Press ► or the button to
2 )
enter the next submenu to show
H-sync freq. and V-sync freq. of the
connected computer.
Clamp
Press ▲▼ to select [Clamp].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the clamp level.
3 )
When the image has dark bars, try this
z
adjustment.
Display area H
Press ▲▼ to select [Display area H].
1 )
Press the button to display...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-42.png "Page 43
Manual PC adjust
ENGLISH - 43
Settings
Current mode
Press ▲▼ to select [Current mode].
1 )
Press ► or the button to
2 )
enter the next submenu to show
H-sync freq. and V-sync freq. of the
connected computer.
Clamp
Press ▲▼ to select [Clamp].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the clamp level.
3 )
When the image has dark bars, try this
z
adjustment.
Display area H
Press ▲▼ to select [Display area H].
1 )
Press the button to display...")
Manual PC adjust ENGLISH - 43 Settings Current mode Press ▲▼ to select [Current mode]. 1 ) Press ► or the button to 2 ) enter the next submenu to show H-sync freq. and V-sync freq. of the connected computer. Clamp Press ▲▼ to select [Clamp]. 1 ) Press the button to display 2 ) the adjustment dialog box . Press ◄► to adjust the clamp level. 3 ) When the image has dark bars, try this z adjustment. Display area H Press ▲▼ to select [Display area H]. 1 ) Press the button to display...

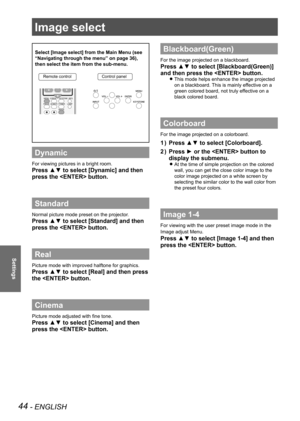

Page 44
![Page 44
44 - ENGLISH
Settings
Image select
Select [Image select] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Dynamic
For viewing pictures in a bright room.
Press ▲▼ to select [Dynamic] and then
press the button.
Standard
Normal picture mode preset on the projector.
Press ▲▼ to select [Standard] and then
press the button.
Real
Picture mode with improved halftone for graphics.
Press ▲▼ to select [Real] and then press
the button.
Cinema...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-43.png "Page 44
44 - ENGLISH
Settings
Image select
Select [Image select] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Dynamic
For viewing pictures in a bright room.
Press ▲▼ to select [Dynamic] and then
press the button.
Standard
Normal picture mode preset on the projector.
Press ▲▼ to select [Standard] and then
press the button.
Real
Picture mode with improved halftone for graphics.
Press ▲▼ to select [Real] and then press
the button.
Cinema...")
44 - ENGLISH Settings Image select Select [Image select] from the Main Menu (see “Navigating through the menu” on page 36), then select the item from the sub-menu. Dynamic For viewing pictures in a bright room. Press ▲▼ to select [Dynamic] and then press the button. Standard Normal picture mode preset on the projector. Press ▲▼ to select [Standard] and then press the button. Real Picture mode with improved halftone for graphics. Press ▲▼ to select [Real] and then press the button. Cinema...

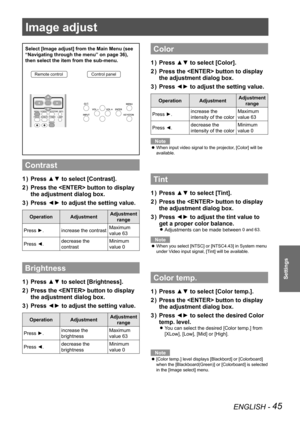

Page 45
![Page 45
Image adjust
ENGLISH - 45
Settings
Select [Image adjust] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Contrast
Press ▲▼ to select [Contrast].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the setting value.
3 )
Operation AdjustmentAdjustment
range
Press ►. increase the contrast Maximum
value 63
Press ◄. decrease the
contrast Minimum
value 0
Brightness
Press ▲▼ to...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-44.png "Page 45
Image adjust
ENGLISH - 45
Settings
Select [Image adjust] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Contrast
Press ▲▼ to select [Contrast].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the setting value.
3 )
Operation AdjustmentAdjustment
range
Press ►. increase the contrast Maximum
value 63
Press ◄. decrease the
contrast Minimum
value 0
Brightness
Press ▲▼ to...")
Image adjust ENGLISH - 45 Settings Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 36), then select the item from the sub-menu. Remote controlControl panel Contrast Press ▲▼ to select [Contrast]. 1 ) Press the button to display 2 ) the adjustment dialog box . Press ◄► to adjust the setting value. 3 ) Operation AdjustmentAdjustment range Press ►. increase the contrast Maximum value 63 Press ◄. decrease the contrast Minimum value 0 Brightness Press ▲▼ to...

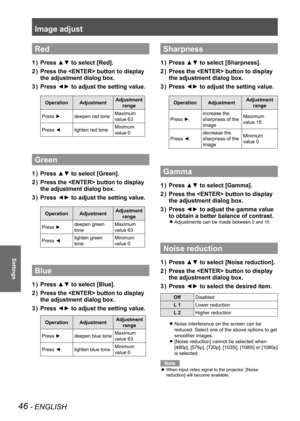

Page 46
![Page 46
Image adjust
46 - ENGLISH
Settings
Red
Press ▲▼ to select [Red].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the setting value.
3 )
Operation Adjustment Adjustment
range
Press ►. deepen red tone Maximum
value 63
Press ◄. lighten red tone Minimum
value 0
Green
Press ▲▼ to select [Green].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the setting value.
3 )
Operation Adjustment Adjustment
range
Press ►. deepen...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-45.png "Page 46
Image adjust
46 - ENGLISH
Settings
Red
Press ▲▼ to select [Red].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the setting value.
3 )
Operation Adjustment Adjustment
range
Press ►. deepen red tone Maximum
value 63
Press ◄. lighten red tone Minimum
value 0
Green
Press ▲▼ to select [Green].
1 )
Press the button to display
2 )
the adjustment dialog box .
Press ◄► to adjust the setting value.
3 )
Operation Adjustment Adjustment
range
Press ►. deepen...")
Image adjust 46 - ENGLISH Settings Red Press ▲▼ to select [Red]. 1 ) Press the button to display 2 ) the adjustment dialog box . Press ◄► to adjust the setting value. 3 ) Operation Adjustment Adjustment range Press ►. deepen red tone Maximum value 63 Press ◄. lighten red tone Minimum value 0 Green Press ▲▼ to select [Green]. 1 ) Press the button to display 2 ) the adjustment dialog box . Press ◄► to adjust the setting value. 3 ) Operation Adjustment Adjustment range Press ►. deepen...

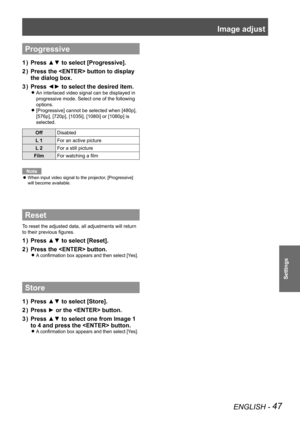

Page 47
![Page 47
Image adjust
ENGLISH - 47
Settings
Progressive
Press ▲▼ to select [Progressive].
1 )
Press the button to display
2 )
the dialog box.
Press ◄► to select the desired item.
3 )
An interlaced video signal can be displayed in
z
progressive mode. Select one of the following
options.
[Progressive] cannot be selected when [480p],
z
[576p], [720p], [1035i], [1080i] or [1080p] is
selected.
Off Disabled
L 1 For an active picture
L 2 For a still picture
Film For watching a film
Note
When input video...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-46.png "Page 47
Image adjust
ENGLISH - 47
Settings
Progressive
Press ▲▼ to select [Progressive].
1 )
Press the button to display
2 )
the dialog box.
Press ◄► to select the desired item.
3 )
An interlaced video signal can be displayed in
z
progressive mode. Select one of the following
options.
[Progressive] cannot be selected when [480p],
z
[576p], [720p], [1035i], [1080i] or [1080p] is
selected.
Off Disabled
L 1 For an active picture
L 2 For a still picture
Film For watching a film
Note
When input video...")
Image adjust ENGLISH - 47 Settings Progressive Press ▲▼ to select [Progressive]. 1 ) Press the button to display 2 ) the dialog box. Press ◄► to select the desired item. 3 ) An interlaced video signal can be displayed in z progressive mode. Select one of the following options. [Progressive] cannot be selected when [480p], z [576p], [720p], [1035i], [1080i] or [1080p] is selected. Off Disabled L 1 For an active picture L 2 For a still picture Film For watching a film Note When input video...

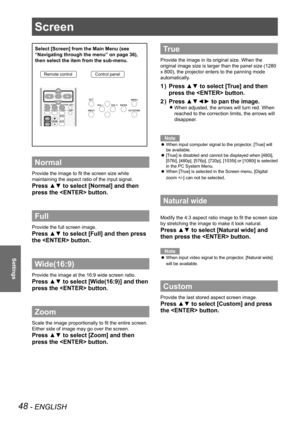

Page 48
![Page 48
Screen
48 - ENGLISH
Settings
Screen
Select [Screen] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Normal
Provide the image to fit the screen size while
maintaining the aspect ratio of the input signal.
Press ▲▼ to select [Normal] and then
press the button.
Full
Provide the full screen image.
Press ▲▼ to select [Full] and then press
the button.
Wide(16:9)
Provide the image at the 16:9 wide screen ratio....](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-47.png "Page 48
Screen
48 - ENGLISH
Settings
Screen
Select [Screen] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Normal
Provide the image to fit the screen size while
maintaining the aspect ratio of the input signal.
Press ▲▼ to select [Normal] and then
press the button.
Full
Provide the full screen image.
Press ▲▼ to select [Full] and then press
the button.
Wide(16:9)
Provide the image at the 16:9 wide screen ratio....")
Screen 48 - ENGLISH Settings Screen Select [Screen] from the Main Menu (see “Navigating through the menu” on page 36), then select the item from the sub-menu. Remote controlControl panel Normal Provide the image to fit the screen size while maintaining the aspect ratio of the input signal. Press ▲▼ to select [Normal] and then press the button. Full Provide the full screen image. Press ▲▼ to select [Full] and then press the button. Wide(16:9) Provide the image at the 16:9 wide screen ratio....

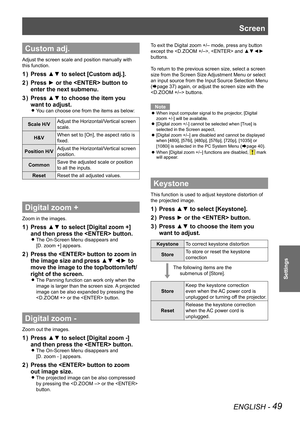

Page 49
![Page 49
ENGLISH - 49
Settings
Custom adj.
Adjust the screen scale and position manually with
this function.
Press ▲▼ to select [Custom adj.].
1 )
Press ► or the button to
2 )
enter the next submenu.
Press ▲▼ to choose the item you
3 )
want to adjust.
You can choose one from the items as below:
z
Scale H/V Adjust the Horizontal/Vertical screen
scale.
H&V When set to [On], the aspect ratio is
fixed.
Position H/V Adjust the Horizontal/Vertical screen
position.
Common Save the adjusted scale or...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-48.png "Page 49
ENGLISH - 49
Settings
Custom adj.
Adjust the screen scale and position manually with
this function.
Press ▲▼ to select [Custom adj.].
1 )
Press ► or the button to
2 )
enter the next submenu.
Press ▲▼ to choose the item you
3 )
want to adjust.
You can choose one from the items as below:
z
Scale H/V Adjust the Horizontal/Vertical screen
scale.
H&V When set to [On], the aspect ratio is
fixed.
Position H/V Adjust the Horizontal/Vertical screen
position.
Common Save the adjusted scale or...")
ENGLISH - 49 Settings Custom adj. Adjust the screen scale and position manually with this function. Press ▲▼ to select [Custom adj.]. 1 ) Press ► or the button to 2 ) enter the next submenu. Press ▲▼ to choose the item you 3 ) want to adjust. You can choose one from the items as below: z Scale H/V Adjust the Horizontal/Vertical screen scale. H&V When set to [On], the aspect ratio is fixed. Position H/V Adjust the Horizontal/Vertical screen position. Common Save the adjusted scale or...

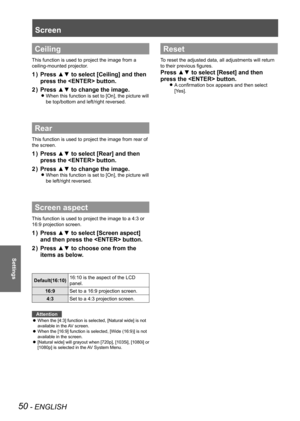

Page 50
![Page 50
50 - ENGLISH
Settings
Ceiling
This function is used to project the image from a
ceiling-mounted projector.
Press ▲▼ to select [Ceiling] and then
1 )
press the button.
Press ▲▼ to change the image.
2 )
When this function is set to [On], the picture will
z
be top/bottom and left/right reversed.
Rear
This function is used to project the image from rear of
the screen.
Press ▲▼ to select [Rear] and then
1 )
press the button.
Press ▲▼ to change the image.
2 )
When this function is set to [On],...](http://img.usermanuals.tech/thumb/58/99266/w300_projector_manual_6970_d-49.png "Page 50
50 - ENGLISH
Settings
Ceiling
This function is used to project the image from a
ceiling-mounted projector.
Press ▲▼ to select [Ceiling] and then
1 )
press the button.
Press ▲▼ to change the image.
2 )
When this function is set to [On], the picture will
z
be top/bottom and left/right reversed.
Rear
This function is used to project the image from rear of
the screen.
Press ▲▼ to select [Rear] and then
1 )
press the button.
Press ▲▼ to change the image.
2 )
When this function is set to [On],...")
50 - ENGLISH Settings Ceiling This function is used to project the image from a ceiling-mounted projector. Press ▲▼ to select [Ceiling] and then 1 ) press the button. Press ▲▼ to change the image. 2 ) When this function is set to [On], the picture will z be top/bottom and left/right reversed. Rear This function is used to project the image from rear of the screen. Press ▲▼ to select [Rear] and then 1 ) press the button. Press ▲▼ to change the image. 2 ) When this function is set to [On],...
