Panasonic Projector PT-TW231RU User Manual

ENGLISH - 31
Basic Operation

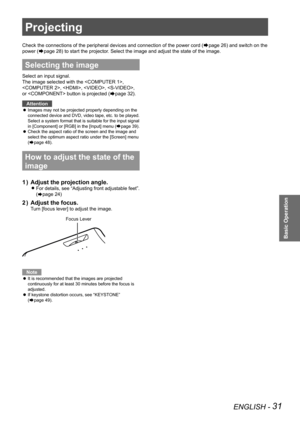

Projecting
Check the connections of the peripheral devices and connection of the po\
wer cord (Æpage 26) and switch on the
power (
Æpage 28) to start the projector. Select the image and adjust the state of the image.
Selecting the image
Select an input signal.
The image selected with the ,
, , , ,
or  button is projected (
Æpage 32).
Attention
Images may not be projected properly depending on the

z
connected device and DVD, video tape, etc. to be played.
Select a...

32 - ENGLISH
Basic Operation

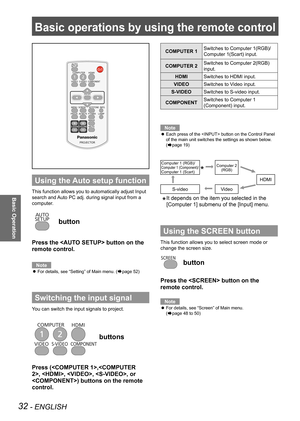

Basic operations by using the remote control
Using the Auto setup function
This function allows you to automatically adjust Input
search and Auto PC adj. during signal input from a
computer.
 button
Press the  button on the
remote control.
Note
For details, see “Setting” of Main menu. (

zÆpage 52)
Switching the input signal
You can switch the input signals to project.
 buttons
Press (,, , , , or
) buttons on the remote
control.
COMPUTER 1 Switches to Computer 1(RGB)/...

Basic operations by using the remote control
ENGLISH - 33
Basic Operation

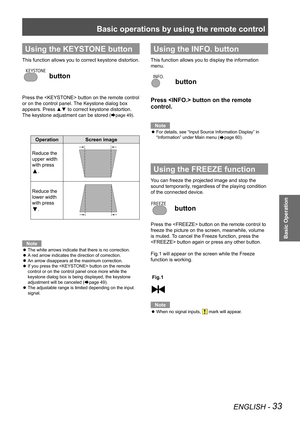

Using the KEYSTONE button
This function allows you to correct keystone distortion.
 button
Press the  button on the remote control
or on the control panel. The Keystone dialog box
appears. Press ▲▼ to correct keystone distortion.
The keystone adjustment can be stored
(Æpage 49).
OperationScreen image
Reduce the
upper width
with press
▲.
Reduce the
lower width
with press
▼.
Note
The white arrows indicate that there is no...

Basic operations by using the remote control
34 - ENGLISH
Basic Operation

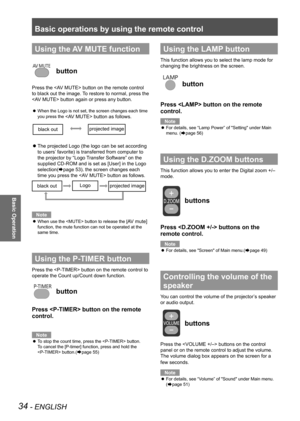

Using the AV MUTE function
 button
Press the  button on the remote control
to black out the image. To restore to normal, press the
 button again or press any button.
When the Logo is not set, the screen changes each time

z
you press the
 button as follows.
The projected Logo (the logo can be set according

z
to users’ favorite) is transferred from computer to
the projector by “Logo Transfer Software” on the
supplied...

Basic operations by using the remote control
ENGLISH - 35
Basic Operation

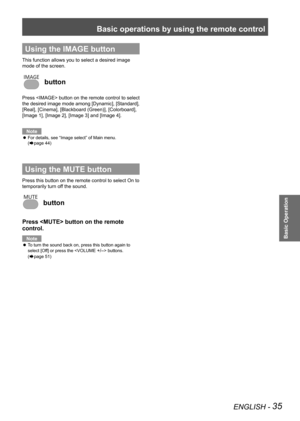

Using the IMAGE button
This function allows you to select a desired image
mode of the screen.
 button
Press  button on the remote control to select
the desired image mode among [Dynamic], [Standard],
[Real], [Cinema], [Blackboard (Green)], [Colorboard],
[Image 1], [Image 2], [Image 3] and [Image 4].Note
For details, see “Image select” of Main menu.

z
(
Æpage 44)
Using the MUTE button
Press this button on the remote control...

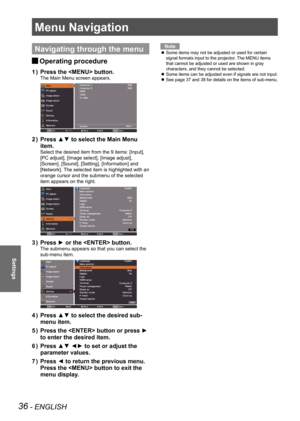

36 - ENGLISH
Settings
Menu Navigation
Navigating through the menu
Operating procedure
J
Press the  button.
1  )
The Main Menu screen appears.
Press ▲▼ to select the Main Menu
2  )
item.
Select the desired item from the 9 items: [Input],
[PC adjust], [Image select], [Image adjust],
[Screen], [Sound], [Setting], [Information] and
[Network]. The selected item is highlighted with an
orange cursor and the submenu of the selected
item appears on the right.
Press ► or the  button.
3  )
The submenu...

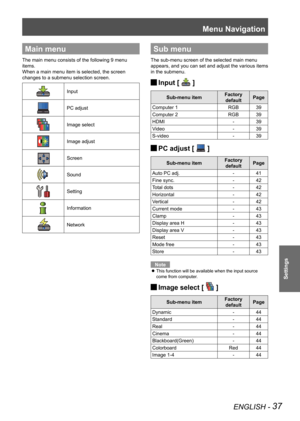

Menu Navigation
ENGLISH - 37
Settings
Main menu
The main menu consists of the following 9 menu
items.
When a main menu item is selected, the screen
changes to a submenu selection screen.
Input
PC adjust
Image select
Image adjust
Screen
Sound
Setting
Information
Network
Sub menu
The sub-menu screen of the selected main menu
appears, and you can set and adjust the various items
in the submenu.

JInput [  ]
Sub-menu item Factory
default Page
Computer 1 RGB39
Computer 2 RGB39
HDMI  -39
Video  -39...

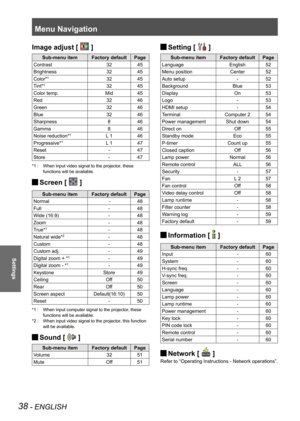

Menu Navigation
38 - ENGLISH
Settings
Image adjust [  ]
Sub-menu itemFactory defaultPage
Contrast 3245
Brightness 3245
Color*
132 45
Tint*
132 45
Color temp. Mid45
Red 3246
Green 3246
Blue 3246
Sharpness 846
Gamma 846
Noise reduction*
1L 1 46
Progressive*
1L 1  47
Reset -47
Store - 47
When input video signal to the projector, these
*1 :
functions will be available.
Screen [
J ]
Sub-menu item
Factory defaultPage
Normal  - 48
Full  - 48
Wide (16:9) - 48
Zoom - 48
True*
1-  48
Natural wide*
2- 48
Custom...

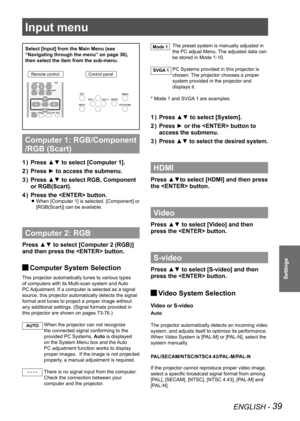

ENGLISH - 39
Settings
Input menu
Select [Input] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Computer 1: RGB/Component
/RGB (Scart)
Press ▲▼ to select [Computer 1].
1  )
Press ► to access the submenu.
2  )
Press ▲▼ to select RGB, Component
3  )
or RGB(Scart).
Press the  button.
4  )
When [Computer 1] is selected, [Component] or
z
[RGB(Scart)] can be available.
Computer 2: RGB
Press ▲▼ to select...

Input menu

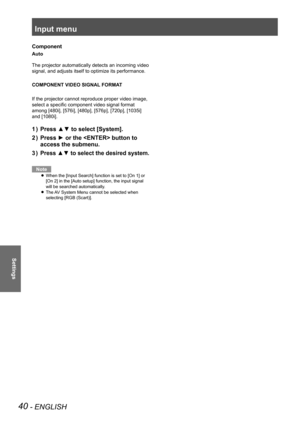

40 - ENGLISH
Settings
Component
Auto
The projector automatically detects an incoming video
signal, and adjusts itself to optimize its performance.
COMPONENT VIDEO SIGNAL FORMAT
If the projector cannot reproduce proper video image,
select a specific component video signal format
among [480i], [576i], [480p], [576p], [720p], [1035i]
and [1080i].
Press ▲▼ to select [System].
1  )
Press ► or the  button to
2  )
access the submenu.
Press ▲▼ to select the desired system.
3  )
Note
When the...
