Panasonic Projector PT-TW231RU User Manual

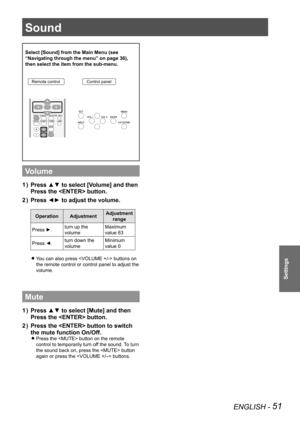

Sound
ENGLISH - 51
Settings
Sound
Select [Sound] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Volume
Press ▲▼ to select [Volume] and then
1  )
Press the  button.
Press ◄► to adjust the volume.
2  )
Operation Adjustment Adjustment
range
Press ►. turn up the
volume Maximum
value 63
Press ◄. turn down the
volume Minimum
value 0
You can also press  buttons on

z
the remote control or control panel to adjust...

Setting

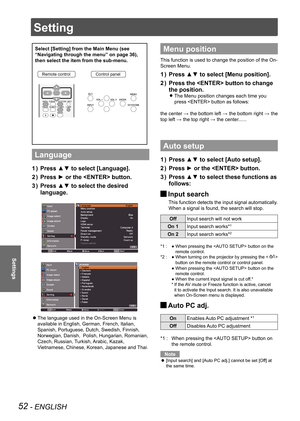

52 - ENGLISH
Settings
Setting
Select [Setting] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Language
Press ▲▼ to select [Language].
1  )
Press ► or the  button.
2  )
Press ▲▼ to select the desired
3  )
language.
The language used in the On-Screen Menu is

z
available in English, German, French, Italian,
Spanish, Portuguese, Dutch, Swedish, Finnish,
Norwegian, Danish,  Polish, Hungarian, Romanian,...

Setting

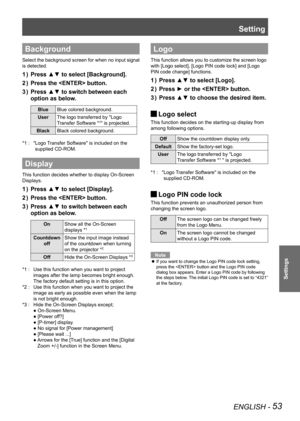

ENGLISH - 53
Settings
Background
Select the background screen for when no input signal
is detected.
Press ▲▼ to select [Background].
1  )
Press the  button.
2  )
Press ▲▼ to switch
3  )
 between each
option as below.
Blue Blue colored background.
User The logo transferred by "Logo
Transfer Software *
1" is projected.
Black Black colored background.
"  Logo Transfer Software" is included on the
*1 :
supplied CD-ROM.
Display
This function decides whether to display On-Screen...

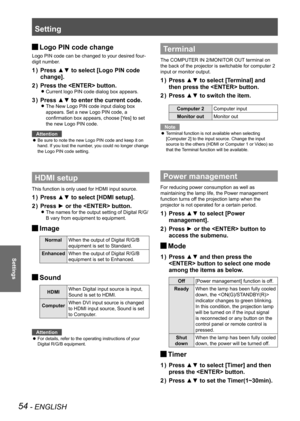

Setting
54 - ENGLISH
Settings
Logo PIN code change
J
Logo PIN code can be changed to your desired four-
digit number.
Press ▲▼ to select [Logo PIN code
1  )
change].
Press the  button.
2  )
Current logo PIN code dialog box appears.
z
Press ▲▼ to enter the current code.
3  )
The New Logo PIN code input dialog box
z
appears. Set a new Logo PIN code, a
confirmation box appears, choose [Yes] to set
the new Logo PIN code.
Attention
Be sure to note the new Logo PIN code and keep it on

z
hand. If...

Setting

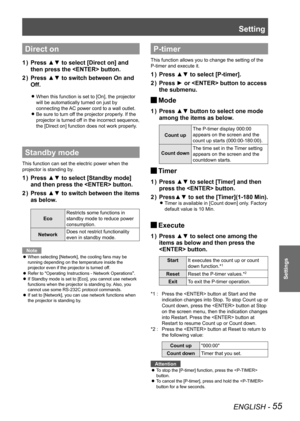

ENGLISH - 55
Settings
Direct on
Press ▲▼ to select [Direct on] and
1  )
then press the  button.
Press ▲▼ to switch between On and
2  )
Off.
When this function is set to [On], the projector
z
will be automatically turned on just by
connecting the AC power cord to a wall outlet.
Be sure to turn off the projector properly. If the

z
projector is turned off in the incorrect sequence,
the [Direct on] function does not work properly.
Standby mode
This function can set the electric power when...

Setting

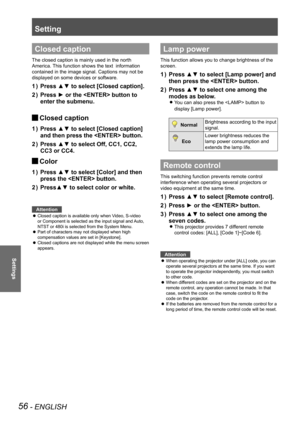

56 - ENGLISH
Settings
Closed caption
The closed caption is mainly used in the north
America. This function shows the text  information
contained in the image signal. Captions may not be
displayed on some devices or software.
Press ▲▼ to select [Closed caption].
1  )
Press ► or the  button to
2  )
enter the submenu.
Closed caption
J
Press ▲▼ to select [Closed caption]
1  )
and then press the  button.
Press ▲▼ to select Off, CC1, CC2,
2  )
CC3 or CC4.
Color
J
Press ▲▼ to select [Color]...

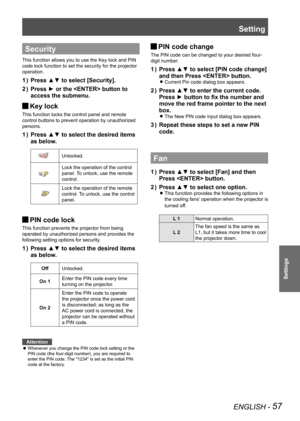

ENGLISH - 57
Settings
Security
This function allows you to use the Key lock and PIN
code lock function to set the security for the projector
operation.
Press ▲▼ to select [Security].
1  )
Press ► or the  button to
2  )
access the submenu.
Key lock
J
This function locks the control panel and remote
control buttons to prevent operation by unauthorized
persons.
Press ▲▼ to select the desired items
1  )
as below.
Unlocked.
Lock the operation of the control
panel. To unlock, use the remote...

Setting

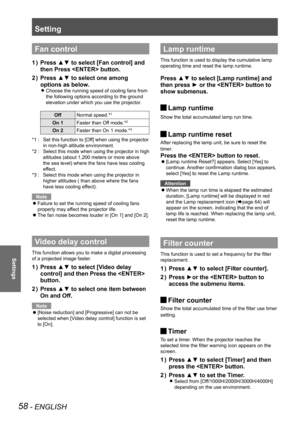

58 - ENGLISH
Settings
Fan control
Press ▲▼ to select [Fan control] and
1  )
then Press  button.
Press ▲▼ to select one among
2  )
options as below.
Choose the running speed of cooling fans from
z
the following options according to the ground
elevation under which you use the projector.
Off Normal speed.*1
On 1 Faster than Off mode.*2
On 2Faster than On 1 mode.*3
Set this function to [Off] when using the projector
*1 :
in non-high altitude environment.
Select this mode when using the...

Setting

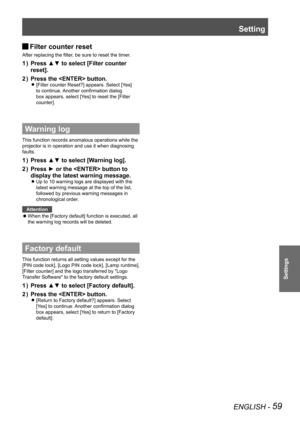

ENGLISH - 59
Settings
Filter counter reset
J
After replacing the filter, be sure to reset the timer.
Press ▲▼ to select [Filter counter
1  )
reset].
Press the  button.
2  )
[Filter counter Reset?] appears. Select [Yes]
z
to continue. Another confirmation dialog
box appears, select [Yes] to reset the [Filter
counter].
Warning log
This function records anomalous operations while the
projector is in operation and use it when diagnosing
faults.
Press ▲▼ to select [Warning log].
1  )
Press...

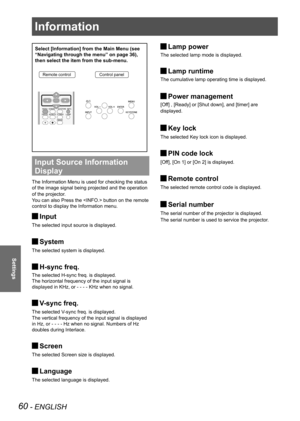

Information
60 - ENGLISH
Settings
Select [Information] from the Main Menu (see
“Navigating through the menu” on page 36),
then select the item from the sub-menu.
Remote controlControl panel
Input Source Information
Display
The Information Menu is used for checking the status
of the image signal being projected and the operation
of the projector.
You can also Press the  button on the remote
control to display the Information menu.
Input
J
The selected input source is displayed.
System
J
The...
