Panasonic Pt D9510u Projector User Manual
Here you can view all the pages of manual Panasonic Pt D9510u Projector User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 22
22 Projection distance measurements for PT-D9610U(screen aspect ratio: 16:9) unit: mm (feet/inches) NOTE: • The projection distance listed in the table may have a variation within ± 5 %. • Keystone (trapezoidal distortion) is compensated to be smaller than the screen size. Projection distance measurements for PT-D9610U (screen aspect ratio: 5:4) unit: mm (feet/inches) ...

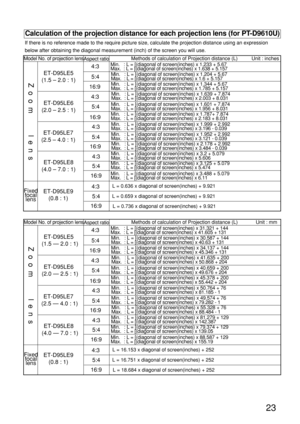

Page 23
23 Calculation of the projection distance for each projection lens (for PT-D9610U) If there is no reference made to the require picture size, calculate the projection distance using an expression below after obtaining the diagonal measurement (inch) of the screen you will use. Model No. of projection lens Aspect ratio 4:3 16:9 16:94:3 4:3 16:9 ET-D95LE5 (1.5 – 2.0 : 1) ET-D95LE6 (2.0 – 2.5 : 1) ET-D95LE7 (2.5 – 4.0 : 1) ET-D95LE9 (0.8 : 1) Z o o m l e n s Fixed focal lens Methods of...

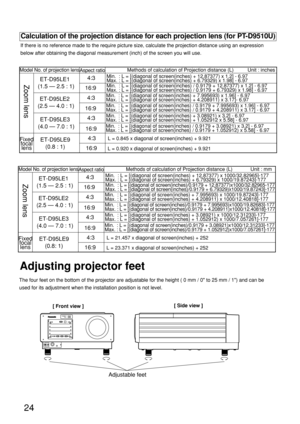

Page 24
24 Adjusting projector feet [ Side view ] [ Front view ] Adjustable feet The four feet on the bottom of the projector are adjustable for the height ( 0 mm / 0 to 25 mm / 1) and can be used for its adjustment when the installation position is not level. Model No. of projection lens Aspect ratio 4:3 16:9 16:9 16:94:3 4:3 4:3 16:9 ET-D95LE1 (1.5 — 2.5 : 1) ET-D95LE2 (2.5 — 4.0 : 1) ET-D95LE3 (4.0 — 7.0 : 1) ET-D95LE9 (0.8: 1)Zoom lens Fixed focal lens Min. : L = [(diagonal of screen(inches) + 12.87377) x...
Page 25
25 Setting the projection method The projection method can be set in accordance with the way the projector has been installed. If the projected picture is upside-down or back-to-front, change the projection method while referring to illustrations A to D below. Set the projection method by displaying on-screen displays using the control buttons on the remote control unit or the projector operating panel. Setting procedure Press the MENU button. ... The MENU screen will be displayed. Press the UP( ) and...
Page 26
26 Adjusting the lens Adjusting the focus Adjustment procedure Press the LENS button. ... The LENS screen will be displayed. Use the control level buttons (+and −) to adjust the focus to the correct setting. • Initial pressing of these buttons will allow fine adjustment. Pressing and holding these buttons will allow the slow mode for the first six seconds and then the fast mode. Press the MENU button. • The on-screen display will disappear and the screen will return to the normal state. Note: After the...
Page 27
27 Adjustment range after lens positioning is as follows: ÞThe numbers in brackets are the dimensions when the ET-D95LE9 lens is being used. Adjustment range after lens position (optical shift) (0.24H) 0.35H(0.24H) 0.35H (0.38V) 0.5V (0.38V) 0.5V (0.24H) 0.35H(0.24H) 0.35H (0.38V) 0.50V 0.31V (0.38V) (0.24H) 0.29H 0.31H 0.31H 0.50V 0.50V0.28V 0.22H (0.24H) 0.29H (0.31V) 0.38V (0.38V) 0.50V 0.31H0.31H 0.50V 0.22H 0.28V 0.50V Standard projection position Projected screen height,V Projected screen...
Page 28
28 Obtain the required input modules (sold separately) beforehand in accordance with the system input signal. • Types of input module (sold separately) • Input slot numbers • The signal sources connected to the input modules can each be selected by specifying the respective slot number using the input select buttons on the remote control unit or the projector operating panel. For details on selecting the input source refer to page 40. • Modules other than the optional specified ones cannot be inserted...
Page 29
29 Disconnect the power supply from the projector before installing any of the input modules. Installation procedure Remove the two screws which are holding the slot cover where the input module is to be installed, and then remove the slot cover. Fit the input module into the slot rails, and then push the input module in until it is seated in the connector, while being careful not to bump any of the module components. Tighten the two screws to secure module in place. Remove the slot cover Slot...
Page 30
30 Connecting the input module signal source When setting up the projector, you will need to connect the signal source to an input module according to the type of signal being input. RGB signal input module ET-MD95RGB VGA to BNC adapter cable RGB signal Component signal Video signal input module ET-MD95VM2 Serial digital input module ET-MD95SD1 TMDS input module ET-MD95T Component signal SD signal TMDS signalProjector Personal computer High-definition VCR DVD player VCR (with built-in TBC) Multi...
